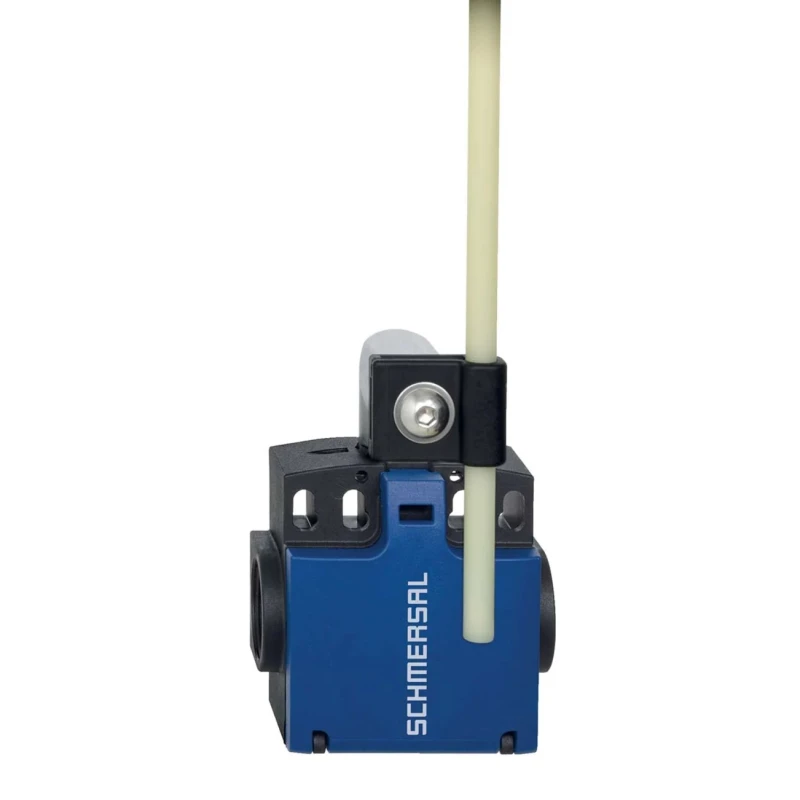

Schmersal PS226-T12-J200 Series Rod Lever J200 Limit Switch, 1 NO/2 NC Contacts, IP67 IP66, Plastic Fibreglass 103015095

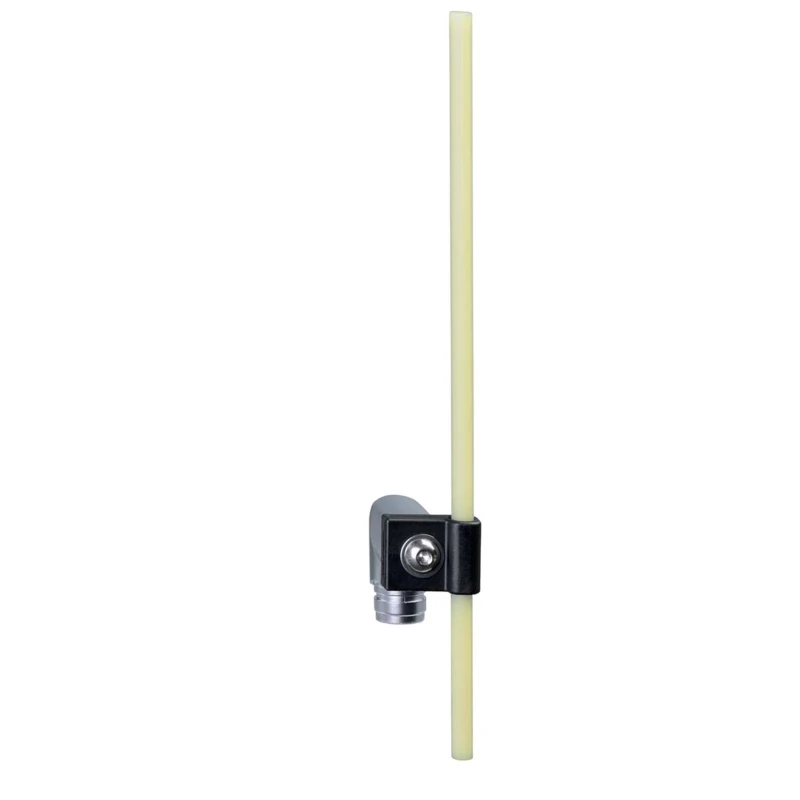

Schmersal brand, model 103015095, presents the PS226-T12-J200 Series rod lever J200 limit switch, designed for industrial automation and control systems. This limit switch features a precise rod lever actuator and robust plastic housing reinforced with fibreglass for enhanced mechanical resilience. It delivers reliable switching performance with 1 normally open (NO) and 2 normally closed (NC) silver contact points.

Rated for switching currents up to 3A, it supports both 24V DC and 240V AC operations, making it versatile for a variety of industrial power supplies. Operating temperature ranges from -30°C to a maximum of 80°C, allowing stable performance under extreme environmental conditions.

The switch incorporates screw terminal connectors ensuring secure wiring connections and is designed with a switching frequency of 5,000 operations per hour and a mechanical life expectancy of 10 million cycles. Its enclosure meets IP66 and IP67 protection standards, offering solid defense against dust and water ingress, making it suitable for demanding industrial environments.

Conduit entries are provided via two M20 x 1.5 threaded ports, facilitating easy installation and wiring within control panels or machinery. The limit switch complies with IEC 60947-5-1 standards and carries certifications including EAC, cULus, and CCC, underscoring its adherence to international safety and quality guidelines.

With a compact footprint measuring 59mm in width and 33mm in length, this device integrates well into constrained spaces. It applies an operating force of 40N to actuate, ensuring reliable mechanical response. The device is manufactured in Germany, representing superior engineering and build quality for automation, machinery, and HVAC control applications.

This limit switch is ideal for industrial automation to control machinery movement and enhance safety systems. Its durable plastic and fibreglass reinforced housing ensures longevity even in harsh manufacturing or outdoor applications.

The contact configuration supports complex control schemes requiring multiple contact states. High mechanical life and protection rating provide confidence for continuous operation in production line environments. Compliance with multiple international certifications supports global deployment and regulatory adherence.
