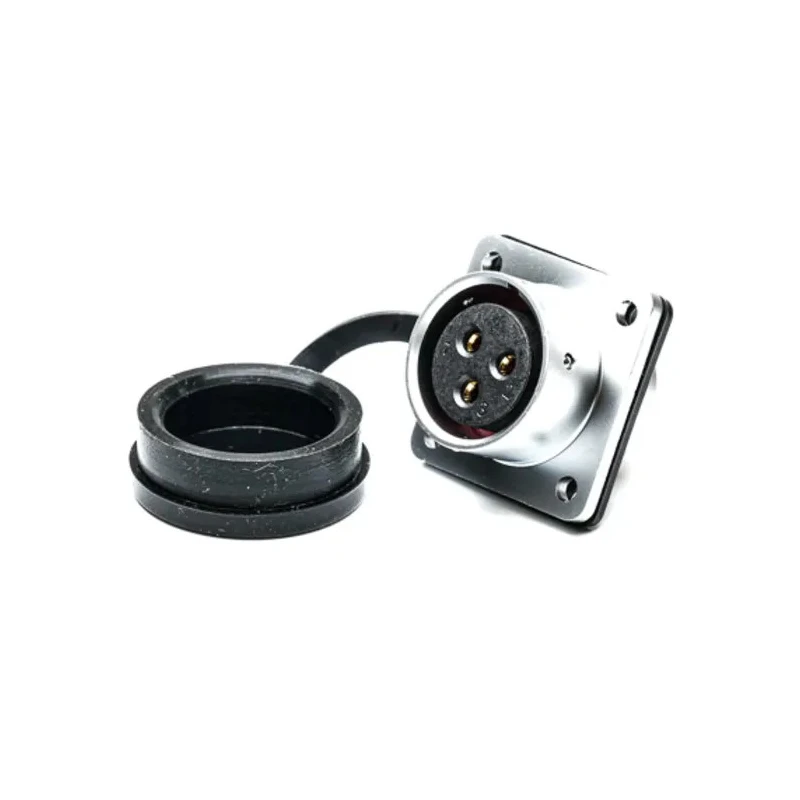

RS PRO Circular Connector M20 Flange Socket, 3 Contacts, Female, Screw Termination, IP67, 10A, 500V 206-5198
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 10A |
| Model | 206-5198 |
| IP Rating | IP67 |
| Mount Type | Flange |
| Housing Material | Chrome Plated Brass |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Screw |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 3 |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Shell Size | 22 mm |
| Mating Type | Push Pull |
| Connector Size | M20 |
| Plug/Socket | Socket |
Key Features
- Constructed with chrome plated brass housing and brass contacts with gold plating for durability.
- Designed for push-pull mating with screw termination to ensure secure connections.
- Rated for 500V voltage and operates within -40°C to 85°C temperature range.
- Suitable for use in medical, communications, and test and measurement equipment.
- Ensures waterproof connection with IP67 rating for harsh industrial environments.
- Easy installation with flange mount type and 22 mm shell size.
- Compatible with cables having outer diameter between 8-12 mm.
Product Description
RS PRO 206-5198 Circular Connector M20 Flange Socket is a high-quality industrial circular connector designed for reliable electrical connections in demanding environments. This flange mount connector features 3 female contacts rated for 10 Amperes and 500 Volts, made with brass contact material plated in gold for excellent conductivity and corrosion resistance. The connector housing is constructed from chrome plated brass to provide enhanced mechanical strength and durability.
Engineered for robust performance, the RS PRO 206-5198 uses a push-pull mating system with screw termination, enabling secure and fast electrical connections suitable for use in medical, communications, test and measurement, and other industrial applications requiring dependable connectivity. It provides an IP67 protection rating, ensuring waterproof and dust-tight connections essential for harsh and outdoor conditions.
The operational temperature range from -40°C to 85°C makes it suitable for a broad range of industrial climates. The connector accommodates cable diameters from 8 to 12 mm and has a 22 mm shell size for compatibility with standard panel cut-outs. The mounting flange design supports ease of installation and panel integration.
Chrome plated brass housing ensures robustness and corrosion resistance. Gold-plated brass contacts for superior electrical conductivity and durability. Push-pull coupling system offers secure and easy mating. Screw termination provides reliable wire connection.
Rated 10A current and 500V voltage for versatile power applications. IP67 rating guarantees waterproof and dust-tight protection. Operational temperature from -40°C to +85°C suitable for harsh environments. M20 connector size with flange mount for straightforward panel integration.
Compatible with cables 8-12 mm in diameter.
This circular connector is ideal for industrial, medical, and communication equipment where secure, waterproof electrical connections are critical. RS PRO's SF2013 series connectors are trusted for performance and reliability in quality-sensitive technical applications.
Explore more Industrial Circular Connectors for your equipment needs at EnvMart. Browse our extensive catalogue to find compatible parts and high-quality connectors from RS PRO and other leading manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RS PRO Circular Connector M20 Flange Socket is rated for 500V.
It has a current rating of 10A.
This model operates within a temperature range of -40°C to 85°C.
It features screw termination for secure wire connections.
It has an IP67 rating, ensuring waterproof and dust-tight protection.
The housing is made of chrome plated brass, and the contacts are brass with gold plating.
The shell size is 22 mm, making it compatible with standard panel cut-outs.
It features 3 female contacts.
This model uses a push-pull mating system for secure connections.
It accommodates cables with an outer diameter between 8 mm and 12 mm.
It is suitable for use in medical, communications, and test and measurement equipment.
The country of origin for this connector is China.
