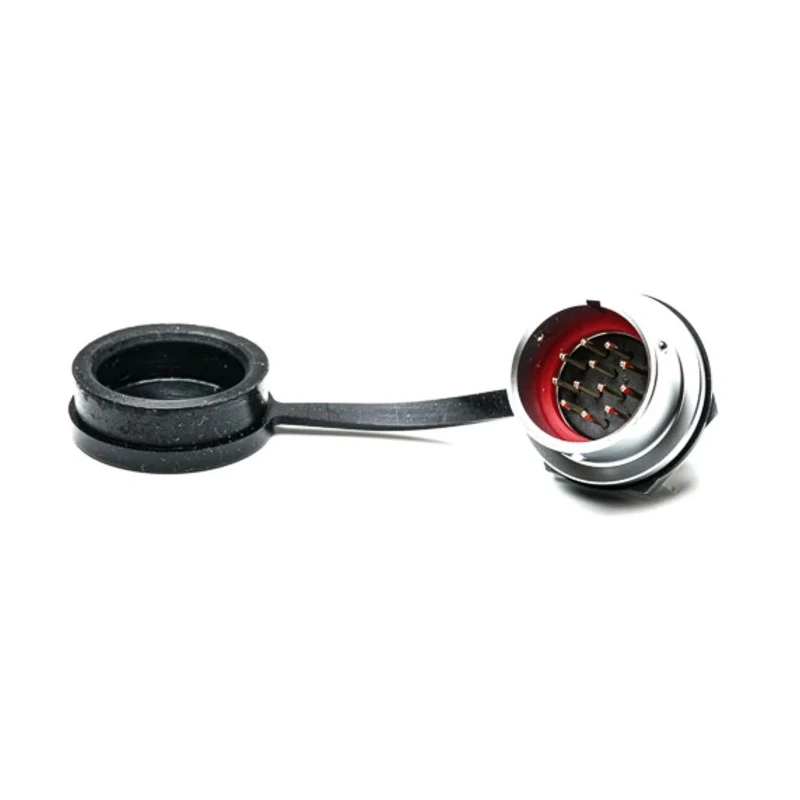

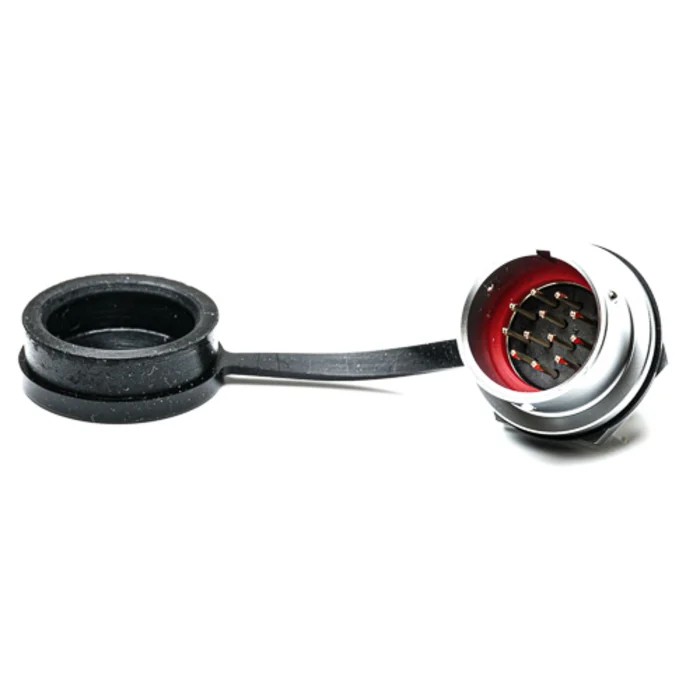

RS PRO Industrial Circular Connector M20, 12 Contacts, Male Socket, Front Mount, IP67, 5A, 400V 206-5161
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 400V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 5A |
| Model | 206-5161 |
| IP Rating | IP67 |
| Mount Type | Front |
| Housing Material | Chrome Plated Brass |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 12 |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shell Size | 22 mm |
| Mating Type | Push Pull |
| Connector Size | M20 |
| Plug/Socket | Socket |
Key Features
- Constructed with chrome plated brass housing for enhanced durability and corrosion resistance.
- Features gold plated brass contacts for reliable electrical conductivity and resistance to wear.
- Solder termination and push-pull mating type for secure and easy installation.
- Supports a temperature range from -40°C to +85°C to withstand industrial environmental conditions.
- Designed for use in medical devices, communication, test, and measurement equipment requiring watertight connections.
- Complies with IP67 rating ensuring dust tight and waterproof performance.
- Shell size of 22 mm and connector size M20 suitable for panel mounting applications.
- Orientation is straight with a front mount type and 12-pole configuration.
Product Description
RS PRO 206-5161 is an industrial-grade circular connector designed with 12 male contacts housed in a durable chrome plated brass shell. This M20 front mount socket connector is engineered for demanding applications requiring secure and waterproof electrical connections, rated at 5A current and 400V voltage.
The stainless chrome plated brass housing provides excellent mechanical strength and corrosion resistance, making it ideal for harsh industrial environments. Gold plating on the brass contacts ensures superior conductivity and longevity even after extensive mating cycles, exceeding 500 cycles.
Termination is via soldering, combined with a push-pull mating system for easy and reliable installation. The connector supports a wide operating temperature range from -40°C to +85°C, making it suitable for various industrial, medical, communications, and test equipment.
Its IP67 rating certifies it as dust tight and waterproof, ensuring protection in challenging environments. The shell diameter is 22 mm with a panel hole cut-out of 20 mm, accommodating cable diameters between 8 to 12 mm. Featuring a straight orientation and front mount design, it is well-suited to applications needing compact, secure connections.
Constructed of chrome plated brass housing for durability and corrosion resistance. Gold plated brass contacts provide excellent conductivity and wear resistance. Solder termination with push-pull mating for secure and easy installation.
High IP67 rating ensures dust and waterproof performance in tough environments. Wide temperature range operation from -40°C to +85°C. Supports 5A current and 400V voltage for reliable electrical performance. Ideal for industrial, medical, communication, and test & measurement equipment.
The RS PRO 206-5161 circular connector is a premium solution for creating robust, watertight electrical connections in industrial applications. Browse additional Industrial Circular Connectors at EnvMart for compatible accessories and variants.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a voltage of 400V.
It supports a current capacity of 5A.
It has an IP67 rating, ensuring it is dust tight and waterproof.
The housing is made of chrome plated brass, and the contacts are gold plated brass.
It operates within a temperature range of -40°C to +85°C.
This connector features 12 male contacts.
It uses solder termination for secure connections.
The shell size is 22 mm, suitable for panel mounting applications.
It employs a push-pull mating system for easy and reliable installation.
The connector has a straight orientation and is designed for front mounting.
It is designed for use in medical devices, communication, and test and measurement equipment.
The connector size is M20, accommodating cable diameters between 8 to 12 mm.
