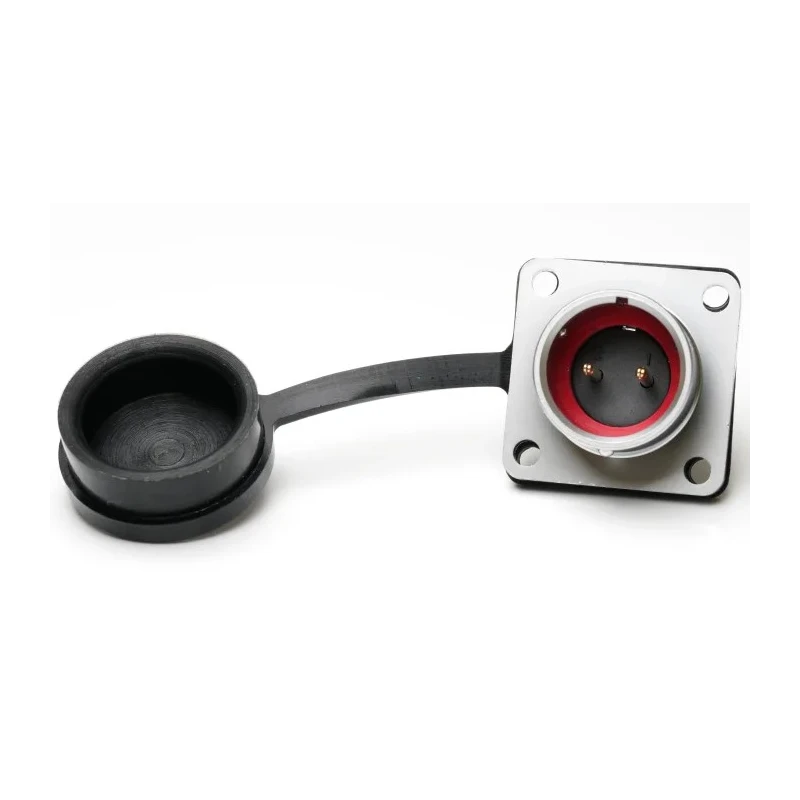

RS PRO Industrial Circular Connector 2 Contacts Flange M16 Socket Male 10A 500V IP67 206-5103
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 10A |
| Model | 206-5103 |
| IP Rating | IP67 |
| Mount Type | Flange |
| Housing Material | Chrome Plated Brass |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 2 |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shell Size | 18.4 mm |
| Mating Type | Push Pull |
| Connector Size | M16 |
| Plug/Socket | Socket |
Key Features
- The connector features a push-pull coupling system for secure and easy mating.
- Constructed with chrome plated brass housing for durability and corrosion resistance.
- Gold-plated brass contacts ensure reliable electrical connectivity.
- Suitable for use in harsh environments with an operating temperature range from -40°C to 85°C.
- Designed for panel mount installation with a 16 mm panel hole cut-out.
- Provides waterproof performance with IP67 rating for protection against dust and water ingress.
- Compatible with cable outer diameters ranging from 5-8 mm and 8-12 mm with solder termination.
- Applications include medical devices, communications, test and measurement equipment needing secure waterproof connections.
Product Description
RS PRO 206-5103 industrial circular connector is a 2-contact flange mount socket designed for robust and waterproof applications. It features an M16 connector size with a push-pull coupling system and is rated for 10A current and 500V operating voltage. This connector is manufactured with chrome plated brass housing and gold-plated brass contacts ensuring durability and excellent electrical conductivity under demanding conditions.
With an IP67 rating, the connector is fully sealed against dust and water ingress, making it suitable for industrial, medical, communication, test, and measurement equipment requiring reliable waterproof and rugged connectivity. The temperature range from -40°C to 85°C supports use in varied environmental conditions.
This male socket connector mounts via a square flange with a panel cut-out size of 16 mm and supports solder termination for secure wiring connections. Compatibility with cable diameters of 5-8 mm and 8-12 mm allows versatile cable options. The industrial design ensures 500 mating cycles, providing long-lasting performance in critical applications.
The connector employs a push-pull coupling system for quick and secure mating. Chrome plated brass housing offers robust mechanical strength and corrosion resistance. Gold-plated brass contacts deliver reliable and low resistance electrical performance.
IP67 rating certifies waterproof and dust-tight construction for harsh environments. Operating temperature covers extreme ranges from -40°C to 85°C. Designed for panel mount with flange installation and 16 mm cut-out dimension.
Supports a current of up to 10A with voltage rating of 500V. Solder termination type ensures a fixed and secure cable connection.
These RS PRO SF1613 series connectors are widely used in industrial instrumentation, medical devices, communication systems, and test and measuring equipment. Their robust design and reliable waterproof characteristics make them ideal for customized connector systems where performance and safety are critical.
Choose RS PRO Industrial Circular Connectors for secure, durable, and high-quality electrical connections in demanding industrial environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a maximum current rating of 10A.
The connector is rated for a voltage of 500V.
It has an IP67 rating, providing protection against dust and water ingress.
The operating temperature range is from -40°C to 85°C.
The housing is made of chrome plated brass, and the contacts are gold-plated brass.
It uses solder termination for secure wiring connections.
The connector requires a panel cut-out size of 16 mm for installation.
It is compatible with cable outer diameters ranging from 5-8 mm and 8-12 mm.
This connector features 2 contacts.
It employs a push-pull coupling system for quick and secure mating.
It is suitable for applications in medical devices, communications, and test and measurement equipment that require secure waterproof connections.
The shell size of this model is 18.4 mm.
