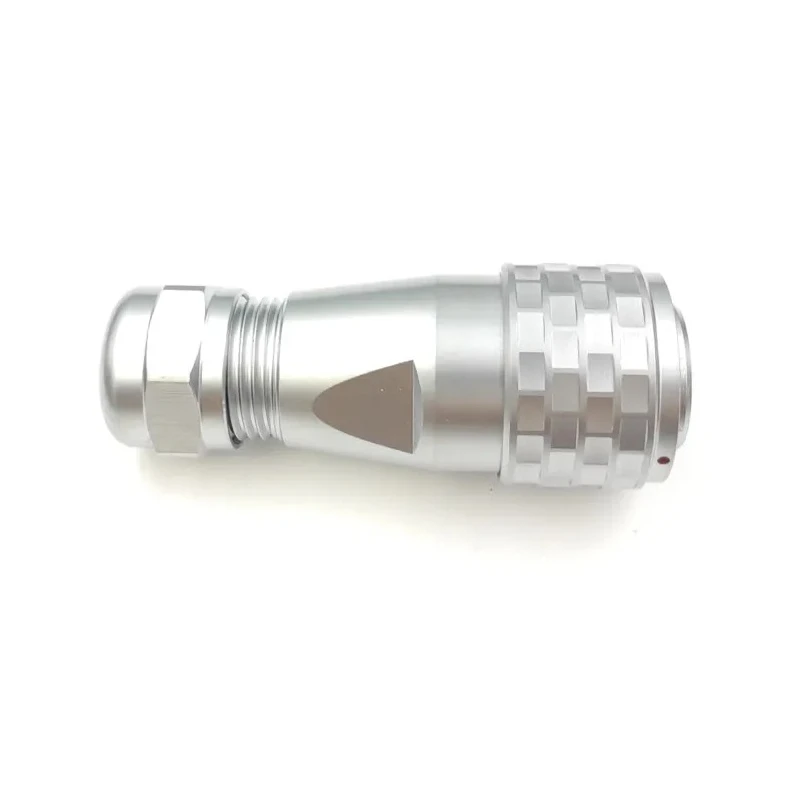

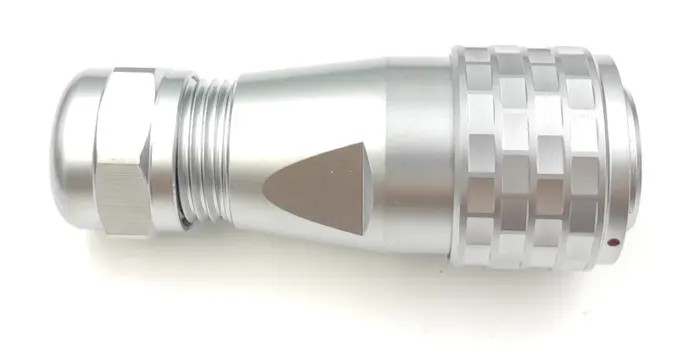

RS PRO Circular Connector, 4 Contacts, Cable Mount, M16 Size, Plug Female, IP67 Rated, 5A, 500V, Push Pull Coupling 206-5066
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 5A |
| Model | 206-5066 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Chrome Plated Brass |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 4 |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Shell Size | 22.5 mm |
| Mating Type | Push Pull |
| Connector Size | M16 |
| Plug/Socket | Plug |
Key Features
- The connector features a push-pull coupling system for ease of installation and reliable connection.
- It is designed as a female plug with 4 brass contacts plated in gold.
- The housing is made from chrome plated brass offering durability and resistance.
- It supports a current rating of 5A and voltage up to 500V for robust power or data transmission.
- The connector has a cable mount with solder termination and an M16 size shell of 22.5 mm diameter.
- Operating temperature ranges from -40°C to 85°C, suitable for demanding industrial environments.
- This connector is suitable for medical, communications, test and measurement applications requiring waterproof and secure connections.
Product Description
RS PRO 206-5066 Circular Connector is a premium 4-contact cable mount connector designed to meet industrial quality and performance standards. The M16 size female plug adopts a push-pull coupling system ensuring a fast and secure connection rated IP67, making it waterproof and dustproof.
This connector is constructed from robust chrome plated brass housing and features gold-plated brass contacts to ensure high conductivity and corrosion resistance. It supports a current rating of 5A and works safely up to 500V, making it suitable for both data and power transmission in demanding environments.
The connector is designed for easy solder termination on cables with outer diameters ranging from 5 to 8 mm or 8 to 12 mm, depending on wiring requirements. Its operation temperature range between -40°C and 85°C enables use across a wide variety of industrial, medical, telecommunications, and test & measurement applications.
The RS PRO SF1610 series cable mount connectors offer high reliability with 500 mating cycles and 2000 MΩ insulation resistance for enhanced safety and performance. The connector features a push-pull locking mechanism for quick and secure cable coupling.
Mating type is configured as plug with female contact gender, suitable for creating custom connector systems. The durable chrome plated brass shell and gold-plated contacts maximize the connector's longevity and electrical integrity.
Its compact M16 shell size (22.5 mm diameter) facilitates versatile mounting options. The high IP67 rating ensures protection against ingress from dust and water immersion. Operating temperature range and electrical ratings make it ideal for harsh industrial conditions.
It is compatible with a range of cable diameters and wire sizes to accommodate various installation needs. Package contents include one RS PRO SF1610 series cable mount circular connector, model 206-5066, ready for integration into your customized systems.
This connector is manufactured in China and supplied new, meeting high standards of quality and reliability. It is an excellent choice for professional industrial and commercial applications requiring dependable, sealed circular connectors.
Explore more RS PRO connectors and circular connector solutions in EnvMart’s comprehensive industrial electrical components catalog.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a current rating of 5A and a voltage rating of up to 500V, making it suitable for robust power or data transmission.
The RS PRO 206-5066 has an IP67 rating, ensuring it is waterproof and dustproof, which is essential for demanding industrial environments.
It operates within a temperature range of -40°C to 85°C, allowing for use in various industrial and environmental conditions.
The housing is made from chrome plated brass, and it features gold-plated brass contacts to enhance conductivity and corrosion resistance.
This model has a shell size of M16, with a diameter of 22.5 mm, facilitating versatile mounting options.
The connector features 4 contacts, configured as a female plug for ease of connection.
It uses solder termination, which is suitable for cables with outer diameters ranging from 5 to 12 mm, depending on wiring requirements.
The mating type is push-pull, which ensures a fast and secure connection when coupling.
This connector is rated for 500 mating cycles, providing a reliable connection over time.
It is suitable for applications in medical, communications, test, and measurement fields, where waterproof and secure connections are required.
The insulation resistance is rated at 2000 MΩ, enhancing safety and performance in various applications.
This connector is manufactured in China, meeting high standards of quality and reliability for industrial use.
