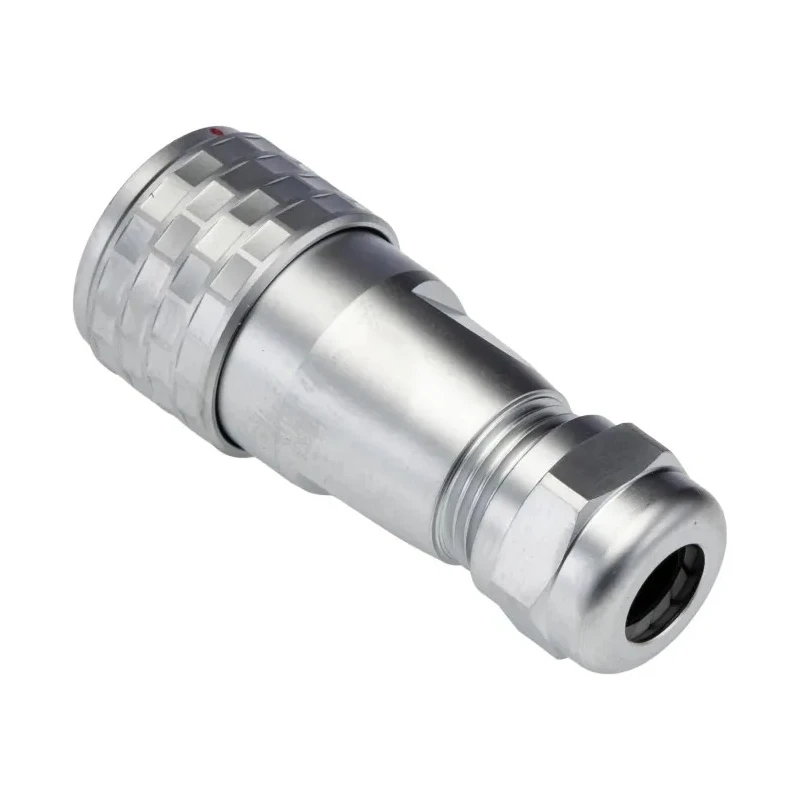

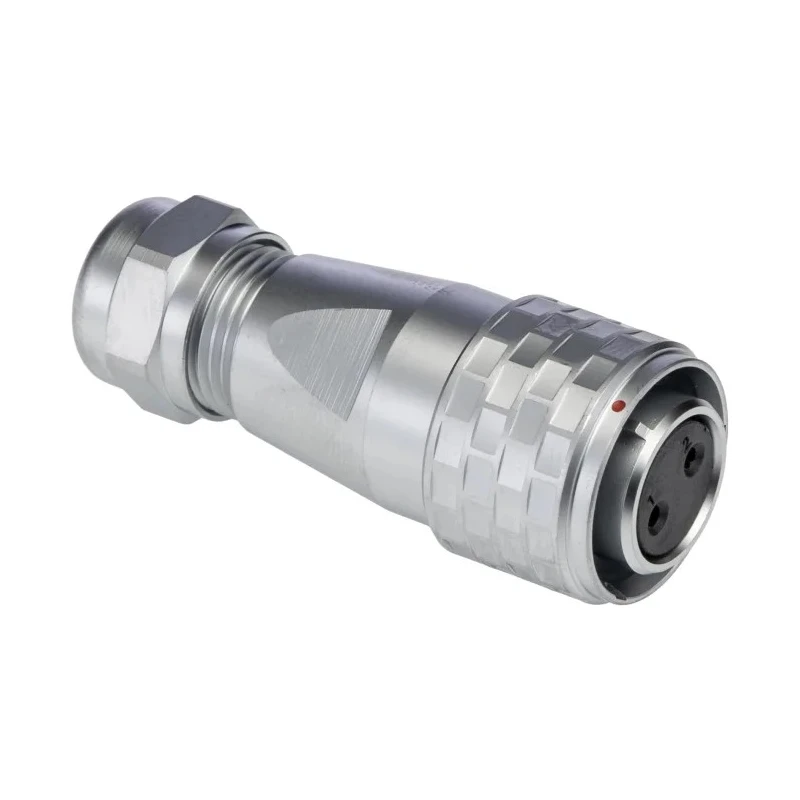

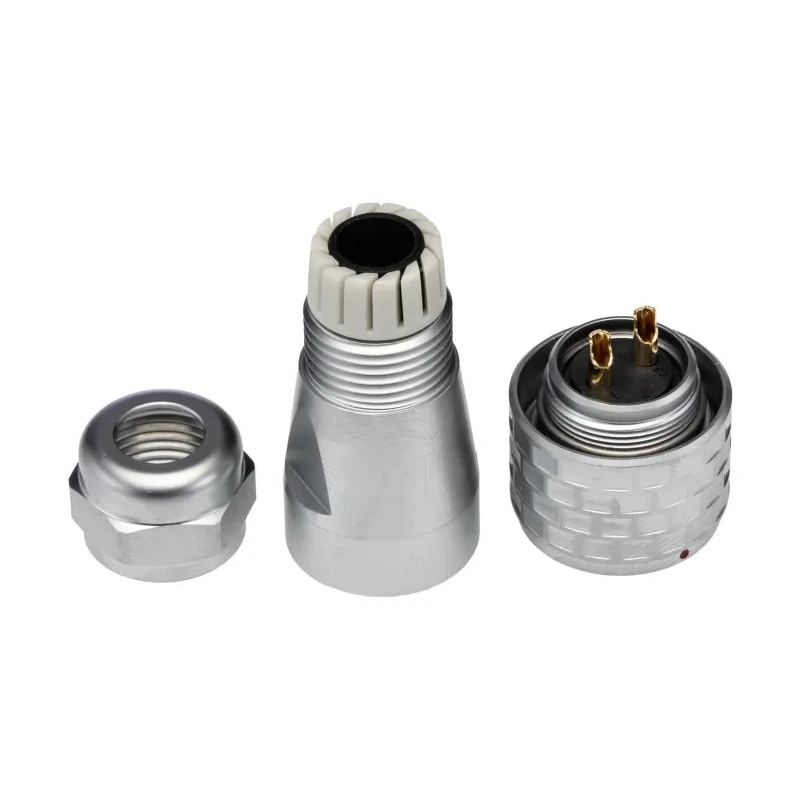

RS PRO Circular Connector Cable Mount Plug Female 2 Contacts M16 Connector IP67 500V 10A 206-5063
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 10A |
| Model | 206-5063 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Chrome Plated Brass |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 2 |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Shell Size | 22.5 mm |
| Mating Type | Push Pull |
| Connector Size | M16 |
| Plug/Socket | Plug |
Key Features
- This M16 size connector supports a voltage rating of 500V and a current rating of 10A.
- The plug is female gender with solder termination ensuring secure electrical connection.
- Constructed with chrome plated brass housing and gold plated brass contacts.
- Features a push-pull mating type and provides IP67 waterproof rating for harsh environments.
- Operates reliably in temperatures ranging from -40°C to 85°C.
- Ideal for use in medical, communications, and test & measurement applications.
- Designed for cable mount installation with a straight orientation.
- Supports multiple mating cycles up to 500 for durable performance.
Product Description
RS PRO 206-5063 Circular Connector Cable Mount Plug Female 2 Contacts M16 Connector IP67 500V 10A is a high-quality industrial circular connector designed for secure waterproof connections in demanding environments.
Made from chrome plated brass housing with gold plated brass contacts, this connector ensures excellent electrical conductivity and corrosion resistance.
It supports a voltage of up to 500V and a current capacity of 10A, suitable for power and signal transmission in medical devices, communication systems, and test & measurement equipment.
The push-pull coupling system offers quick and reliable mating with a straight orientation for cable mount installation. Solder termination type secures wire connections firmly to the contacts.
With an IP67 rating, this connector provides protection against dust ingress and water immersion up to 1 meter, making it ideal for harsh industrial or outdoor conditions.
Operating temperature ranges from -40°C to 85°C allow use in extreme climates. The connector supports 500 mating cycles, ensuring long-term durability and reliable mechanical performance.
The connector is part of the RS PRO SF1610 series known for high performance and is made in China under RS PRO's strict quality standards. This M16 cable mount plug connector features 2 female contacts rated at 10A and 500V.
Chrome plated brass housing with gold plated brass contacts enhances durability and conductivity. Push-pull coupling mechanism simplifies connection and disconnection procedures. Rated IP67 for water and dust resistance to sustain industrial applications.
Solder termination facilitates strong and stable wiring connections. Supports operation between -40°C and 85°C for versatile environment use. Suitable for medical, communication, and test & measurement applications. Ensures up to 500 mating cycles for prolonged connector lifespan.
Explore more high-quality circular connectors and equipment at EnvMart to suit your specialized industrial needs.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a voltage rating of 500V and a current rating of 10A, making it suitable for power and signal transmission.
It features a solder termination type, which ensures a secure electrical connection by firmly attaching wires to the contacts.
The connector has an IP67 rating, providing protection against dust ingress and water immersion up to 1 meter, suitable for harsh environments.
It operates reliably in temperatures ranging from -40°C to 85°C, allowing for use in extreme climates.
This connector supports up to 500 mating cycles, ensuring long-term durability and reliable mechanical performance.
The housing is made of chrome plated brass, and the contacts are gold plated brass, enhancing both conductivity and corrosion resistance.
It is designed for cable mount installation with a straight orientation, facilitating easy setup and connection.
This connector is classified as an M16 size, with a shell size of 22.5 mm.
It is ideal for use in medical, communications, and test & measurement applications due to its robust design and specifications.
It features a push-pull mating type, which simplifies the connection and disconnection process.
This model has 2 female contacts, which are suitable for various electrical connections.
The connector is manufactured in China under RS PRO's strict quality standards.
