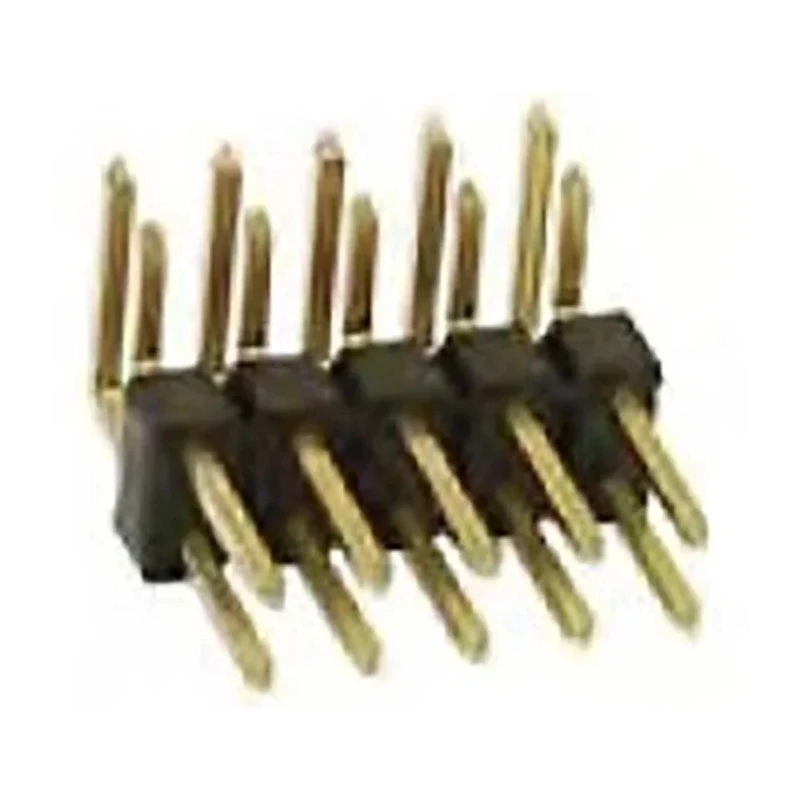

Amphenol Communications Solutions EconoStik Series Right Angle Through Hole Pin Header 6 Contacts 2.54 mm 10129382-906003BLF

Amphenol Communications Solutions 10129382-906003BLF EconoStik Series Right Angle Through Hole Pin Header provides reliable and precise board-to-board connectivity. The connector features 6 male contacts arranged in two rows with a 2.54 mm pitch, housed in robust high-temperature thermoplastic material ensuring durability in demanding industrial environments.

The pin header contacts are made of brass with 1μin gold plating, enhancing conductivity and resisting corrosion. Designed for through-hole mounting, the header supports a current of up to 3A and a voltage rating of 1500V, accommodating various electronic circuit requirements.

Operating across a temperature range from -55°C to 105°C, the connector is suitable for applications such as industrial control systems, test and measurement equipment, metering devices, point of sale machines, set-top boxes, surveillance systems, and vending machines.

Additional features include custom polarization options, high-temperature thermoplastic housing, and tested durability for 50 mating cycles. The right angle orientation supports compact PCB layouts, optimizing space without compromising connection integrity.

Features 6 male contacts spaced at 2.54 mm pitch for reliable signal integrity. Constructed with high-temperature thermoplastic housing for durability. Gold plating on contacts ensures excellent conductivity and corrosion resistance.

Right angle orientation suitable for compact PCB designs and efficient space utilization. Supports through-hole mounting method for secure mechanical and electrical connection. Rated for maximum operating temperature of 105°C and minimum of -55°C for wide environmental tolerance.

Accepts up to 3A current with a voltage rating of 1500V for robust electrical performance. Mating pin length of 8.08 mm facilitates secure connections in various electronic assemblies. Compliant with RoHS standards and lead-free to meet environmental regulations.

Ideal for applications including industrial controls, test equipment, metering devices, and POS machines.

This product represents a high-quality, dependable solution for electronics manufacturing, combining excellent material construction and precise mechanical design. EnvMart’s PCB Headers category offers a wide selection of such connectors to support your specific industrial and commercial electronic assembly needs.
