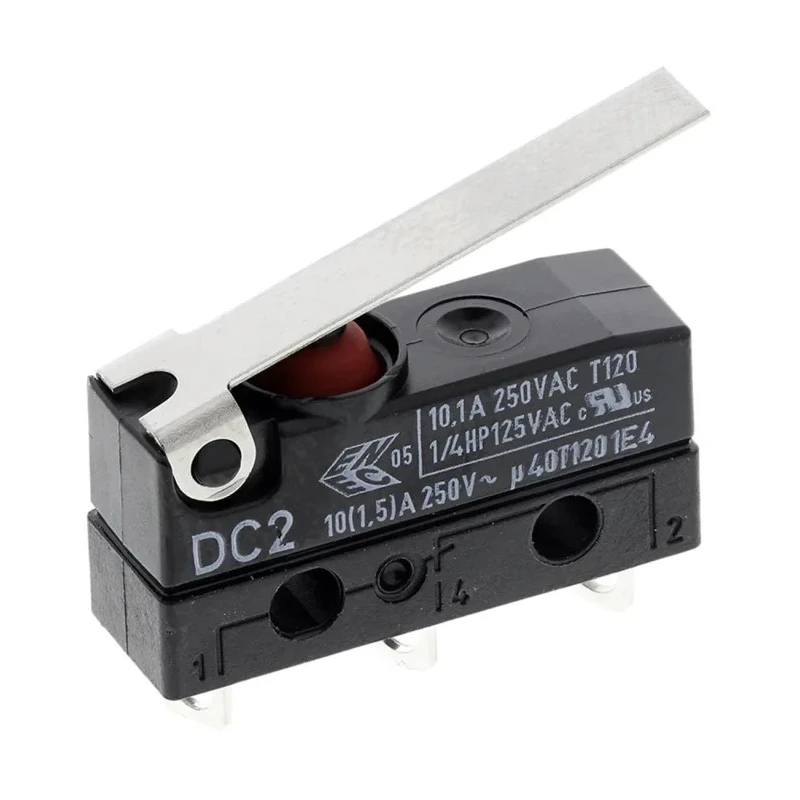

ZF Hinge Lever Micro Switch, Solder Terminal, 10.1A, 250 V ac, SPDT, IP6K7 DC2C-A1LC
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | ZF |
| Dimensions | H11.65 x W20 x D6.5mm |
| Model | DC2C-A1LC |
| IP Rating | IP6K7 |
| Housing Material | Polyethylene Terephthalate, Polybutylene Terephthalate |
| Series | DC |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | SPDT |
| Actuator Type | Hinge Lever |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Contact Current | 10.1A |
| Operating Force | 1.18N |
| Mechanical Life | 1000000Operations |
| Contact AC Voltage | 250V ac |
| Microswitch Type | DC Subminiature |
| ZF Hinge Lever Micro Switch, Solder Terminal, 10.1 A @ 250 V ac, SPDTBrand | ZF |
Key Features
- The switch uses a solder terminal for reliable electrical connection.
- Housing materials include Polyethylene Terephthalate and Polybutylene Terephthalate for durability.
- It has an IP6K7 rating ensuring protection against dust and water ingress.
- Operates with a force of 1.18 Newtons for precise actuation.
- Wide operating temperature range from -40°C to 120°C suits various environments.
- Mechanical life rated for 1,000,000 operations, ensuring long-term reliability.
- Suitable for industrial, laboratory, and automation control systems.
- Manufactured in Germany, compliant with RoHS standards.
Product Description
ZF DC2C-A1LC is a high-performance hinge lever micro switch featuring solder terminals designed for precise electrical control in automation, electronics, and industrial equipment.
This micro switch supports a contact current of 10.1A at 250 V ac and adopts a SPDT (Single Pole Double Throw) contact configuration, making it versatile for various switching applications requiring dependable contact operation.
The robust housing materials, Polyethylene Terephthalate (PET) and Polybutylene Terephthalate (PBT), provide excellent mechanical and thermal resistance, complemented by an IP6K7 protection rating to withstand harsh environments with dust and water exposure.
Operating force is low at 1.18 Newtons, facilitating sensitive actuation with minimal effort, coupled with an extensive operating temperature range from -40°C up to 120°C, supporting demanding industrial and laboratory conditions.
The switch guarantees exceptional durability with a mechanical life expectancy of 1 million operations, ensuring reliability in repetitive use cases. Its compact form factor of 11.65mm height, 20mm width, and 6.5mm depth allows integration into space-constrained applications.
Manufactured in Germany and compliant with RoHS directives, it aligns with stringent environmental and safety standards. Typical uses include electrical and automation systems, industrial machinery control, laboratory instruments, and HVAC controls, providing a dependable switching solution.
The switch uses a solder terminal for reliable electrical connection. Housing materials include Polyethylene Terephthalate and Polybutylene Terephthalate for durability. It has an IP6K7 rating ensuring protection against dust and water ingress.
Operates with a force of 1.18 Newtons for precise actuation. Wide operating temperature range from -40°C to 120°C suits various environments. Mechanical life rated for 1,000,000 operations, ensuring long-term reliability.
Compact dimensions: Height 11.65mm, Width 20mm, Depth 6.5mm for flexible installation. Suitable for industrial, laboratory, and automation control systems. Manufactured in Germany, compliant with RoHS standards. Explore the wide range of Micro Switches at EnvMart for industrial-grade automation and control products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact current for this micro switch is 10.1A at 250 V ac.
It has an IP6K7 rating, ensuring protection against dust and water ingress.
The mechanical life of this micro switch is rated for 1,000,000 operations, ensuring long-term reliability.
The dimensions of the switch are 11.65mm in height, 20mm in width, and 6.5mm in depth.
It operates within a wide temperature range from -40°C to 120°C.
This model uses solder terminals for reliable electrical connection.
The actuator type of this micro switch is a hinge lever.
The housing materials include Polyethylene Terephthalate (PET) and Polybutylene Terephthalate (PBT).
It is compliant with RoHS standards, aligning with environmental and safety regulations.
The operating force required for actuation is 1.18 Newtons.
This model features a Single Pole Double Throw (SPDT) contact configuration.
It is suitable for various applications including industrial machinery control, laboratory instruments, and HVAC controls.
