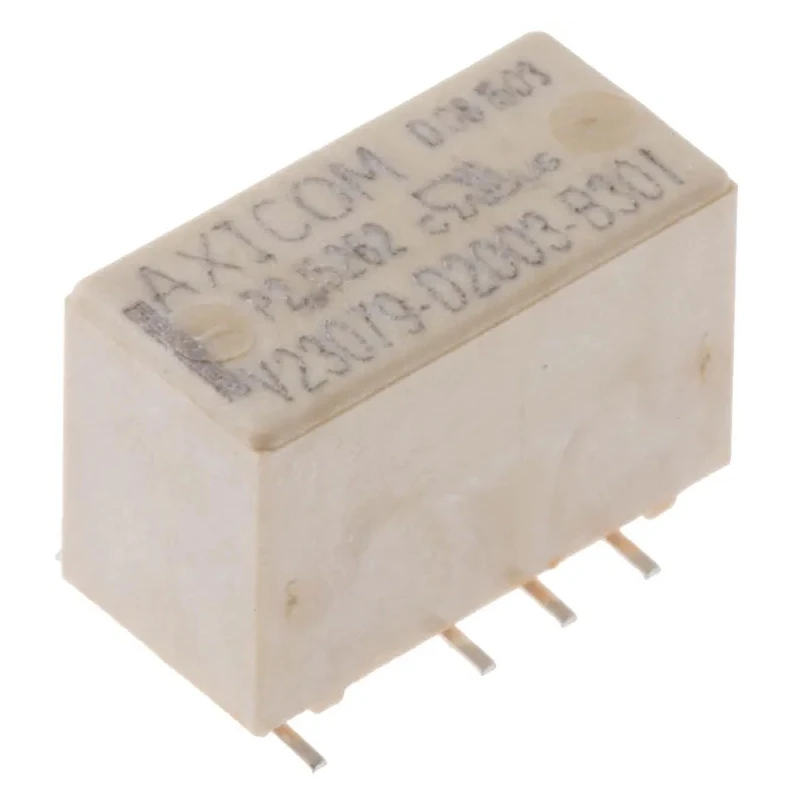

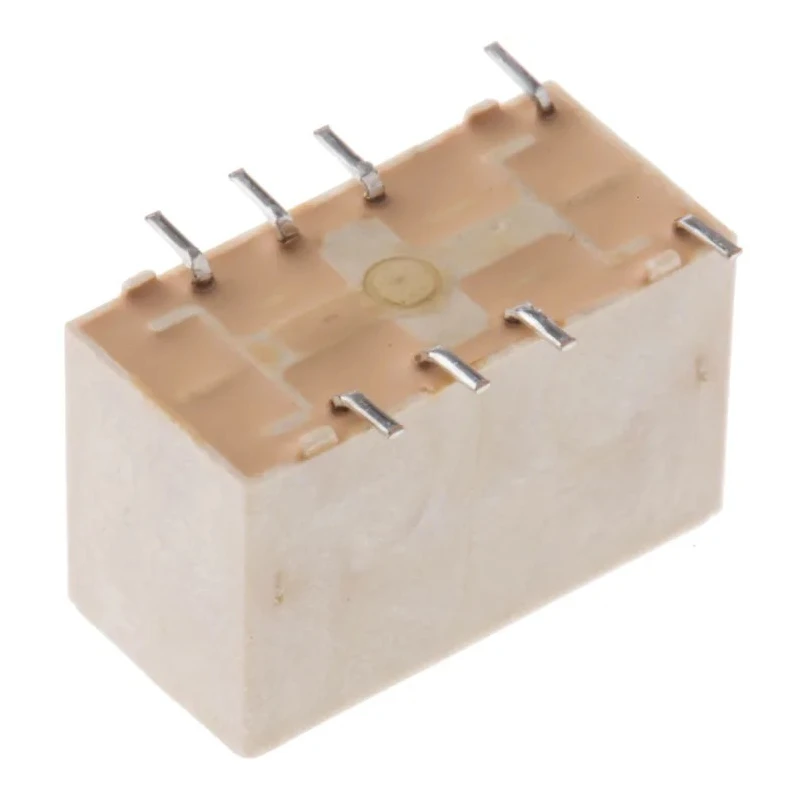

TE Connectivity PCB Signal Relay 12V dc Coil 2A DPDT Axicom P2 V23079-D2003-B301

TE Connectivity V23079-D2003-B301 PCB Signal Relay is a high-quality signal relay from the Axicom P2 series designed for reliable switching in a compact footprint. It features a 12V dc coil voltage and a 2 Ampere Double Pole Double Throw (DPDT) contact configuration with gold plated bifurcated silver nickel contacts ensuring durable and low resistance connections. This relay is intended for PCB mounting, with surface mount terminals optimizing assembly processes.

The relay’s low coil power consumption of 140mW and high sensitivity make it energy efficient. The device operates reliably in harsh environments with an extensive operating temperature range from -40°C to +85°C. It is immersion cleanable and has a V-0 flammability classification, complying with RTIII and IP67 standards.

This signal relay also boasts high insulation resistance exceeding 10^9 Ω at 500Vdc and surge capability meeting Telcordia TR-NWT-001089 and IEC 60950 standards. Typical applications include telecommunications equipment such as PABX and VOIP systems, consumer electronics like set-top boxes and HiFi equipment, as well as use in office, control, medical, and automotive systems.

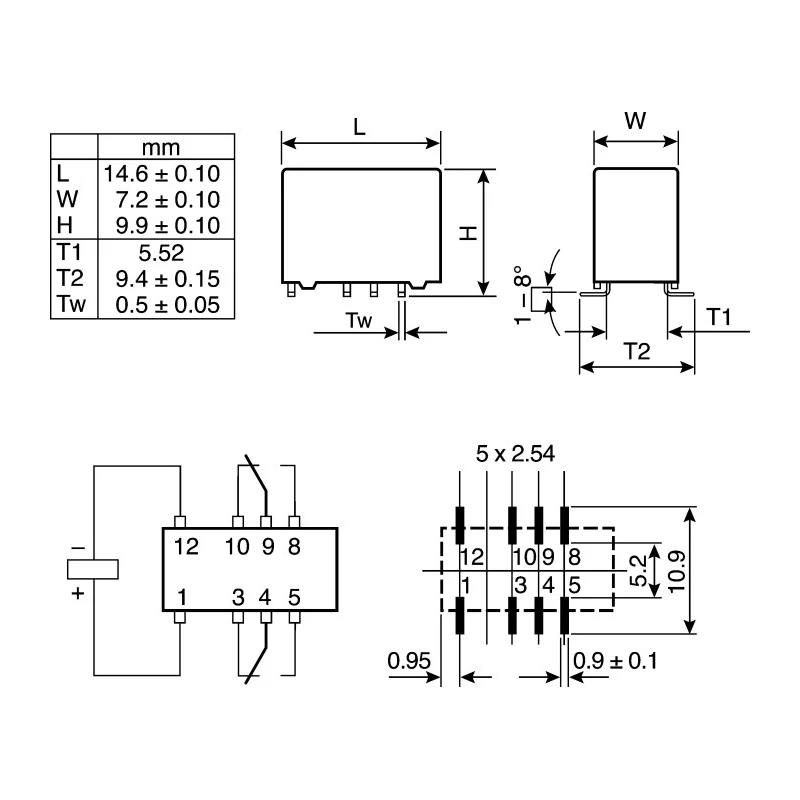

The compact dimensions of 14.5 mm length, 7.4 mm width, and 10.4 mm height make it suitable for space-constrained circuit designs. The relay is RoHS and REACH compliant, in line with current environmental regulations. It is manufactured in the Czech Republic, ensuring European quality standards.

Equipped with a 12V dc coil voltage suitable for PCB mounting. Double Pole Double Throw (DPDT) contact arrangement with gold plated contacts. Switching current rating of 2 Amperes with switching voltages up to 250V AC and 220V DC.

Compact slimline design measuring 14.5mm by 7.4mm by 10.4mm, with surface mount terminals. High sensitivity monostable coil with low power consumption of 140mW. Operating temperature range from -40°C to 85°C for robust industrial use.

Immersion cleanable, V-0 flammability classification, and high insulation resistance. Suitable for communications, consumer electronics, office, control, medical, and automotive applications. Compliant with RoHS and REACH standards, ensuring environmental safety.
