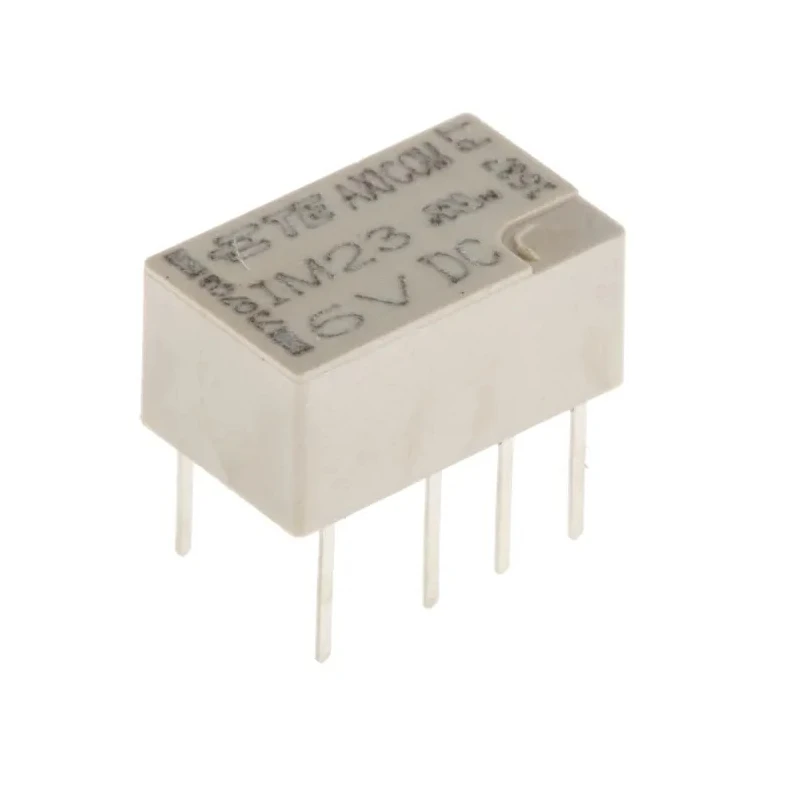

TE Connectivity PCB Signal Relay 5V dc Coil, 2A, DPDT, IM23TS 3-1462039-0
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 5.65mm |
| Length | 10mm |
| Model | IM23TS 3-1462039-0 |
| Width | 6mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 500Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 50mW |
Key Features

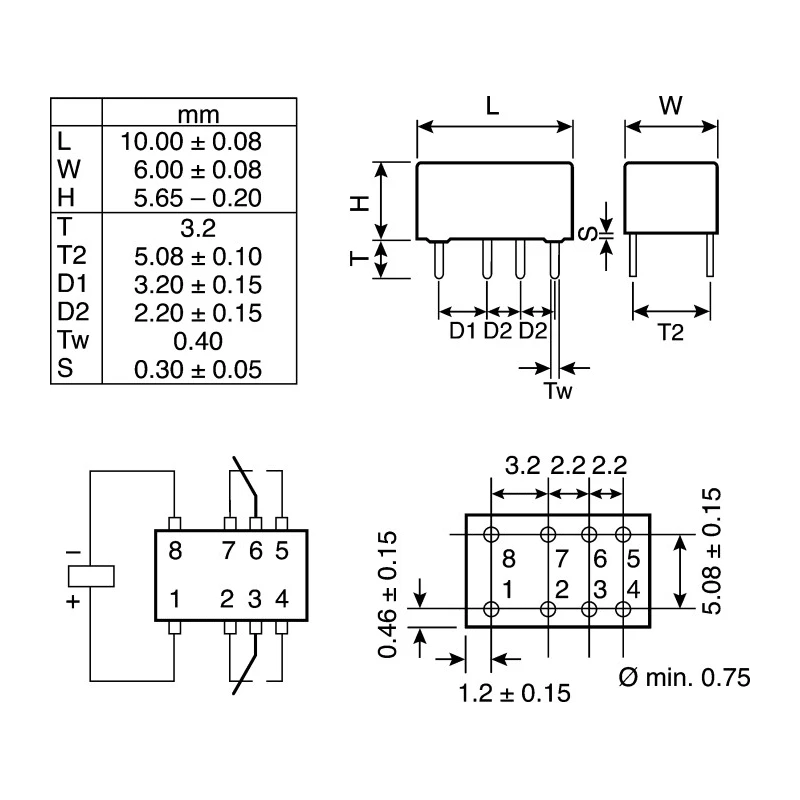

- Compact slimline design with dimensions 10x6x5.65 mm for minimal PCB space usage.
- Gold plated bifurcated contacts ensure reliable conductivity and long contact life.
- Hermetically sealed with IP67 rating for enhanced durability and environmental protection.
- Operates efficiently with low coil power consumption of 50mW for ultra high sensitive version.
- High mechanical shock resistance up to 300G functional and 500G survival for industrial robustness.
- High surge capability meeting Telcordia GR 1089, FCC Part 68, and ITU-T K20,21,45 standards.
- Suitable for telecommunication, optical network terminals, office equipment, medical devices, and automotive applications.
- Rated for 250V AC and 220V DC switching voltage with a 2A switching current capacity.
Product Description
TE Connectivity IM23TS 3-1462039-0 PCB Signal Relay is a high-performance electrical component featuring a 5V dc coil voltage and DPDT contact configuration. It offers a compact slimline profile of 10 mm length, 6 mm width, and 5.65 mm height, enabling efficient PCB mounting in crowded circuits. Designed for reliable signal switching, this relay supports a switching current of 2A with switching voltages up to 250V AC and 220V DC, suitable for a variety of industrial and commercial applications.
The relay includes gold plated bifurcated contacts that provide excellent conductivity and resistance to corrosion, ensuring consistent electrical performance. It is hermetically sealed with an IP67 rating, protecting internal components from dust and moisture, making it suitable for harsh environments. The coil power consumption is as low as 50mW for the ultra high sensitive version, contributing to energy-efficient operation.
Built to withstand severe mechanical shocks of up to 300G functional and 500G survival, this relay guarantees durability in demanding conditions. Additionally, it meets stringent surge capability standards including Telcordia GR 1089, FCC Part 68, and ITU-T K20,21,45, enhancing its reliability against electrical disturbances.
Typical applications cover telecommunication equipment, optical network terminals, office and test instrumentation, medical devices, and automotive systems, illustrating its versatility across sectors. The PCB mount type with solder terminals facilitates secure and stable integration on circuit boards.
Compliance with RoHS standards attests to its environmentally responsible manufacturing. Compact slimline design with minimal board footprint. Gold plated bifurcated contacts for longevity and performance. Hermetically sealed with IP67 for environmental protection.
Low coil power for efficient operation. High mechanical shock resistance for industrial applications. Meets surge capability standards for signal integrity. Versatile usage in telecommunications, medical, automotive, and office equipment.
PCB mount with solder terminals for secure installation. Explore a wide range of Signal Relays and electrical components at EnvMart to find reliable solutions for your electronic designs and industrial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 2A.
The relay has dimensions of 10 mm in length, 6 mm in width, and 5.65 mm in height.
It operates with a coil voltage of 5V dc.
This relay features a DPDT (Double Pole Double Throw) contact configuration.
The maximum operating temperature is 85°C.
The relay is rated for a switching voltage of 250V AC and 220V DC.
This model has solder terminals for secure PCB mounting.
It meets RoHS standards and has surge capability compliance with Telcordia GR 1089, FCC Part 68, and ITU-T K20,21,45.
It has a mechanical shock resistance of up to 300G functional and 500G survival.
This relay is suitable for telecommunication, optical network terminals, office equipment, medical devices, and automotive applications.
