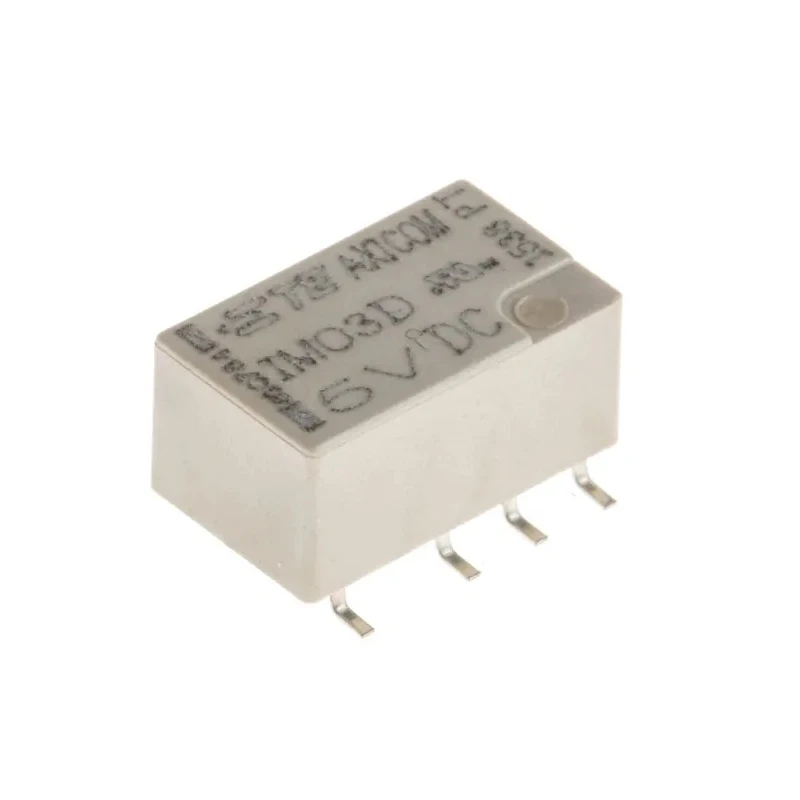

TE Connectivity PCB Power Relay 5V DC Coil, 5A Switching Current, DPDT Contact Configuration, Surface 9-1462038-9 IM03DGR

TE Connectivity 9-1462038-9 IM03DGR PCB Power Relay is a high-performance DPDT relay operating at a 5V DC coil voltage and capable of switching 5A current. It is designed for industrial, laboratory, and electronic PCB applications requiring reliable power relay solutions.

This relay features a surface mount PCB mount type with gull wing SMT legs, making it suitable for automated assembly and compact PCB layouts. The bifurcated gold plated contacts provide excellent conductivity and durability, ensuring long operational life and minimal signal loss.

The hermetically sealed relay construction provides IP67 ingress protection, making the relay highly resistant to dust, moisture, and vibration, and able to withstand mechanical shocks up to 300G functional and 500G survival. This ensures robust performance in demanding industrial environments.

Operating over a temperature range from -40°C to 85°C, it is designed to work reliably across a wide range of harsh conditions. The coil resistance of 178Ω and coil power consumption of 140mW contribute to energy efficiency, minimizing heat generation.

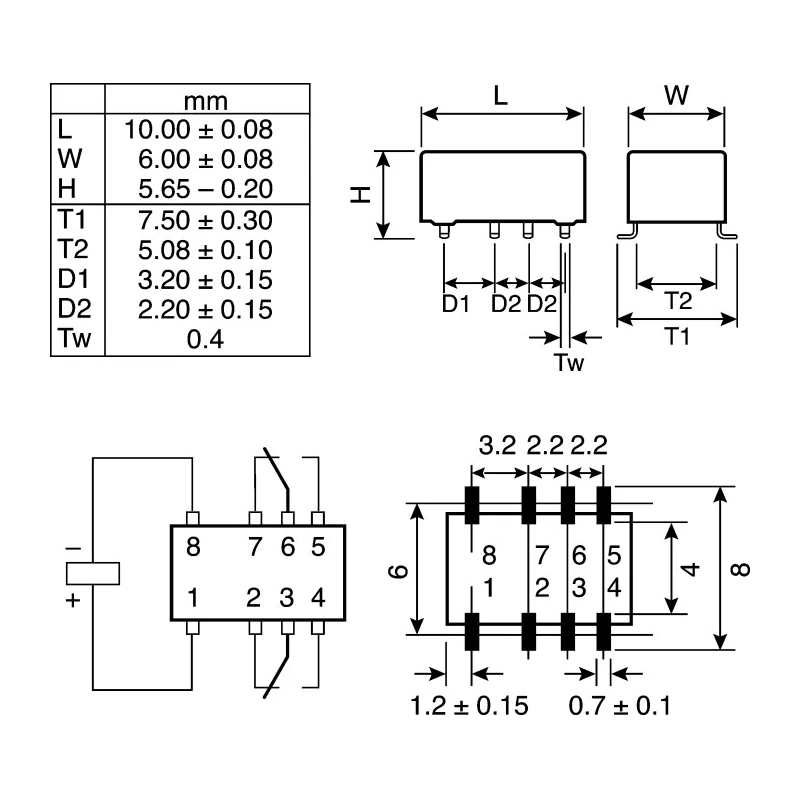

With dimensions of 10mm length, 7.5mm width, and 5.7mm height, the slimline IM series relay provides space-saving on PCBs while maintaining high switching power capabilities of 62.5 VA and switching voltage up to 400V AC. The relay complies with IEC 61810 safety standards and is RoHS compliant to meet environmental regulations.

Ideal for telecom, signal conditioning, industrial automation, and manufacturing applications, this power relay ensures reliable switching and long-term durability in complex electronic circuits.

The relay supports a coil voltage of 5V dc for stable operation. Contact configuration is DPDT, enabling dual-pole double-throw switching. Designed for PCB mounting with surface mount terminal type. It has a switching current rating of 5A and switching AC voltage up to 400V ac.

The coil resistance is 178Ω with coil power consumption of 140mW. Operating temperature ranges from -40°C to a maximum of 85°C. Compact dimensions with length 10mm, width 7.5mm, and height 5.7mm. Gold plated bifurcated contacts ensure high reliability and low contact resistance.

Hermetically sealed design offers IP67 protection for harsh environments. Meets IEC 61810 standards and RoHS compliance for environmental safety. Explore TE Connectivity Power Relays and other high-quality electrical components at EnvMart for your industrial and automation projects.
