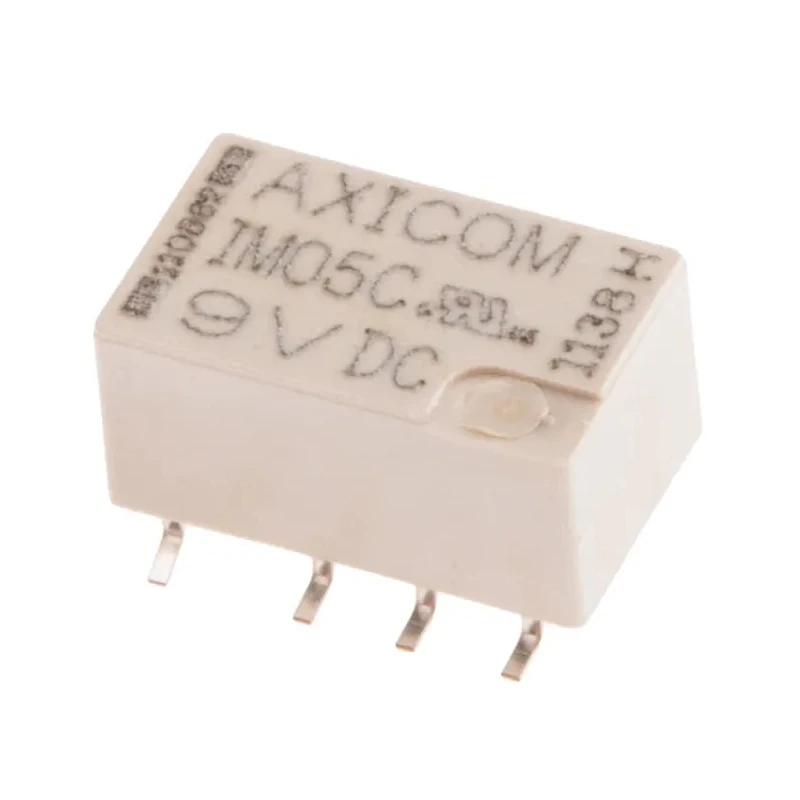

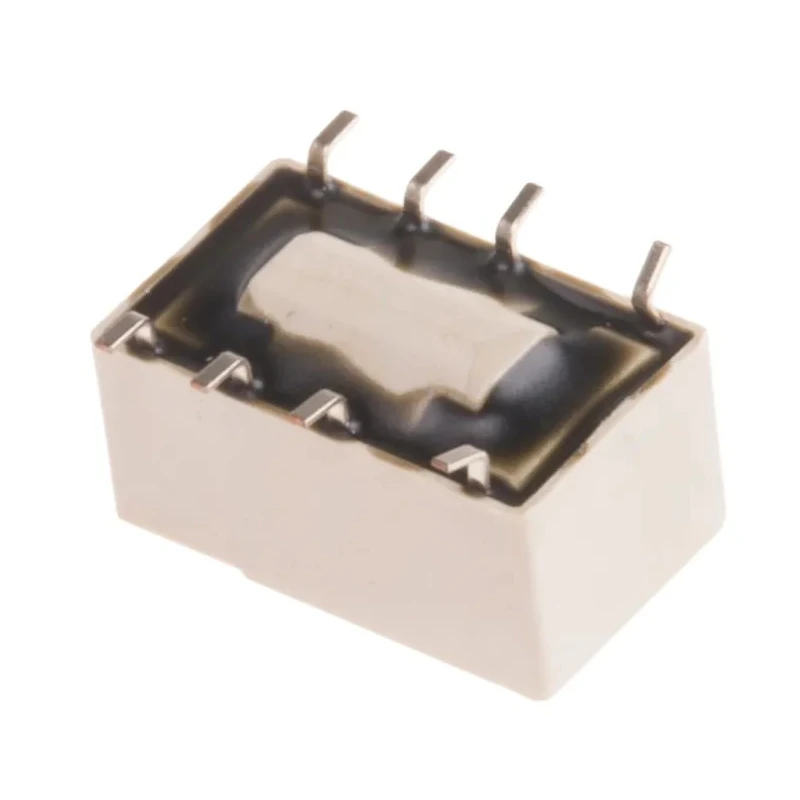

TE Connectivity Surface Signal Relay 5V dc Coil 2A DPDT IM05CGR
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |

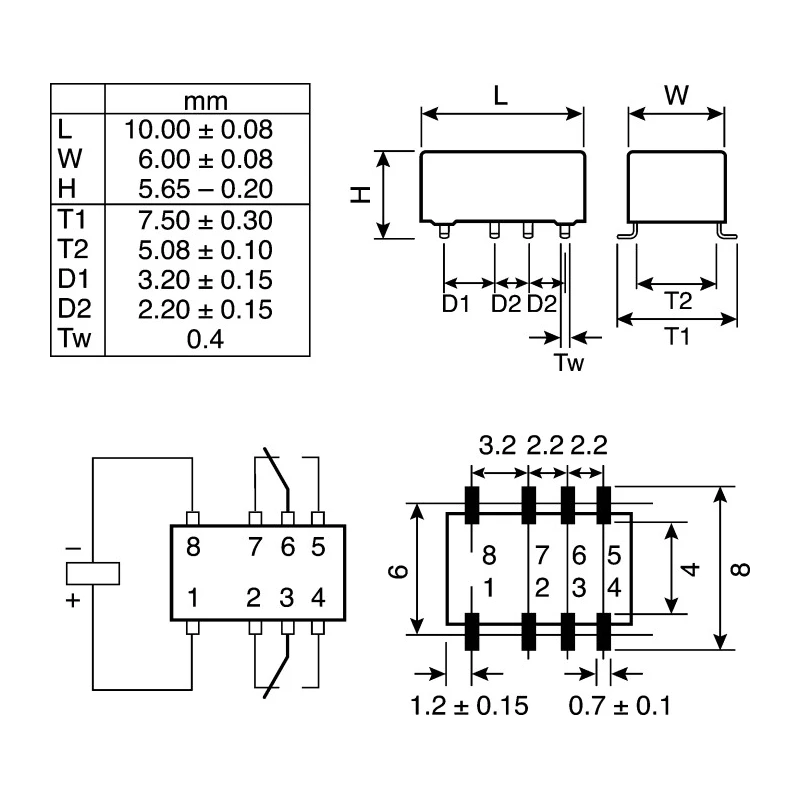

| Height | 5.65mm |
| Length | 10mm |
| Model | IM05CGR |
| Width | 6mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 579Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
Key Features
- Slimline and compact design measuring 10mm length, 6mm width, and 5.65mm height.
- Surface mount type with gull wing SMT legs suitable for PCB soldering.
- Gold plated bifurcated contacts ensure reliable conductivity and durability.
- Hermetically sealed relay with IP67 rating for dust and water protection.
- Operates reliably in temperature range from -40°C to 85°C.
- High mechanical shock resistance up to 300G functional and 500G survival.
- Insulation resistance at 500Vdc greater than 10^9 ohms ensures safety.
- High surge capability compliant with Telcordia TR-NWT-001089 and EC 60950 standards.
Product Description
TE Connectivity IM05CGR Surface Signal Relay is a compact, high-performance relay designed for reliable switching in electronic and signal conditioning circuits. Featuring a 5V dc coil and a 2 Amp switching current, this DPDT (Double Pole Double Throw) relay provides precise and durable contact control for various industrial, telecom, and laboratory applications.
The slimline design with dimensions of 10mm length, 6mm width, and 5.65mm height allows easy implementation on densely packed PCBs. Its surface mount construction with gull wing SMT terminals facilitates efficient automated assembly and soldering.
Gold plated bifurcated contacts enhance conductivity and ensure low contact resistance, while the hermetically sealed package offers IP67-rated protection against dust and moisture, extending operational lifetime even in challenging environments.
Designed to operate reliably between -40°C and 85°C, the relay withstands high mechanical shocks up to 300G functional and 500G survival, making it suitable for use in rugged industrial and automotive settings. The insulation resistance at 500Vdc is above 10^9 ohms, supporting electrical safety and reducing leakage currents.
This relay meets stringent industry standards including RoHS compliance, Telcordia TR-NWT-001089, and EC 60950 surge capabilities, ensuring it meets telecom and industrial signal conditioning requirements.
Applications include telecom equipment, signal switching, industrial automation controls, HVAC systems, and other instrumentation requiring reliable small-signal switching solutions.
Slimline compact size with robust DPDT contact configuration. Surface mount gull wing design for PCB assembly. Hermetically sealed for environmental protection and longevity. High shock resistance suitable for demanding industrial environments.
Energy efficient with 140mW coil power consumption. Gold plated contacts for enhanced reliability and conductivity. Wide operating temperature range -40°C to 85°C. Compliant with RoHS and telecom surge standards. Low coil resistance of 579Ω for precise coil control.
Explore related products in the Signal Relays category on EnvMart for additional options in electronic relay solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current of 2A.
The relay measures 10mm in length, 6mm in width, and 5.65mm in height.
The coil voltage for this relay is 5V dc.
It operates reliably in a temperature range from -40°C to 85°C.
This relay features a DPDT (Double Pole Double Throw) contact configuration.
The coil resistance is 579Ω.
Yes, it is hermetically sealed and has an IP67 rating for dust and water protection.
The contacts are made of gold plated material to ensure reliable conductivity.
The maximum operating temperature is 85°C and the minimum is -40°C.
It complies with RoHS and has surge capabilities in accordance with Telcordia TR-NWT-001089 and EC 60950 standards.
The coil power consumption is 140mW.
It uses solder type terminals for connection.
