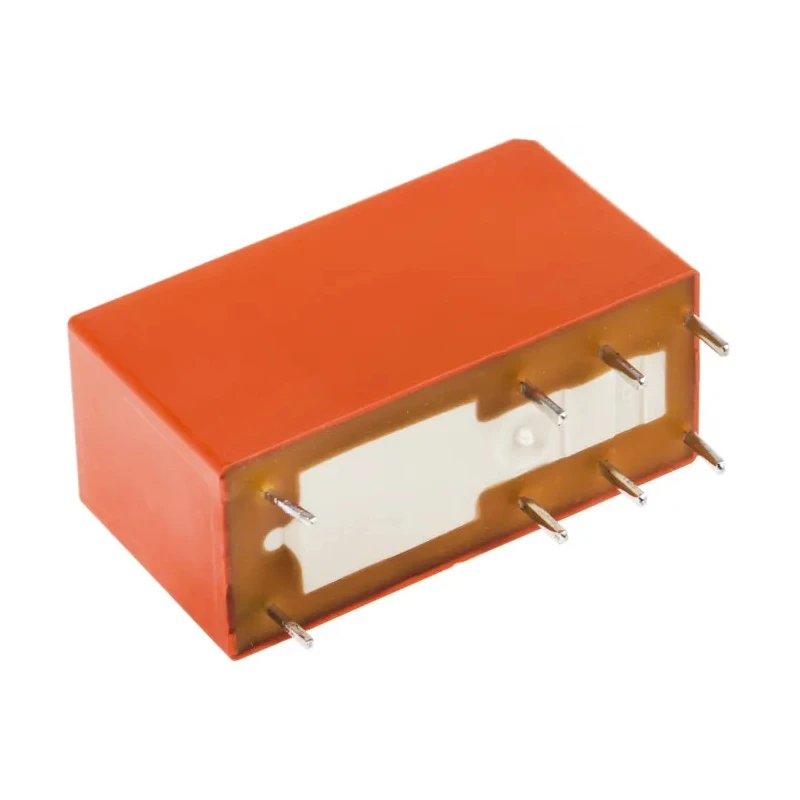

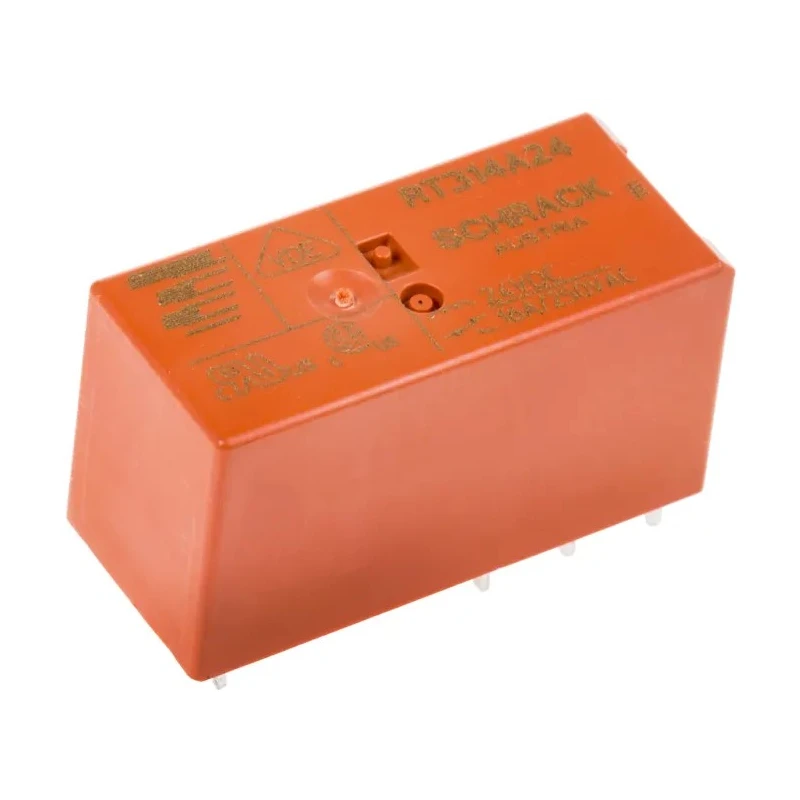

TE Connectivity SCHRACK PCB Power Relay 24V dc Coil 16A Switching Current SPDT RT314A24
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT314A24 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SCHRACK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -10°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | RoHS, UL, VDE |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
Key Features
- Operates at a coil voltage of 24V dc for efficient power handling.
- Single Pole Double Throw (SPDT) contact configuration provides versatile switching capabilities.
- Switching current rated up to 16A suitable for moderate current loads.
- Designed for PCB mounting with solder terminal type for secure installation.
- Supports switching AC voltage up to 400V ac for broad operational range.
- Coil resistance is 1.4kΩ ensuring stable coil operation.
- Operating temperature range from -10°C to 85°C accommodates diverse environments.
- Contact material constructed of silver alloy for enhanced conductivity and durability.
Product Description
TE Connectivity RT314A24 is a high-quality SCHRACK series PCB power relay designed for industrial, automation, and electrical applications. This relay operates with a 24V dc coil and supports a switching current of 16A, making it suitable for switching moderate power loads with precision and reliability. The Single Pole Double Throw (SPDT) contact configuration offers flexible control in electronic circuits.
The relay features reinforced insulation and robust silver alloy contacts, ensuring long-lasting performance. Its compact size with precise dimensions of 29mm length, 12.7mm width, and 15.7mm height allows easy integration into constrained PCB layouts. The solder terminal type mounting guarantees secure installation and reliable electrical connections.
RT314A24 is rated for switching AC voltage up to 400V ac and functions efficiently within a temperature range from -10°C to 85°C, making it dependable in various industrial environments. Built to meet RoHS, UL, and VDE certifications, it complies with international quality and safety standards.
This relay is ideal for use in electrical control systems, automation machinery, instrumentation, and other industrial equipment requiring precise control of electrical power circuits. The relay incorporates shock resistance and flux-proofing to enhance durability in challenging conditions.
Operates at coil voltage of 24V dc. 16A switching current capacity. SPDT contact configuration. PCB mounting with solder terminals. Switching AC voltage rated at 400V ac. Temperature range from -10°C to 85°C. Silver alloy contact material.
Compact size for PCB integration. Manufactured in Austria with RoHS, UL, VDE compliance. Explore our extensive catalog of industrial relays at EnvMart for reliable electrical automation components.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a coil voltage of 24V dc.
The relay supports a maximum switching current of 16A.
It features a Single Pole Double Throw (SPDT) contact configuration, allowing versatile switching capabilities.
The relay is rated for switching AC voltage up to 400V ac.
The dimensions of this unit are 29mm in length, 12.7mm in width, and 15.7mm in height.
The coil resistance is 1.4kΩ, ensuring stable coil operation.
It operates within a temperature range from -10°C to 85°C.
This model is designed for PCB mounting with solder terminals for secure installation.
The contact material is constructed of silver alloy, enhancing conductivity.
It complies with RoHS, UL, and VDE certifications, meeting international quality and safety standards.
This relay is manufactured in Austria.
It is suitable for use in electrical control systems, automation machinery, and instrumentation requiring precise control of electrical power circuits.
