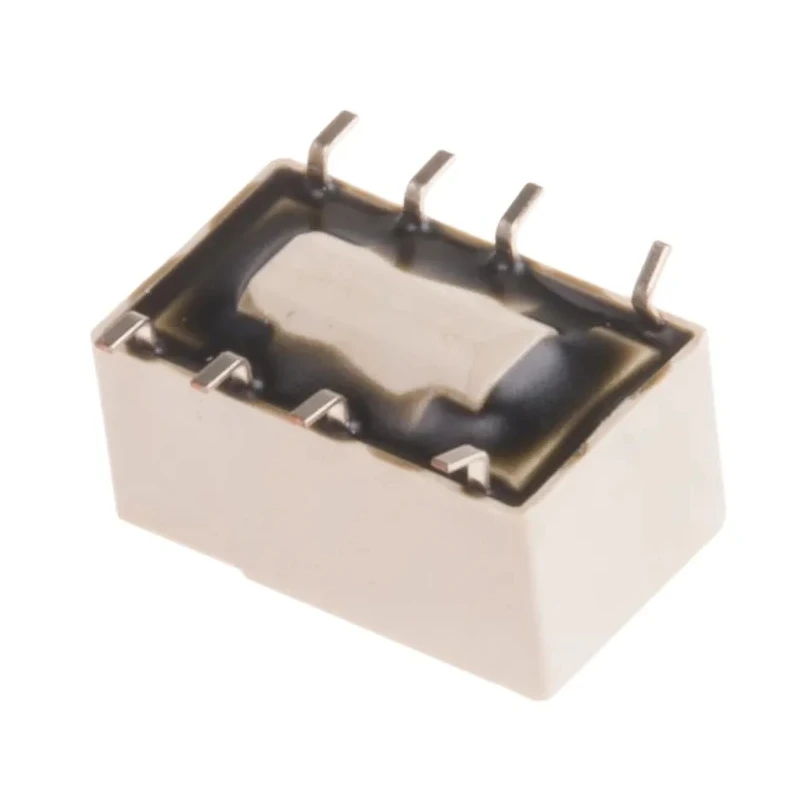

TE Connectivity Surface Signal Relay 5V dc Coil 2A DPDT Surface Mount Slimline IM Series IM05CGR
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 5.65mm |
| Length | 10mm |
| Model | IM05CGR |
| Width | 6mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 579Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
Key Features
- The IM Series relay offers a slimline, low-profile design measuring 10 x 6 x 5.65 mm.
- Equipped with gold-plated bifurcated contacts ensuring reliable signal integrity.
- Hermetically sealed with RT V technology to IP67 standards for enhanced environmental protection.
- Supports high mechanical shock resistance, functional up to 300G and survival up to 500G.
- Suitable for telecom, industrial, and control circuit applications requiring compact signal relays.
- Coil resistance is 579 ohms with a power consumption of 140mW.
- Designed for switching AC voltages up to 250V ac and DC voltages up to 220V dc.
- Terminals are solder type facilitating secure PCB mounting.
Product Description
TE Connectivity IM05CGR Surface Signal Relay is a compact, high-performance signal relay designed for use in industrial and telecom applications, featuring a 5V dc coil and 2A switching capacity. This DPDT relay belongs to the IM Series which is known for its slimline, low-profile form factor measuring 10mm in length, 6mm in width, and 5.65mm in height suitable for surface mounting on PCBs.
The relay uses gold-plated bifurcated contacts to ensure excellent conductivity and reliable signal switching. It is hermetically sealed with RT V technology, providing IP67 level protection against dust and moisture, suitable for harsh environments.
This relay withstands high mechanical shock, up to 300G functional and 500G survival, making it robust for demanding industrial settings. The coil resistance of 579Ω with a coil power rating of 140mW ensures low energy consumption. It supports switching AC voltages up to 250V and DC voltages up to 220V, making it versatile across various electrical control circuits.
Terminal type is solder, enabling strong and stable PCB connections. The IM05CGR operates reliably across a wide temperature range from -40°C to 85°C, ensuring performance continuity in extreme climates. Compliance with RoHS standards aligns with environmental safety regulations, facilitating sustainable manufacturing and disposal.
This surface Signal Relay is an excellent choice for applications requiring compact size, durability, and precise electrical switching such as telecommunications equipment, industrial control panels, and automation systems.
The IM Series relay’s slim profile reduces PCB foot print. Hermetic sealing increases relay longevity in harsh conditions. Gold-plated contacts reduce contact resistance and signal degradation. Wide operating temperature range suits diverse industrial environments.
High mechanical shock resistance ensures reliability under vibration. Low coil power supports energy-efficient designs. Explore a broad range of relays and signal conditioners on EnvMart for your electrical and automation project needs.
