Intelligent LED Solutions LED Array P2720 1-LED Red, 20mm Diameter, 2.07W Power ILH-SY01-CNRD-SC201-WIR200.

Free Delivery in India | Lowest Global Shipping Charges

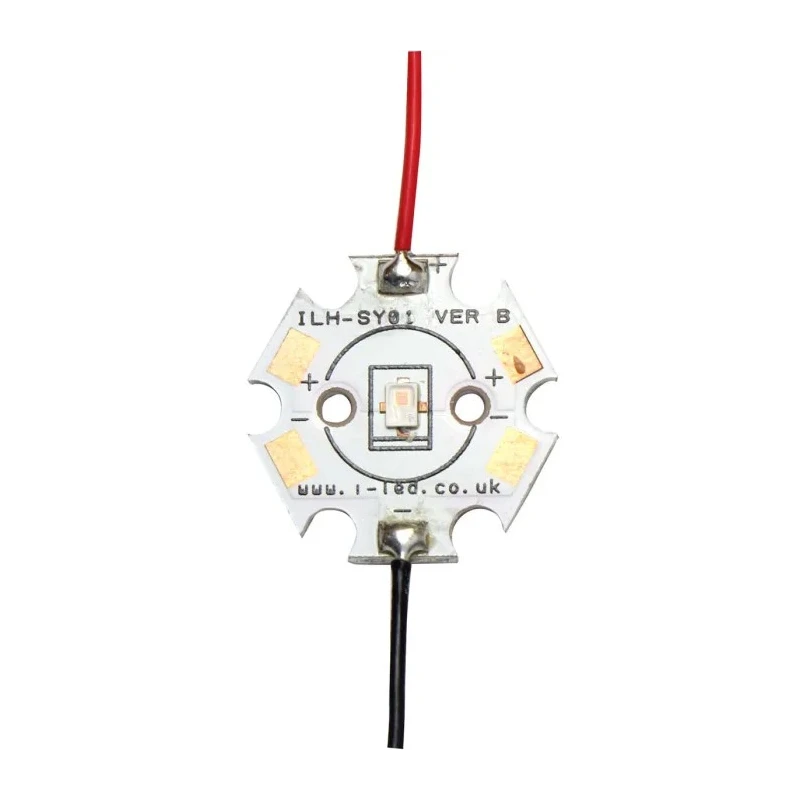

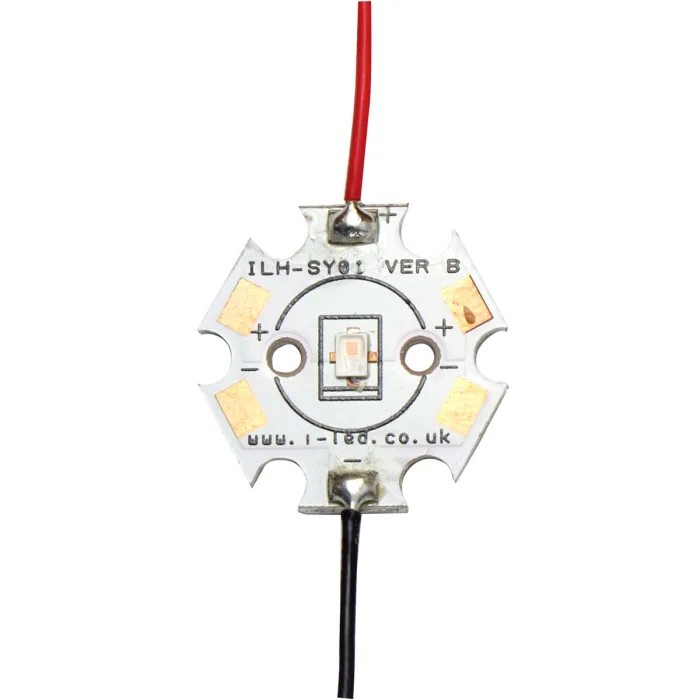

Intelligent LED Solutions LED Array P2720 1-LED Red, 20mm Diameter, 2.07W Power ILH-SY01-CNRD-SC201-WIR200.

Name: Intelligent LED Solutions LED Array P2720 1-LED Red, 20mm Diameter, 2.07W Power ILH-SY01-CNRD-SC201-WIR200.
Brand: Intelligent LED Solutions
SKU: 164699
Price: 13.55 USD
Availability: InStock



Category LED Array Brand Intelligent LED Solutions Condition New

Specifications

Country of Origin	United Kingdom
Brand	Intelligent LED Solutions
Dimensions	20mm x 20mm x 2.2mm
Model	ILH-SY01-CNRD-SC201-WIR200.
Connection Type	Solder
Output type	Constant Voltage
Series	P2720
Outside diameter	20mm
Number Of Leds	1
Power Dissipation	2.07W
Standards/Approvals	RoHS
LED Colour	Red
Radiant Flux	90mW
LED Voltage	2.75, 3.5V
Typical Luminous Flux	90lm

Key Features

The LED array includes a single red LED with a typical luminous flux of 90 lumens.
Equipped with onboard driver and secondary optics for enhanced performance.
Features a constant voltage output type suitable for stable light emission.
Compact dimension of 20mm x 20mm x 2.2mm enables easy integration in electronic assemblies.
Complies with RoHS standards ensuring environmental safety.
Power stars can be linked for creating longer LED chains.
Designed for optimal thermal management using aluminium substrates.
Includes 200mm connecting wires for convenient installation.

Product Description

Intelligent LED Solutions ILH-SY01-CNRD-SC201-WIR200. LED Array featuring a single red LED with a 20mm diameter and 2.07W power dissipation. This product is ideal for various electronic and optoelectronic applications requiring high-quality illumination.

At the core of this LED array is the SYNIOS® P2720 from OSRAM Opto Semiconductors, delivering excellent performance in a compact 1mm² chip size. The power star LED is built on an aluminium substrate, providing superior thermal management and longevity.

This LED array offers a typical luminous flux of 90 lumens and radiant flux of 90mW, ensuring reliable and bright red light output. It features onboard driver electronics and secondary optics to enhance light distribution and efficiency. The device operates within an LED voltage range of 2.75 to 3.5 volts and dissipates 2.07 watts of power under normal conditions.

The LED array complies with RoHS environmental standards, ensuring eco-friendly manufacture and use. It is not designed for automotive use but suits a wide array of industrial, laboratory, manufacturing, and commercial lighting applications.

The LED Array contains one red LED providing high luminous efficiency and brightness. Compact dimensions of 20mm x 20mm x 2.2mm facilitate incorporation into various device assemblies. Onboard driver enables constant voltage output ensuring stable illumination.

Secondary optics included to optimize light dispersion at a 120° radiation angle. Power stars can be chained together for extended lighting coverage. Equipped with 200mm connecting wires for easy installation and connectivity.

Designed for extended usage with up to 50,000 hours at 70% brightness.

Applications include general electronic component integration, LED lighting modules, and customized optoelectronic devices in industrial and laboratory environments. The product's build quality combined with OSRAM's SYNIOS technology ensures reliable operation and scalable performance where compact and powerful LED light sources are required.
