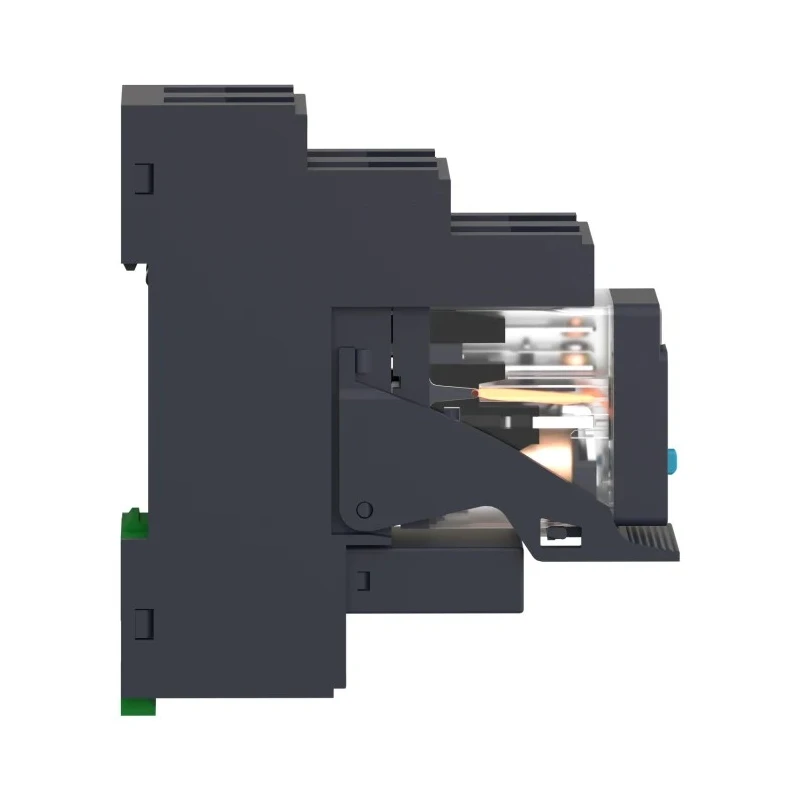

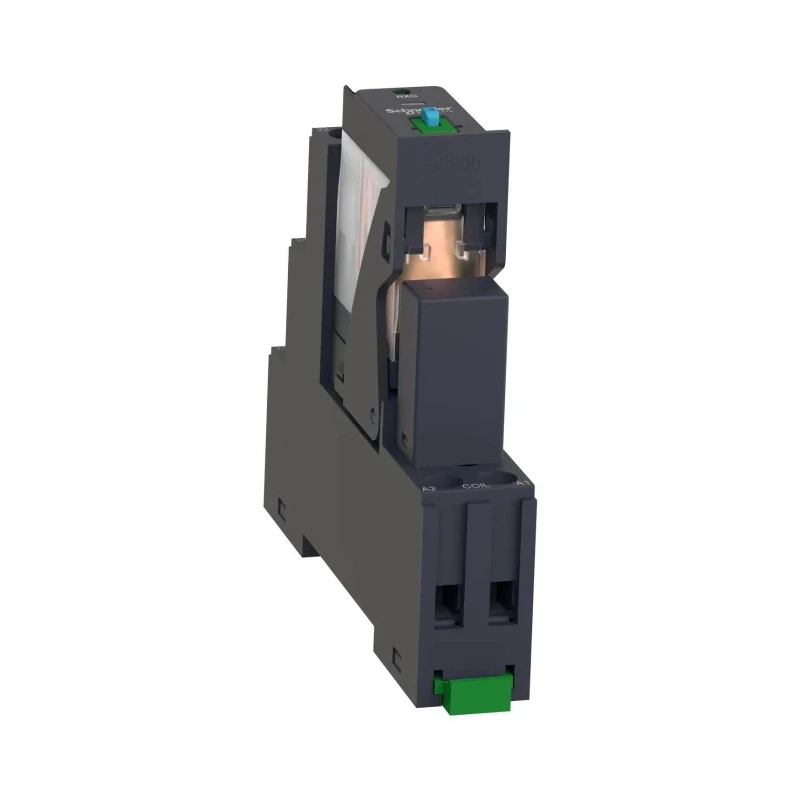

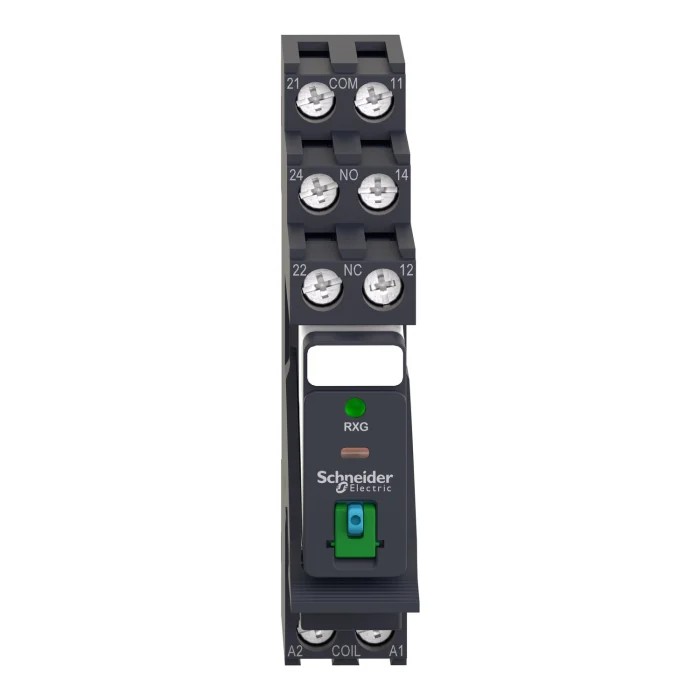

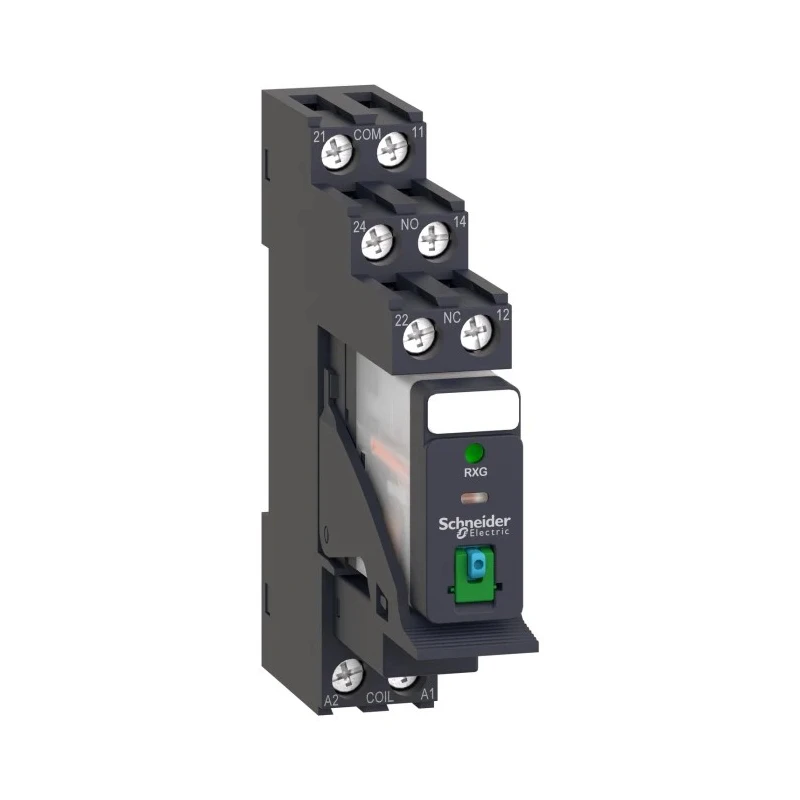

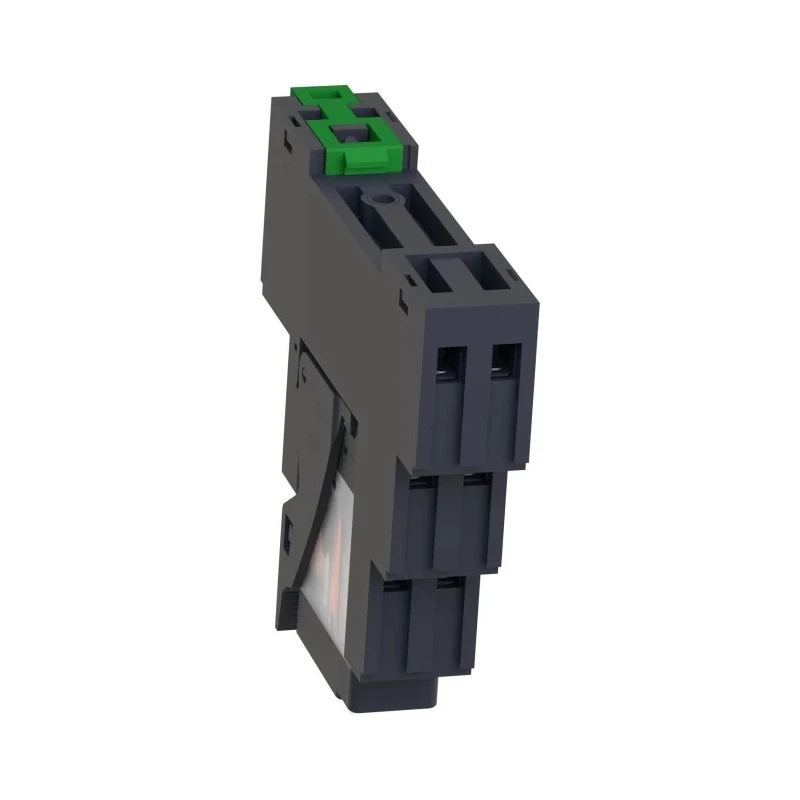

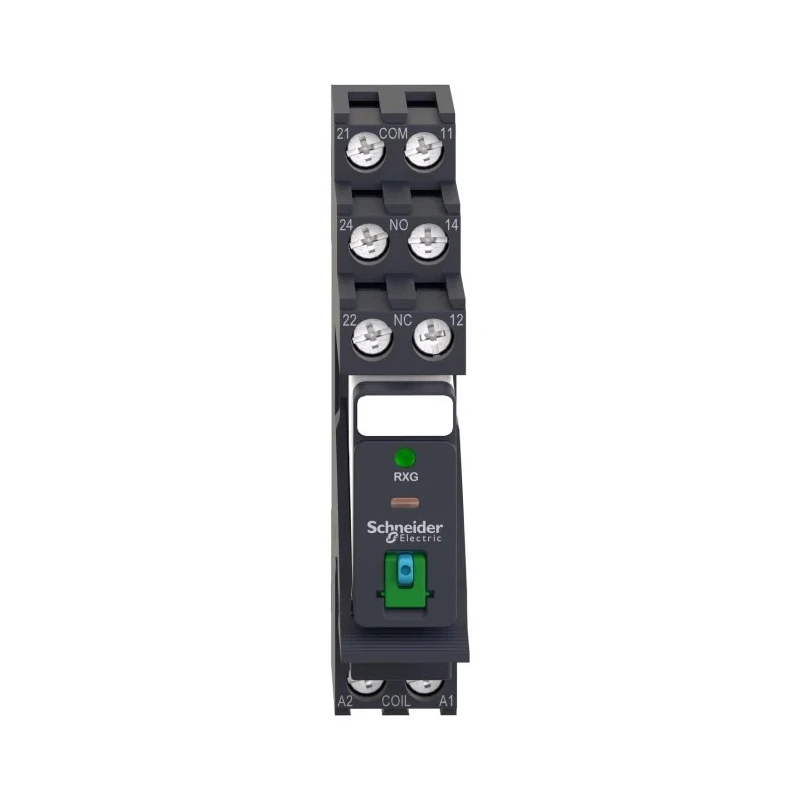

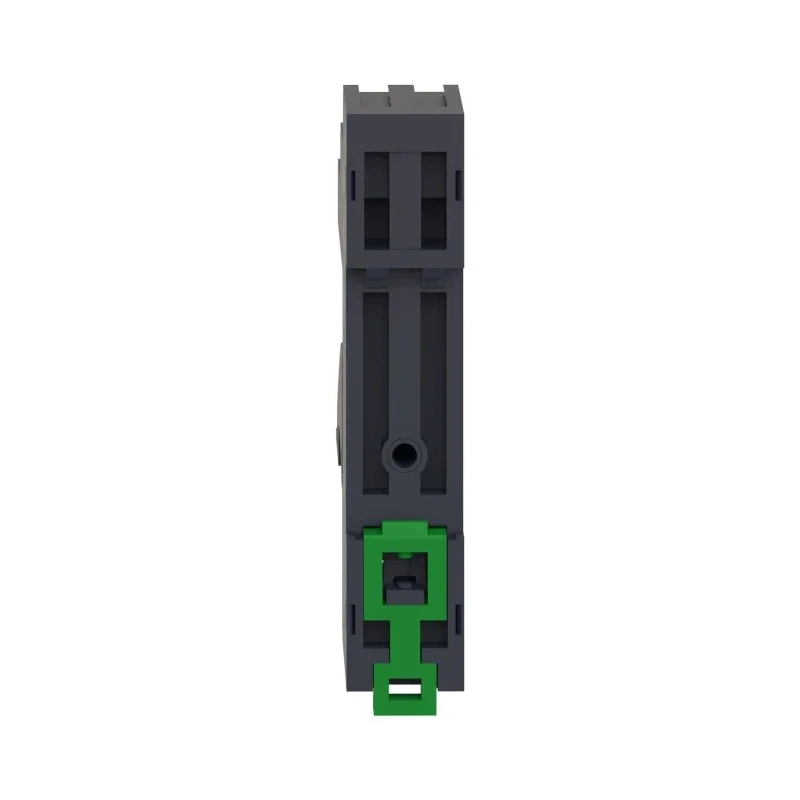

Schneider Electric Harmony Relay RXG Series Interface Relay, 24V DC Coil, DPDT, 5A Switching Current RXG22BDPV
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 72mm |
| Length | 15.6mm |
| Model | RXG22BDPV |
| Width | 79.6mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RXG |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Connector |
| Coil Resistance | 100mΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
Key Features
- The relay includes a status LED for clear operation indication.
- Capable of handling a maximum switching capacity of 1250 VA AC.
- Designed for durability with 100,000 operational cycles under load.
- Equipped with a lockable test button ensuring safe maintenance.
- Operates efficiently from -40°C to 70°C for varied environments.
- Silver alloy contacts reduce contact resistance to 100 mΩ.
- Compact dimensions allow easy DIN rail mounting.
- Suitable for automated control systems and industrial machinery.
Product Description
Schneider Electric RXG22BDPV Harmony Relay RXG Series Interface Relay features a 24V DC coil voltage and DPDT contact configuration, designed for dependable automation and control applications. Its DIN rail mount and compact size of 15.6 x 72 x 79.6 mm enable easy installation in control panels.
This Interface Relay boasts a maximum switching current of 5A and supports switching voltages up to 250V AC and 30V DC, facilitating control of various industrial devices with a high switching capacity of 1250 VA AC. The components include silver alloy contacts that ensure low contact resistance of 100 mΩ, enhancing reliability and performance.
Durability is ensured with an operational life of 100,000 cycles under load. The lockable test button enhances safety by preventing unintended operations during maintenance. Designed to operate reliably in harsh conditions, it supports a wide temperature range from -40°C to +70°C.
This relay is ideal for use in automated control systems, industrial machinery, electromechanical relay circuits, and safety-related protection circuits, providing secure and efficient switching.
The relay includes a status LED for clear operation indication. Capable of handling a maximum switching capacity of 1250 VA AC. Designed for durability with 100,000 operational cycles under load. Equipped with a lockable test button ensuring safe maintenance.
Operates efficiently from -40°C to 70°C for varied environments. Silver alloy contacts reduce contact resistance to 100 mΩ. Compact dimensions allow easy DIN rail mounting. Suitable for automated control systems and industrial machinery.
Provides secure switching in electromechanical relay applications. Ideal for safety and protection circuit integration. Choose Schneider Electric Harmony Relay RXG Series for reliable performance in industrial and automation equipment. Discover more solutions in our Relays category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RXG22BDPV relay operates with a coil voltage of 24V DC.
This model has a maximum switching current of 5A.
The contact configuration of this relay is DPDT (Double Pole Double Throw).
The dimensions of this relay are 15.6 mm in length, 79.6 mm in width, and 72 mm in height.
It supports a maximum switching voltage of 250V AC and 30V DC.
This relay is designed for an operational life of 100,000 cycles under load.
The RXG22BDPV operates efficiently within a temperature range of -40°C to 70°C.
The contacts of this relay are made from silver alloy, which reduces contact resistance to 100 mΩ.
This model is designed for DIN rail mounting, allowing for easy installation in control panels.
Yes, it is equipped with a lockable test button to ensure safe maintenance during operation.
The relay uses a connector type terminal for its connections.
This relay is suitable for automated control systems, industrial machinery, and safety-related protection circuits.
