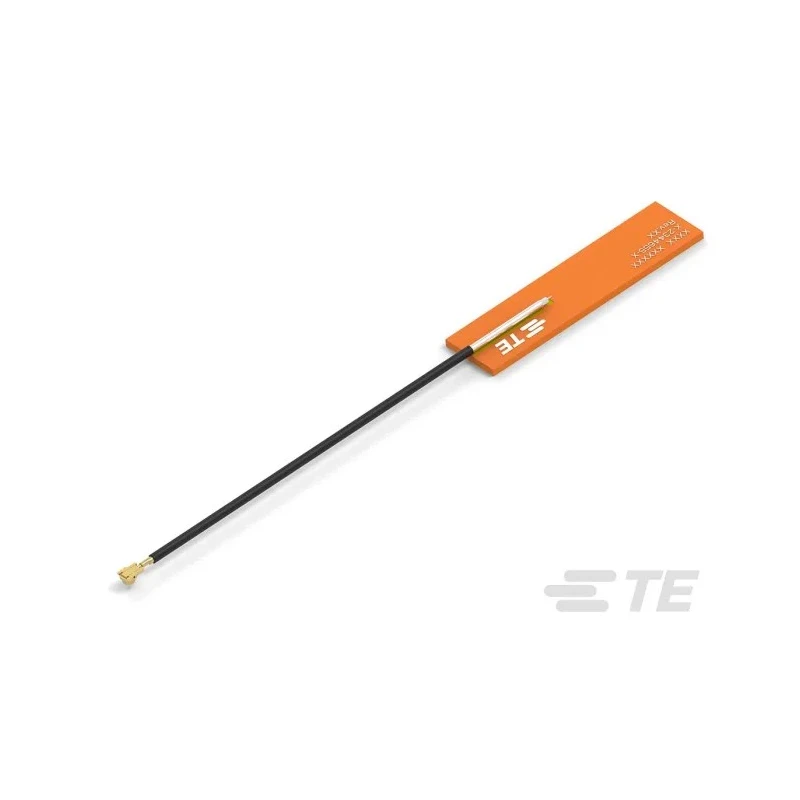

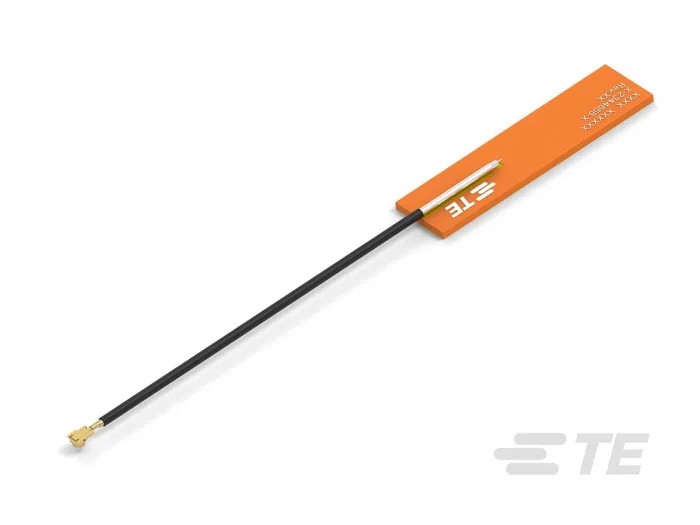

TE Connectivity PCB WiFi Antenna Dual Band 5.1-5.8GHz 5dBi Gain Adhesive Mount 100mm Cable MHF4 Connector 2344655-6
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Cable Length | 100mm |
| Series | 2344655 PCB H |
| Gain | 5dBi |
| Maximum Frequency | 5.8GHz |
| Minimum Frequency | 5.1GHz |
| Internal/External | Internal |
| RF Protocols | Bluetooth (BLE), WiFi |
| Antenna Physical Form | PCB |
| Antenna Mount Type | Adhesive |
| Directivity | Omni-Directional |
| Number of Bands | 2 |
| Impedance?(O) | 50 |
| Antenna Connection Type? | Cable Assembly |
| Antenna Connector Type? | MHF4 Compatible |
| Antenna Style? | Embedded |
| Polarization? | Linear |
Key Features
- The antenna features an adhesive mount for secure installation on PCBs.
- It provides a gain of 5 dBi ensuring high-quality wireless signal transmission.
- The cable length is 100 mm with a MHF4 compatible connector for easy integration.
- Offers omni-directional linear polarization for consistent signal coverage.
- Operates in the 5.1 GHz to 5.8 GHz frequency range supporting two bands.
- Designed for internal use with a compact embedded PCB form factor.
- Impedance is 50 ohms, optimizing signal transfer efficiency.
- Suitable for automotive, commercial transportation, rail, and consumer wireless device applications.
Product Description
TE Connectivity 2344655-6 PCB WiFi Antenna is a dual-band internal adhesive-mounted antenna designed for Bluetooth (BLE) and WiFi wireless communications operating between 5.1 GHz and 5.8 GHz. The antenna features a compact embedded PCB form factor optimized for high-quality transmission in a variety of wireless devices.
This antenna delivers a gain of 5 dBi and utilizes omni-directional linear polarization providing uniform coverage and reliable signal reception. It includes a 100 mm cable with an MHF4 compatible connector to facilitate easy and secure PCB connections.
Its impedance of 50 ohms ensures efficient signal transfer, making it suitable for industrial and commercial applications including automotive, rail, commercial transportation, and consumer electronics. The compact and adhesive mount design allows easy integration into devices requiring embedded antenna solutions.
The antenna complies with no specific standards or approvals but is designed to meet the performance requirements of Bluetooth and WiFi protocols. This product is manufactured in China and is part of the 2344655 PCB H series.
The antenna features an adhesive mount for secure PCB attachment. Provides 5 dBi gain ensuring strong wireless signals. Includes a 100 mm cable with MHF4 compatible connector. Compact embedded PCB design for internal use.
Omni-directional linear polarization offers consistent coverage. Supports dual bands: 5.1 GHz minimum to 5.8 GHz maximum frequency. Impedance is 50 ohms for optimal performance. Designed for diverse applications in automotive, transportation, rail, and consumer electronics.
Explore additional products within the WiFi Antennas category at EnvMart for comprehensive wireless connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates in the frequency range of 5.1 GHz to 5.8 GHz, supporting dual bands for wireless communication.
It provides a gain of 5 dBi, ensuring strong wireless signal transmission.
This unit features an MHF4 compatible connector, allowing for easy integration with PCBs.
The antenna includes a cable that is 100 mm long, facilitating installation and connection.
The impedance of this model is 50 ohms, optimizing signal transfer efficiency.
It features an adhesive mount for secure installation on PCBs, making it suitable for embedded applications.
This antenna utilizes omni-directional linear polarization, providing consistent signal coverage.
It is designed for use in automotive, commercial transportation, rail, and consumer wireless device applications.
This model has a compact embedded PCB form factor, suitable for internal use in devices.
The antenna is manufactured in China, as indicated by its country of origin.
This unit is part of the 2344655 PCB H series, which includes various models of PCB antennas.
