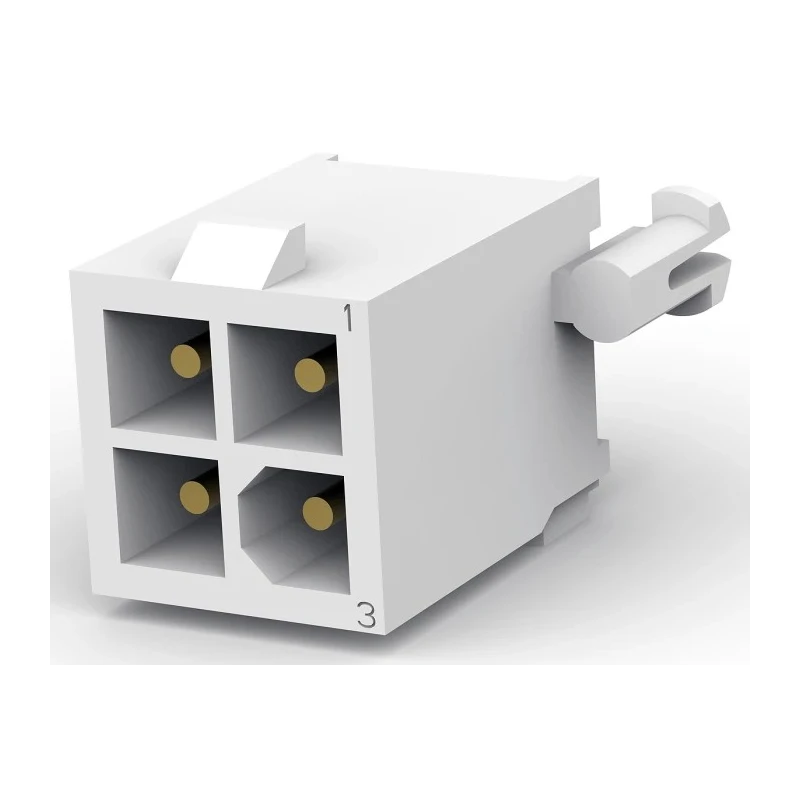

TE Connectivity Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header 4 Contact 4.14 mm Pitch 2 Row 1-770174-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header 4 Contact 4.14 mm Pitch 2 Row 1-770174-1

Name: TE Connectivity Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header 4 Contact 4.14 mm Pitch 2 Row 1-770174-1
Brand: TE Connectivity
SKU: 163995



Category Connectors Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	600V
Brand	TE Connectivity
Orientation	Straight
Current	9.5A
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	Mini-Universal MATE-N-LOK
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	4.14mm
Contact Plating	Gold
Number of Contacts	4
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.69mm

Key Features

Constructed with a shrouded nylon housing offering UL94V-0 compliance.
Features male brass contacts plated with gold for enhanced conductivity and corrosion resistance.
Supports a current rating of 9.5A at operating voltages up to 600V.
Has an operating temperature range from -55°C to 105°C suitable for industrial environments.
Includes a positive locking latch and board locks for secure mating and PCB retention.
Tail pins measure 3.69 mm in length for reliable through-hole soldered connections.
Designed for vertical mount wire-to-board applications with a 4.14 mm row pitch.

Product Description

TE Connectivity 1-770174-1 Mini-Universal MATE-N-LOK Series PCB Header is a high-quality electronic connector designed for wire-to-board applications requiring reliability and durability. This PCB header features a shrouded, white UL94V-0 nylon housing ensuring robust insulation and flame retardance. The connector comprises 4 gold-plated male brass contacts arranged in 2 rows with a 4.14 mm pitch, providing excellent electrical performance up to 9.5 amps and 600 volts.

The component is engineered for through-hole mounting with tail pins measuring 3.69 mm length, allowing solder termination to printed circuit boards. Its design incorporates a positive locking latch mechanism and board locks that secure mating connectors and enhance PCB retention integrity in demanding conditions. Rated for operation in temperatures from -55°C to 105°C, this connector is well-suited for industrial, manufacturing, electronic equipment, and automation sectors.

This series is part of TE Connectivity's Mini-Universal MATE-N-LOK family, known for versatility and ease of use in wire-to-board interconnections. Though it carries no formal certifications, it meets industrial quality and operating standards.

Constructed with a shrouded nylon housing offering UL94V-0 compliance. Features male brass contacts plated with gold for enhanced conductivity and corrosion resistance. Supports a current rating of 9.5A at operating voltages up to 600V.

Has an operating temperature range from -55°C to 105°C suitable for industrial environments. Includes a positive locking latch and board locks for secure mating and PCB retention. Tail pins measure 3.69 mm in length for reliable through-hole soldered connections.

Designed for vertical mount wire-to-board applications with a 4.14 mm row pitch.

This connector system is ideal for use in electronics manufacturing, assembly lines, and repair facilities requiring dependable PCB interconnect solutions. Browse the full range of TE Connectivity PCB headers and Connectors at EnvMart for compatible parts and accessories.
