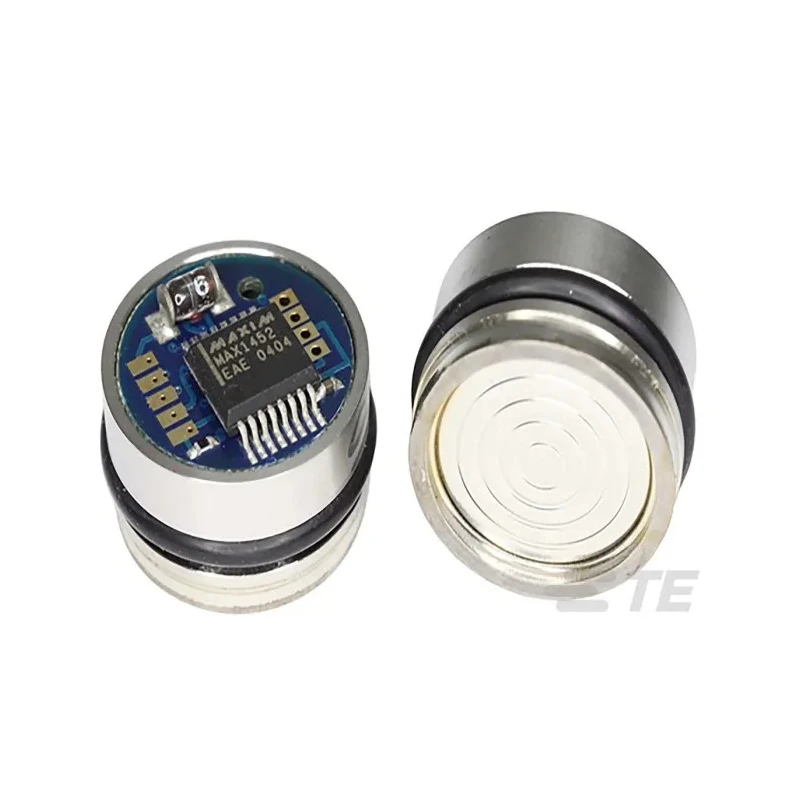

TE Connectivity 86A Series Pressure Sensor 0.5/4.5 V Output 0.7 bar to 35 bar Gauge Reading 86A3R-000000-005PG
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | 0.25 % |
| Brand | TE Connectivity |
| Model | 86A3R-000000-005PG |
| Mount Type | O-Ring |
| Housing Material | 316L Stainless Steel |
| Output type | 0.5/4.5 V |
| Series | 86A |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | RoHS |
| Maximum Pressure Measurement | 35bar |
| Minimum Pressure Measurement | 0.7bar |
| Maximum Supply Voltage | 5.25V |
| Minimum Supply Voltage | 4.75V |
| Pressure Reading Type | Gauge |
| Media Measured | Gas |
Key Features
- The sensor features a 316L stainless steel housing for durability and corrosion resistance.
- It operates within a temperature range from -20°C to 40°C.
- Provides high measurement accuracy of 0.25% and utilizes piezoresistive silicon sensing technology.
- Designed for O-ring mounting with media compatibility for gas measurement.
- Includes built-in temperature compensation and offset correction via custom ASIC.
- Minimum supply voltage is 4.75 V and maximum is 5.25 V.
- The output voltage ranges from 0.5 to 4.5 V providing amplified gauge pressure readings.
Product Description
TE Connectivity 86A3R-000000-005PG Pressure Sensor is a small profile, high-performance sensor optimized for low pressure gauge measurements ranging from 0.7 bar to a maximum of 35 bar. Packaged in a robust 316L stainless steel housing, it is designed for reliable O-ring mounting in industrial and automation control applications.
The sensor utilizes piezoresistive silicon technology with silicone oil to transfer pressure to the sensing element, delivering accurate, stable readings with a 0.25% accuracy rating. A custom ASIC provides temperature compensation and offset correction to enhance measurement reliability across temperature variations from -20°C to 40°C.
This device is ideally suited for gas media measurement in electronics, electrical, automation, and control gear systems. It operates with supply voltages between 4.75 V and 5.25 V, outputting an amplified 0.5 to 4.5 V signal representing gauge pressure.
The housing's 316L stainless steel construction ensures excellent corrosion resistance for enhanced durability in demanding environmental conditions. The O-ring mounting simplifies installation and maintains system integrity.
The sensor's compact design suits integration into automated control and sensing systems. It complies with RoHS standards, ensuring environmentally responsible manufacturing. Operating temperature range from -20°C to 40°C supports a variety of industrial and laboratory conditions.
The 0.5 to 4.5 V output is compatible with industry standard analog input devices. Ideal for applications requiring precise low pressure gauge readings in electronics, HVAC, manufacturing, and gas handling.
This product is made in China and provides a robust, precise solution for pressure measurement needs within industrial automation and instrumentation sectors. For a full range of TE Connectivity sensors and solutions, browse the Electronics & Electricals Sensors category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures gauge pressure from 0.7 bar to a maximum of 35 bar.
It provides an output voltage ranging from 0.5 to 4.5 V, representing the gauge pressure readings.
The sensor has a measurement accuracy of 0.25%.
It operates within a temperature range of -20°C to 40°C.
The housing is made of 316L stainless steel, providing corrosion resistance and durability.
It is designed for O-ring mounting, which simplifies installation and maintains system integrity.
The minimum supply voltage is 4.75 V, and the maximum supply voltage is 5.25 V.
It is designed for measuring gas media.
Yes, it includes built-in temperature compensation and offset correction via a custom ASIC.
It complies with RoHS standards, ensuring environmentally responsible manufacturing.
This technology allows for accurate and stable pressure readings by transferring pressure to the sensing element using silicone oil.
This product is made in China.
