TE Connectivity RTB14730 PCB Power Relay 230V AC Coil 12A Switching Current SPDT

TE Connectivity RTB14730 is a high-quality PCB Power Relay designed for industrial, automation, and electronic applications requiring reliable switching capabilities. The relay features a 230V AC coil voltage and supports switching currents up to 12A, making it suitable for moderate power control tasks. Its Single Pole Double Throw (SPDT) contact configuration offers versatile switching options for diverse circuit designs.

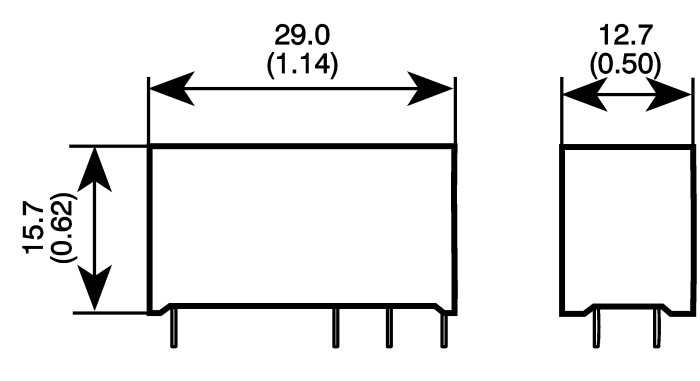

The relay mounts directly onto printed circuit boards using solder terminals, ensuring solid mechanical and electrical connections. Its compact physical size, measuring 29mm in length, 12.7mm in width, and 15.7mm in height, facilitates efficient PCB layouts in constrained spaces.

Operating temperature range from -40°C to 70°C allows deployment in environments with wide temperature variations. The coil resistance is calibrated at 32.5kΩ with a coil power of 500mW, contributing to energy efficiency during operation. The relay is rated for switching AC voltages up to 400V, making it compatible with many industrial power circuits.

Constructed with silver nickel alloy contacts, the relay assures long service life and stable electrical conductivity. It meets international standards including RoHS compliance and IEC 61810 certification, ensuring environmental safety and performance reliability.

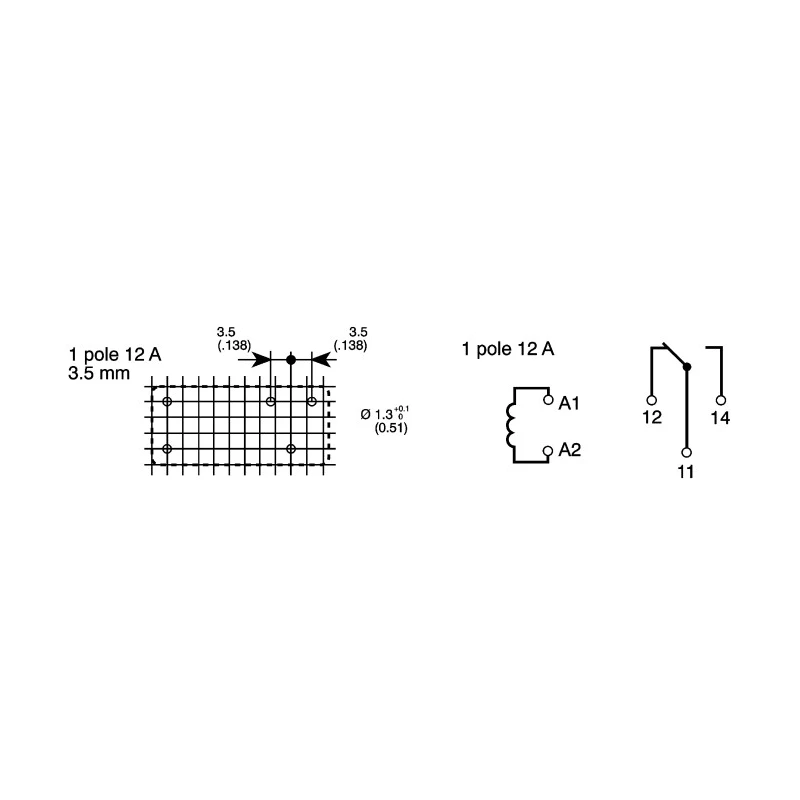

Common applications include interface circuits, automation control systems, domestic electrical devices, security lighting, and heating systems. The relay's 3.5mm pinning is wash tight, enhancing durability under demanding conditions.

Coil voltage operates at 230V AC for reliable switching. Switching current capacity of 12A suitable for moderate power applications. SPDT contact configuration allows flexible circuit control. Designed for printed circuit board (PCB) mounting with solder terminals.

Compact dimensions facilitate efficient PCB layouts. Operational temperature range from -40°C to 70°C. Switching AC voltage rating of 400V AC ensures wide compatibility. Energy-efficient coil with 32.5kΩ resistance and 500mW power.

Durable silver nickel alloy contacts for longevity and conductivity. Certified by RoHS and IEC 61810 standards for quality and safety.

This TE Connectivity RTB14730 PCB Power Relay is engineered for industrial, laboratory, commercial, and manufacturing use cases requiring dependable power relay solutions. It fits seamlessly in automation, HVAC, water treatment, and security lighting systems. Explore more in the Power Relays category at EnvMart for related relay solutions.
