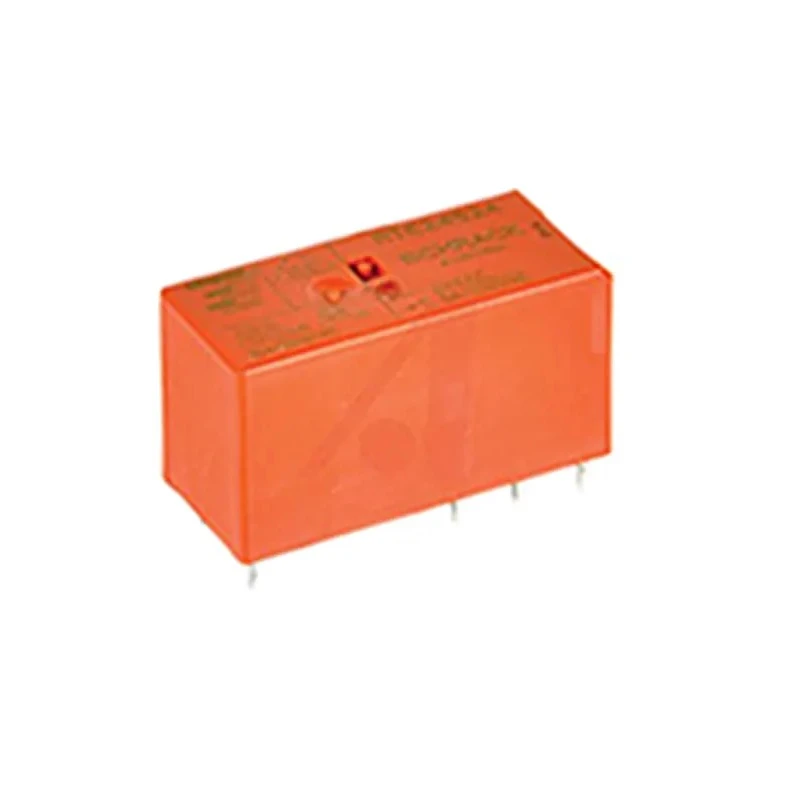

TE Connectivity RT2 Series PCB Power Relay, 24V AC Coil, 8A Switching Current, DPDT Contact Configuration RTE24524

TE Connectivity RTE24524 PCB Power Relay belongs to the RT2 series, featuring a 24V AC coil voltage and 8A switching current suitable for industrial and domestic electrical control applications. This relay offers a DPDT (Double Pole Double Throw) contact configuration, making it ideal for systems requiring changeover contacts.

The relay is designed for through-hole mounting on printed circuit boards (PCBs) with solder-type terminals, providing a secure and reliable electrical connection. It employs silver nickel alloy contacts known for their high conductivity and corrosion resistance, enhancing the relay's operational longevity.

With a coil resistance of 350 ohms and power consumption of 0.76 VA, the coil ensures efficient energy usage while maintaining dependable switching performance. The compact size of 29mm length, 12.7mm width, and 15.7mm height supports applications with space constraints.

Rated for operation between -40°C and 70°C, this relay is suitable for various environmental conditions. Its switching AC voltage is rated at 400V AC, catering to a wide range of electrical circuits.

The device complies with recognized safety and quality standards including VDE and cULus, ensuring it meets both European and North American regulatory requirements. Manufactured in Austria, it reflects stringent quality control and reliable performance.

Applications include interface circuitry, automation systems, security lighting, heating controls, and other domestic and industrial uses where reliable PCB mounting power relays are necessary.

Operates with a coil voltage of 24V AC ensuring reliable activation. Double Pole Double Throw (DPDT) contact configuration provides versatile switching capabilities. Supports a switching current of up to 8A suitable for moderate power loads.

Mounts directly onto PCBs with solder terminals for secure connections. Constructed with silver nickel alloy contacts for excellent conductivity and durability. Compliant with VDE and cULus standards assuring quality and safety.

Compact dimensions of 29mm length, 12.7mm width, and 15.7mm height for space-saving installation. Operates reliably within temperature range from -40°C to 70°C. Coil resistance of 350Ω with coil power consumption of 0.76 VA for energy efficiency.

Manufactured in Austria ensuring high production standards.

For users requiring durable and energy-efficient PCB mounted Power Relays for diverse industrial and domestic applications, the TE Connectivity RT2 Series offers a reliable solution. Explore the broad EnvMart catalogue for similar electronic control components and accessories.
