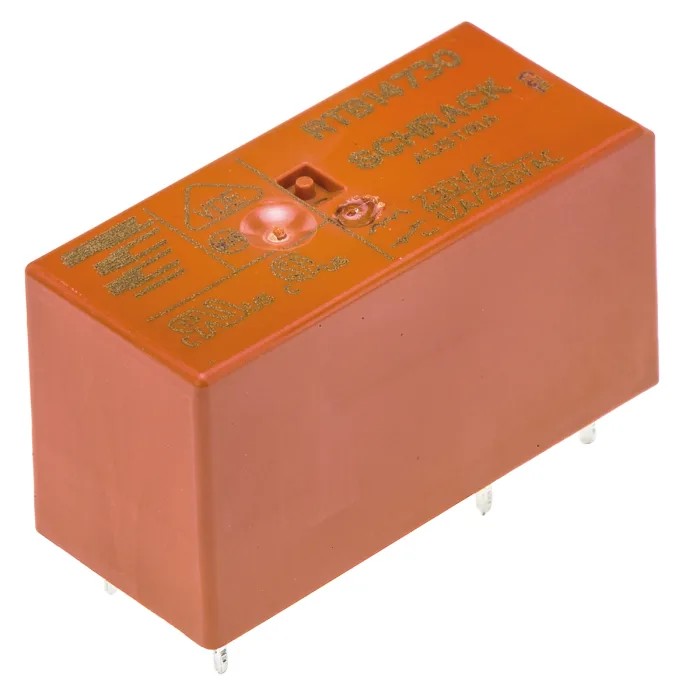

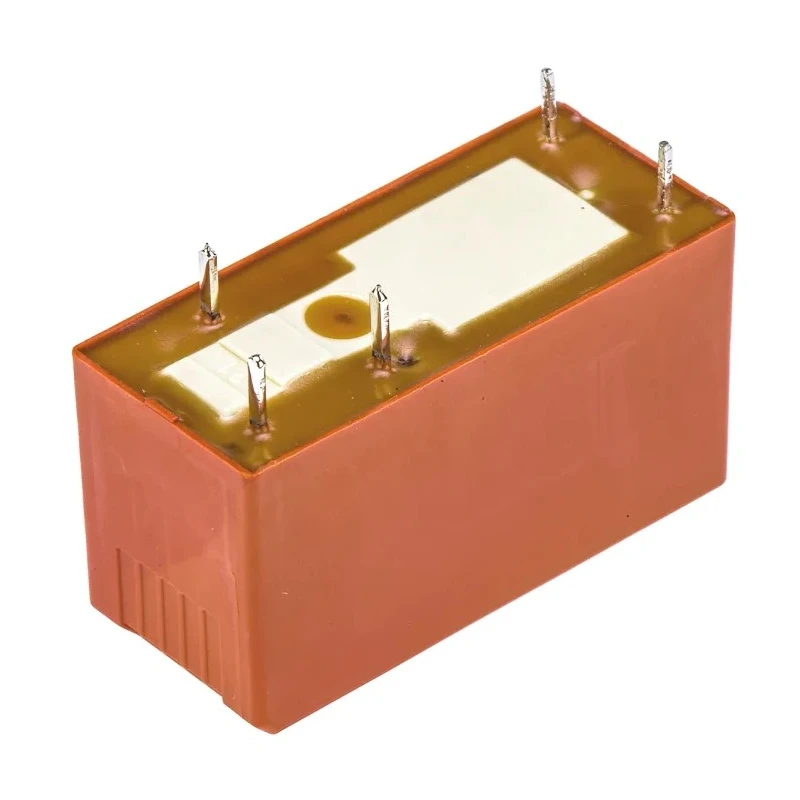

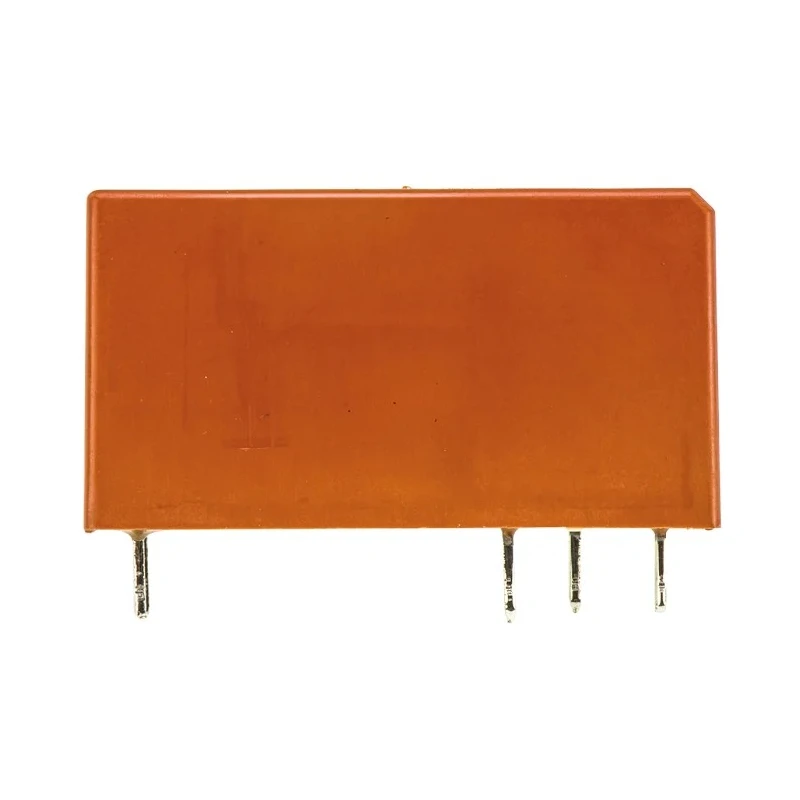

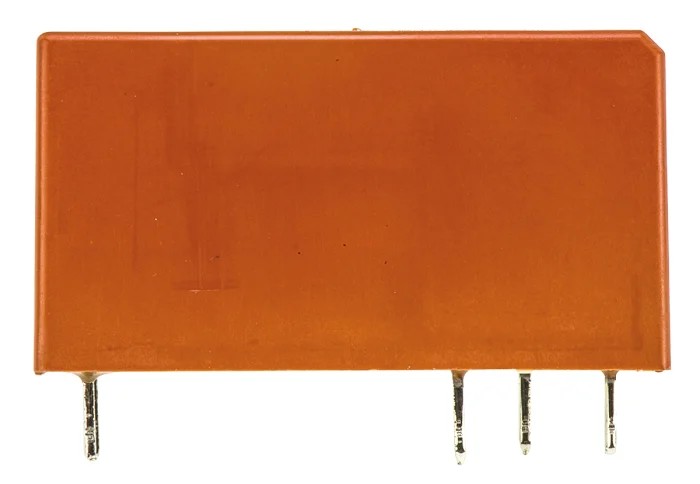

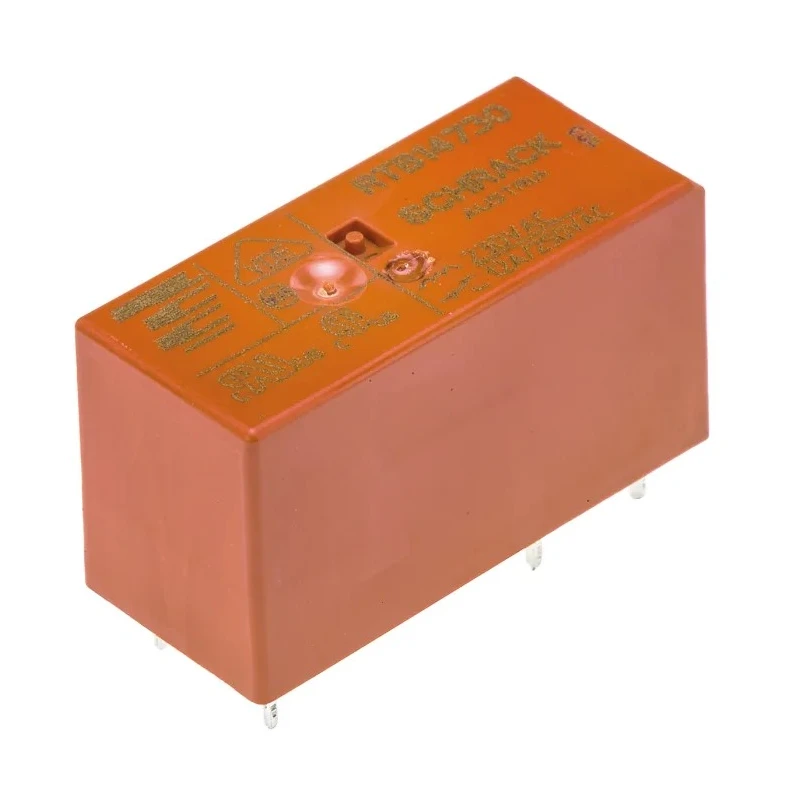

TE Connectivity RTB14730 PCB Power Relay 230V AC Coil 12A Switching Current SPDT
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTB14730 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Solder |
| Standards/Approvals | RoHS, IEC 61810 |
| Coil Resistance | 32.5kΩ |
| Coil Voltage | 230V ac |
| Switching AC Voltage | 400V ac |
| Coil Power | 500mW |
Key Features
- Designed for PCB mounting with solder terminals.

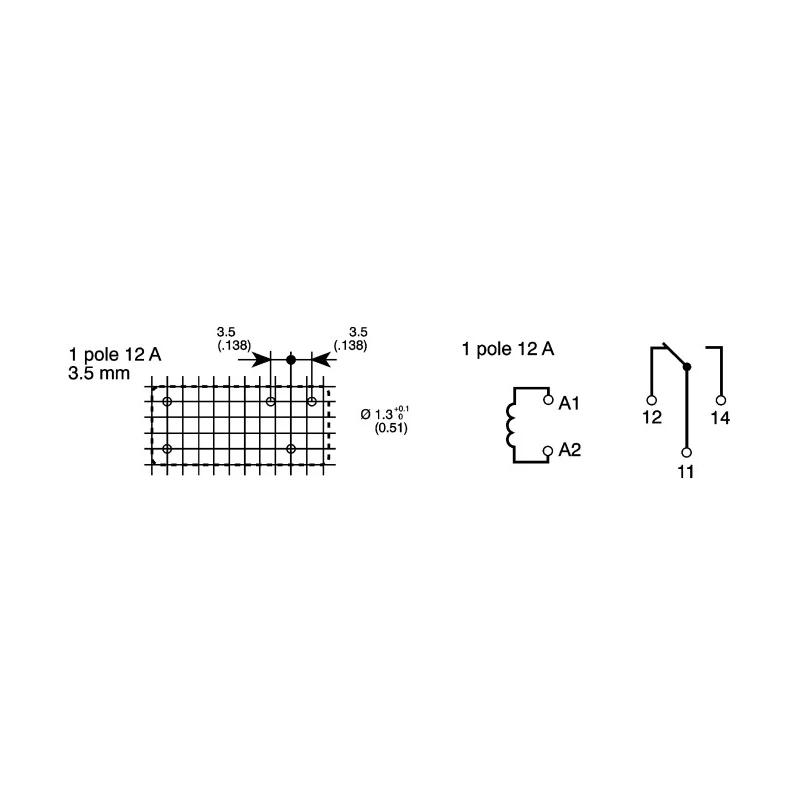

- Series RT1 with 3.5mm pinning and wash tight construction.
- Operating temperature range from -40°C to 70°C.
- Silver nickel alloy contact material ensures reliable conductivity.
- High switching power rating of 3kVA at 400V AC.
- Compliant with RoHS and IEC 61810 standards.
- Coil resistance of 32.5kΩ and coil power of 500mW.
- Ideal for automation, interface, domestic applications, and security lighting.
Product Description
TE Connectivity RTB14730 is a PCB Power Relay designed for industrial and commercial use requiring reliable switching capability at 230V AC coil voltage and 12A switching current.
This single-pole double-throw (SPDT) relay offers robust performance for interface control, automation, and domestic electrical applications. It features solder type terminals for secure PCB mounting and is part of the RT1 series with 3.5mm pinning and wash tight design, providing protection against contamination during assembly.
The relay is constructed with silver nickel alloy contacts, ensuring excellent conductivity and durability under switching loads up to 3kVA at 400V AC. Operating temperature ranges from -40°C to a maximum of 70°C allow reliable performance in varying environmental conditions.

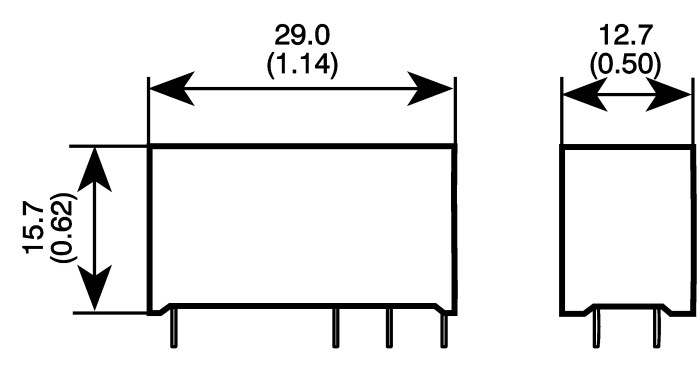

Technical specifications include a coil resistance of 32.5kΩ and coil power consumption of 500mW, with compact dimensions of 29mm length, 15.7mm height, and 12.7mm width, suitable for dense PCB layouts.
The relay complies with industry standards such as RoHS for environmental safety and IEC 61810 for relay performance and safety.
Applications span across interface control circuits, industrial automation systems, security lighting, and various domestic electrical controls, making it a versatile component for engineers and manufacturers.
Designed for PCB mounting with solder terminals. Series RT1 with wash tight construction and 3.5mm pinning. Durable silver nickel alloy contacts rated for 12A current switching. Wide operational temperature range from -40°C to 70°C.
Compact size fits standard PCB layouts efficiently. Low coil power requirement of 500mW enhances energy efficiency. High switching power of 3kVA at 400V AC supports demanding applications. Meets RoHS and IEC 61810 standards for environmental and safety compliance.
Manufactured in Austria, ensuring quality and reliability. Ideal for industrial, automation, HVAC, and security lighting use cases. Discover the full range of TE Connectivity Power Relays and components at EnvMart to improve your electrical control systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RTB14730 relay has a switching current rating of 12A.
This power relay operates with a coil voltage of 230V AC.
The dimensions of this relay are 29mm in length, 15.7mm in height, and 12.7mm in width.
The maximum operating temperature for the RTB14730 is 70°C.
It features solder type terminals for secure PCB mounting.
The relay has a single-pole double-throw (SPDT) contact configuration.
The coil resistance is 32.5kΩ.
The coil power consumption is 500mW.
The relay has a high switching power rating of 3kVA at 400V AC.
It complies with RoHS and IEC 61810 standards.
The minimum operating temperature is -40°C.
The RTB14730 is manufactured in Austria.
