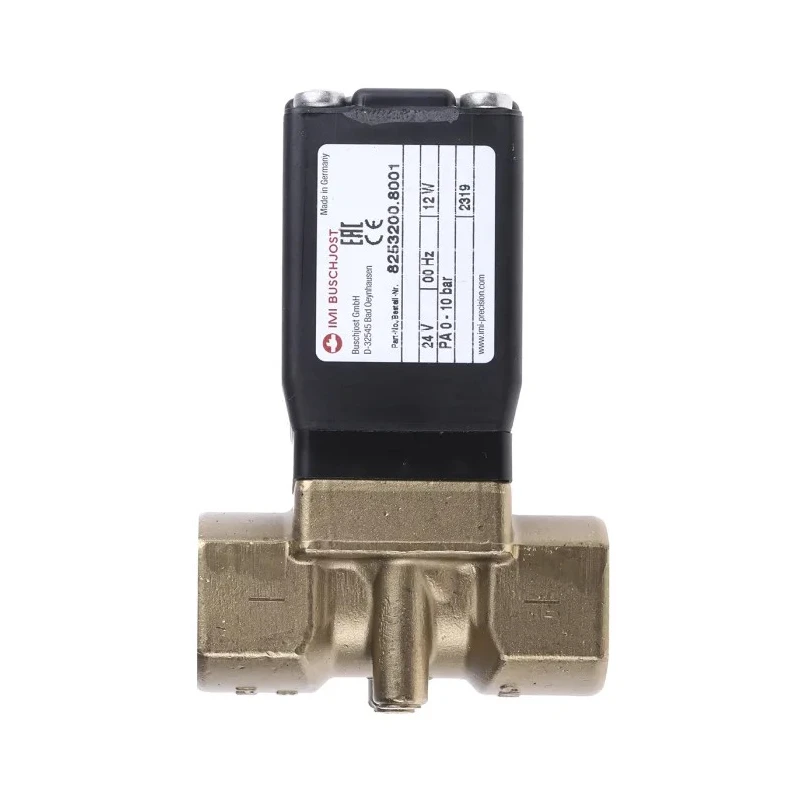

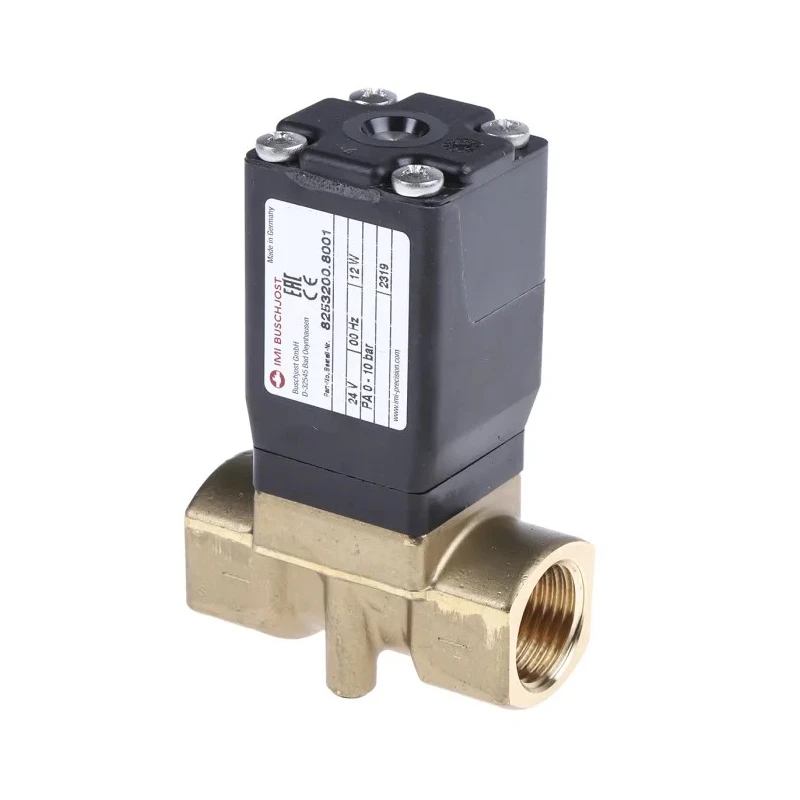

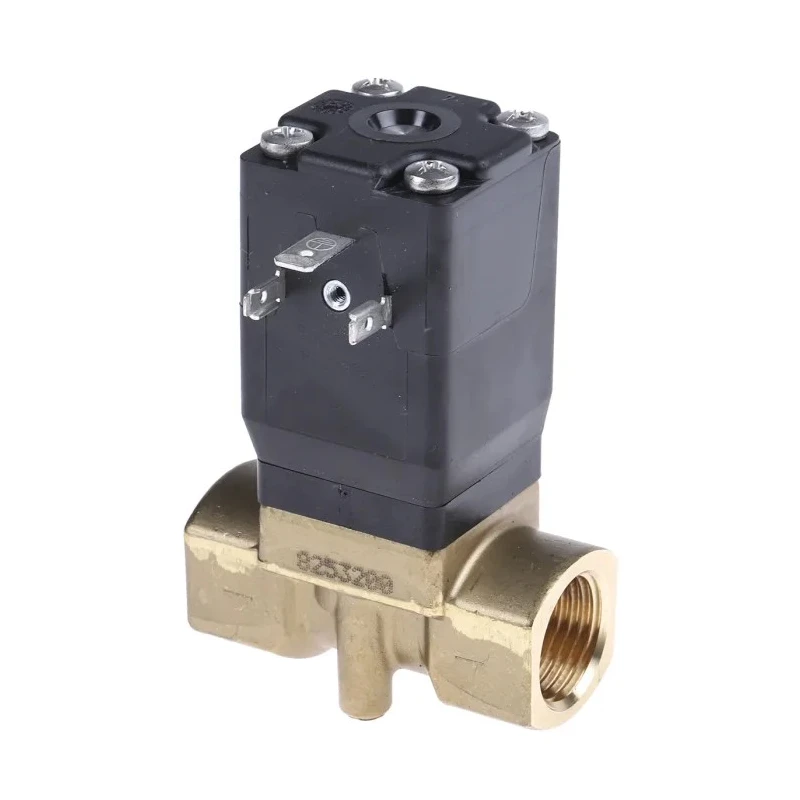

RS PRO 2 Port NC Brass Body Solenoid Valve, 24V DC, 10mm Orifice, 10 Bar Max Pressure 8253200.8001.02400
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Body Material | Brass |
| Maximum Operating Pressure | 10 bar |
| Series | 82530/82630 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -10°C |
| Orifice Diameter | 10mm |
| Supply Voltage | 24V dc |
| Hazardous Area Certification | ATEX |
| Default Valve Position | NC |
| Flow Factor Kv | 1.7m³/h |
| RS PRO Solenoid Valve, 2 Port, NC, 24V 1/2 in, 1/2 inRS Stock No. | 671-487Brand: RS PRO |
| SMC Solenoid Valve VXD2130-04F-5D1, 2 port(s) , NC, 24 V dc, 1/2inBrand | SMC |
Key Features
- This valve operates at 24V DC and is normally closed (NC).
- Features a maximum operating pressure of 10 bar and a flow factor Kv of 1.7 m³/h.
- The valve body is made of durable brass material with NBR seals for neutral gases and liquids.
- Operating temperature ranges from -10°C to 50°C, suitable for vacuum applications.
- Includes servo assist and fixed flow direction for consistent performance.
- Rated to IP65 protection standard, compliant with multiple industrial certifications.
- Compact solenoid with integrated core tube ensures high flow capability without minimum pressure differential.
- Designed according to DIN and EN standards ensuring electromagnetic compatibility and safety.
Product Description
The Buschjost 8253200.8001.02400 is a high-quality 2 port normally closed (NC) solenoid valve with a brass body designed for industrial and HVAC applications requiring reliable fluid control. Operating at 24V DC, this valve features an orifice diameter of 10 mm and supports a maximum operating pressure of 10 bar, making it suitable for controlling neutral gases and liquids with high efficiency.
Constructed with robust brass material and NBR seals, the valve ensures durability and chemical resistance in neutral media environments. Its servo assist and fixed flow direction design provide consistent valve operation without the need for a minimum pressure differential. The valve is engineered for use in vacuum scenarios as well, expanding its utility.
The device meets rigorous industrial standards including DIN VDE 0580, Electromagnetic Compatibility Guideline 2004/108/EG, PED 97/23/EG, EN 61000-6-1, DIN EN 175301-803, EN 61000-6-3, and offers an IP65 ingress protection rating, assuring resistance to dust and water ingress. Additionally, the valve carries ATEX hazardous area certification, qualifying it for use in potentially explosive atmospheres.
With a flow factor Kv of 1.7 m³/h, this valve supports high flow capability while maintaining electromagnetic operation through forced lift action. The operating temperature range from -10°C to 50°C covers a broad spectrum of industrial environments.
This solenoid valve is ideal for applications in industrial automation, fluid power, HVAC systems, water treatment, and manufacturing processes demanding precise control of fluids and gases. Its compact design facilitates integration into various assemblies.
Reliable electromagnetic operation with brass body and NBR seals. 24V DC supply voltage with normally closed 2 port configuration. Maximum operating pressure of 10 bar and operating temperature from -10°C to 50°C. Flow factor Kv of 1.7 m³/h ensures high flow capability.
Compliant with DIN, EN standards and IP65 rated. ATEX certified for hazardous area applications. Servo assist and fixed flow direction for consistent valve actuation. Suitable for neutral gases and liquids, including vacuum use.
Explore more Solenoid Valves and fluid control solutions in the Industrial Valves category on EnvMart for enhanced industrial performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 10 bar.
This model operates at a supply voltage of 24V DC.
The orifice diameter of the valve is 10 mm.
The flow factor Kv for this solenoid valve is 1.7 m³/h.
The operating temperature range for this valve is from -10°C to 50°C.
This valve has ATEX certification for hazardous area applications.
The valve body is made of brass, and it features NBR seals for neutral gases and liquids.
Yes, this valve is suitable for vacuum applications.
The default valve position for this model is normally closed (NC).
This valve complies with several industrial standards including DIN VDE 0580 and the Electromagnetic Compatibility Guideline 2004/108/EG.
The servo assist feature allows for consistent valve operation without the need for a minimum pressure differential.
This solenoid valve has 2 ports.
