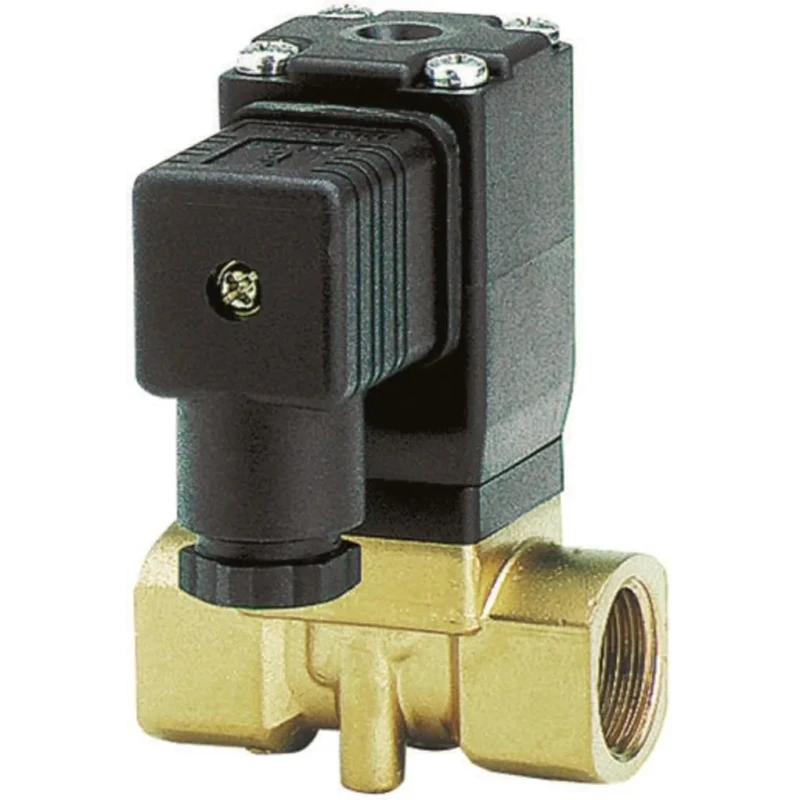

RS PRO Solenoid Valve 2 Port, Normally Closed, 24V DC, Brass Body, 10mm Orifice Diameter 8253000.8001.02400
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | RS PRO |
| Body Material | Brass |
| Maximum Operating Pressure | 10 bar |
| Inlet Connection Type | Threaded |
| Series | 82530 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -10°C |
| Orifice Diameter | 10mm |
| Supply Voltage | 24V dc |
| Default Valve Position | NC |
| Flow Factor Kv | 1.5m³/h |
| RS PRO Solenoid Valve, 2 Port, NC, 24V 1/4 in, 1/4 inRS Stock No. | 671-490Brand: RS PRO |
Key Features
- The valve is designed for electromagnetic operation with forced lift and fixed flow direction.
- It operates effectively between -10°C and 50°C temperature range.
- The maximum operating pressure is 10 bar, enabling high flow capability.
- The valve has a flow factor (Kv) of 1.5 m³/h, ensuring efficient fluid control.
- It features a compact solenoid with integrated core tube and NBR seal for long service life.
- Standards compliance includes DIN VDE 0580, EN 61373, EN 60529 IP65, and DIN EN 175301-803.
- This solenoid valve is manufactured in Germany and suitable for industrial applications including vacuum systems.
Product Description
The Buschjost 8253000.8001.02400 solenoid valve is a high-quality industrial valve with a 2 port design and normally closed (NC) default valve position. Powered by 24V DC, the valve body is constructed from robust brass material, combined with an NBR seal, making it suitable for neutral gaseous and liquid fluids.
It features an orifice diameter of 10mm and supports maximum operating pressures up to 10 bar while sustaining operating temperatures from -10°C up to 50°C. The valve employs electromagnetic forced lift operation with fixed flow direction and is designed to work effectively without a minimum pressure differential.
With a flow factor Kv of 1.5 m³/h, this valve provides high flow capability for a variety of industrial uses such as air control, hand wash basin tap operations, vacuum technology, small-size drain applications, and shut off valve scenarios.
The solenoid valve complies with multiple international standards including DIN VDE 0580 for electrical equipment, EN 61373 for shock and vibration tests, EN 60529 IP65 ingress protection for dust and water resistance, and DIN EN 175301-803 for solenoid valve coils.
Manufactured in Germany, this valve is engineered for reliability and durability in harsh industrial environments. Its compact solenoid with integrated core tube design enhances performance and longevity. Its brass construction ensures chemical resistance and mechanical strength.
The valve's maximum working pressure is rated at 10 bar. Flow factor (Kv) is 1.5 m³/h for efficient fluid passage. Electromagnetic operation with forced lift allows precise control. Temperature operating range is from -10°C to 50°C.
Compact brass body with NBR seal enhances durability. The valve operates without a minimum pressure differential, providing stability in vacuum applications. IP65 rated with international approvals for electrical and mechanical standards.
This Buschjost solenoid valve is ideal for various industrial, laboratory, manufacturing, HVAC, and fluid power applications requiring dependable control of air, water, and vacuum systems.
Explore more Solenoid Valves and related industrial valves at EnvMart, your trusted partner for quality industrial components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 10 bar.
This model operates on a supply voltage of 24V DC.
The valve operates effectively between -10°C and 50°C.
The orifice diameter of this solenoid valve is 10mm.
The flow factor (Kv) for this valve is 1.5 m³/h.
The default valve position for this model is normally closed (NC).
The valve body is constructed from brass and features an NBR seal.
Yes, this solenoid valve is designed to operate effectively in vacuum applications without a minimum pressure differential.
This valve complies with DIN VDE 0580, EN 61373, EN 60529 IP65, and DIN EN 175301-803.
This solenoid valve is manufactured in Germany.
This model is suitable for neutral gaseous and liquid fluids.
It is suitable for various industrial applications including air control, vacuum technology, and small-size drain applications.
