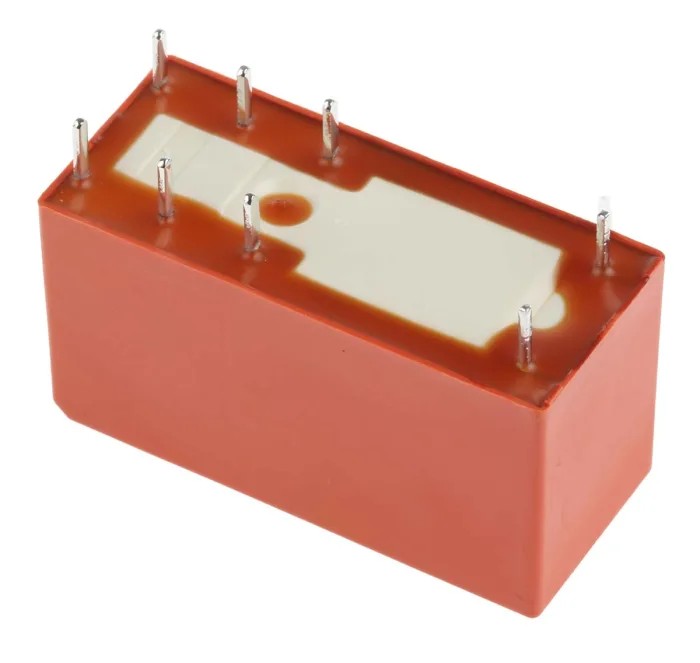

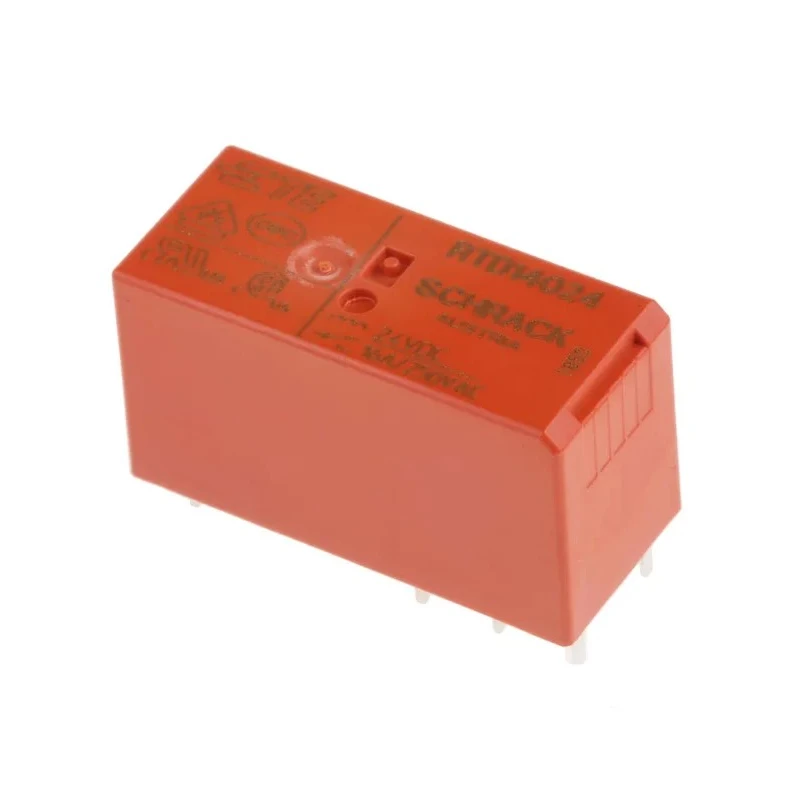

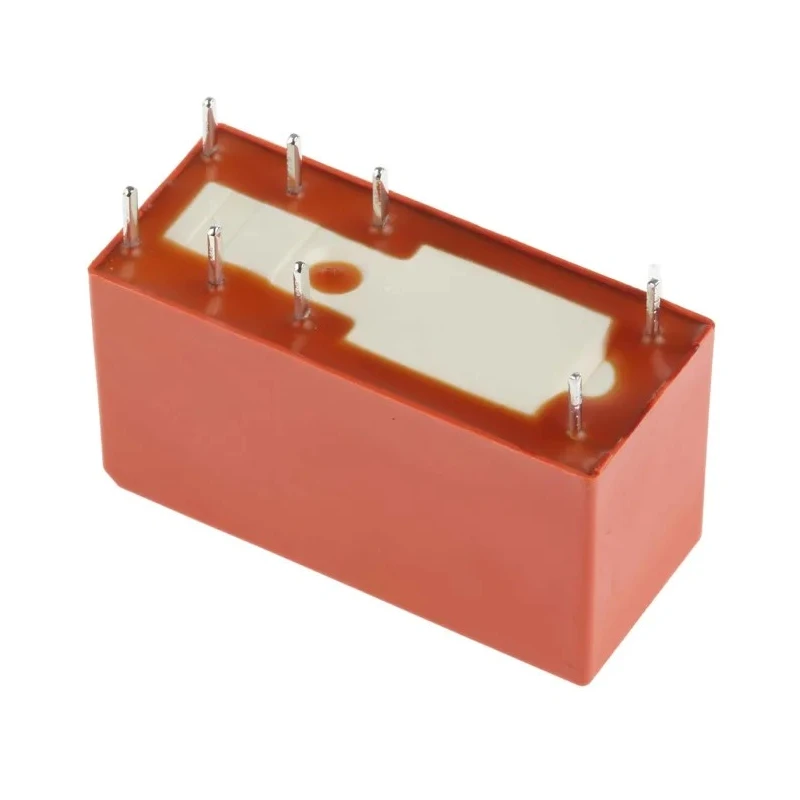

TE Connectivity PCB Power Relay 24V DC Coil 16A Switching Current SPDT RTD14024
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTD14024 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- Designed for PCB mounting with through-hole terminal type.
- High switching AC voltage rating of 400V AC for versatile applications.
- Operates reliably within -40°C to 85°C temperature range.
- Constructed with silver nickel alloy contacts for durability and excellent conductivity.
- Compact size with 29mm length, 12.7mm width, and 15.7mm height.
- Low coil power consumption at 400mW ensures energy efficiency.
- Meets RoHS standards ensuring compliance with environmental regulations.
- Manufactured in Austria with high quality and precision.
Product Description
TE Connectivity RTD14024 PCB Power Relay combines robust performance and compact design suited for industrial, automation, and electrical applications requiring reliable switching control on printed circuit boards. Featuring a 24V DC coil and a single pole double throw (SPDT) contact configuration, this power relay handles switching currents up to 16A and switching voltages up to 400V AC, making it ideal for controlling medium power loads.

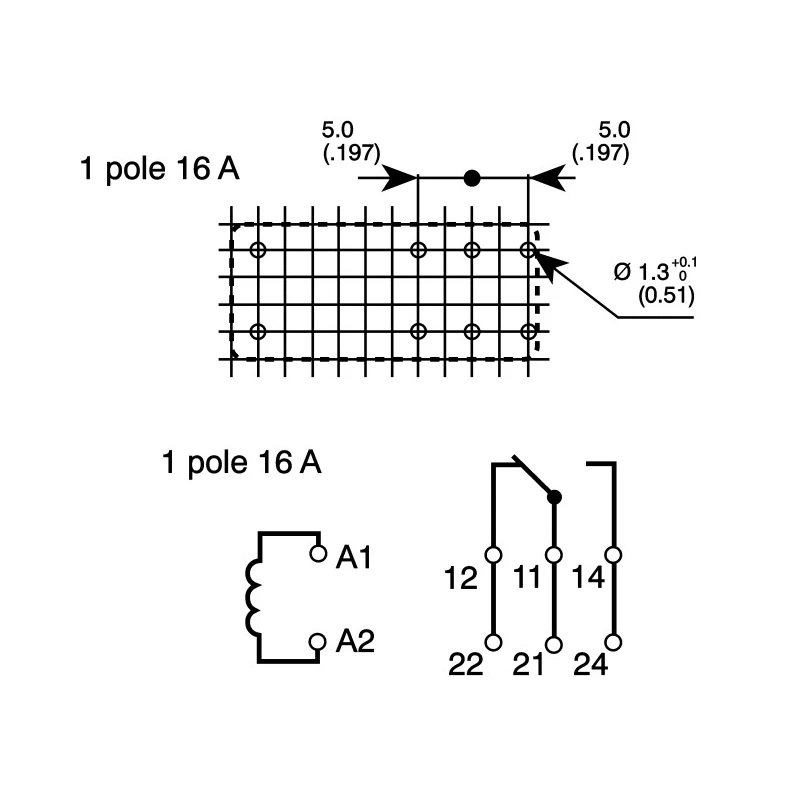

The relay adopts a through-hole mount type with 5mm pinning, optimized for PCB integration allowing flow-through soldering and easy installation. Constructed with silver nickel alloy contacts, the relay provides enduring conductivity and resistance to wear, ensuring long service life even in demanding electrical environments.
With an operating temperature range from -40°C to 85°C, the RTD14024 power relay is suitable for a wide variety of environments including industrial automation, domestic applications, security lighting, and heating systems. Its coil resistance of 1.4kΩ and low coil power of 400mW contribute to efficient energy use alongside reliable actuation.
The relay complies with RoHS environmental standards, underscoring TE Connectivity’s commitment to sustainable manufacturing practices. Manufactured in Austria, the RTD14024 demonstrates premium craftsmanship and stringent quality control, ensuring consistent performance and safety.
Common applications include interface circuits, automation controllers, and equipment requiring multiple contact configurations that demand robust switching capacities. The RT series relays support a range of coil voltages and contact arrangements tailored for various use cases, with RTD series distinguished by wash tight pinning suitable for PCB mounting reliability.
Designed for PCB mounting with through-hole terminal type. High switching AC voltage rating of 400V AC for versatile applications. Operates reliably within -40°C to 85°C temperature range. Constructed with silver nickel alloy contacts for durability and excellent conductivity.
Compact size with 29mm length, 12.7mm width, and 15.7mm height. Low coil power consumption at 400mW ensures energy efficiency. Meets RoHS standards ensuring compliance with environmental regulations. Manufactured in Austria with high quality and precision.
Explore more Power Relays and complementary components at EnvMart for your next industrial or automation project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can handle a switching current of up to 16A.
The coil voltage for this relay is 24V DC.
It has a high switching AC voltage rating of 400V AC.
The dimensions of this model are 29mm in length, 12.7mm in width, and 15.7mm in height.
This relay features a single pole double throw (SPDT) contact configuration.
The coil resistance for this relay is 1.4kΩ.
It operates reliably within a temperature range of -40°C to 85°C.
The contacts are constructed from silver nickel alloy, providing excellent conductivity.
Yes, it meets RoHS standards, ensuring compliance with environmental regulations.
This model is designed for PCB mounting with a through-hole terminal type.
This relay is manufactured in Austria, showcasing high quality and precision.
It is suitable for industrial automation, domestic applications, security lighting, and heating systems.
