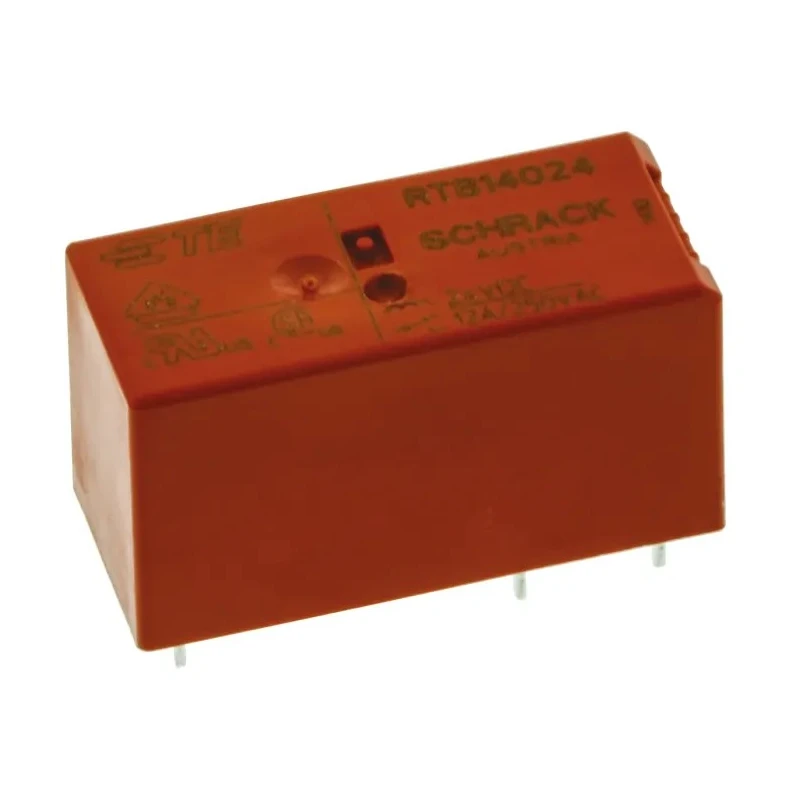

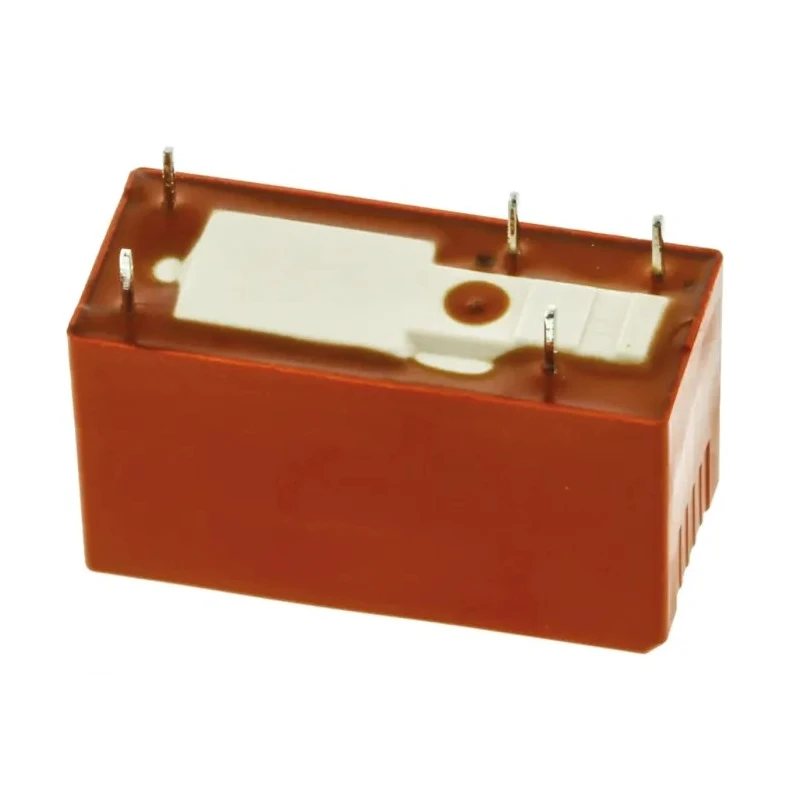

TE Connectivity PCB Power Relay 24V DC Coil 12A Switching Current SPDT RTB14024

TE Connectivity RTB14024 PCB Power Relay is a high quality power relay designed for printed circuit board mounting applications, featuring a 24V DC coil and a 12A switching capacity. This SPDT (Single Pole Double Throw) relay is part of the RT1 series, optimized for automation and industrial control use cases.

The relay’s coil power is 400mW, making it energy-efficient for continuous operation. Its contacts are made from silver nickel alloy, ensuring excellent conductivity and long service life. The device operates within a wide ambient temperature range from -40°C to 85°C, suitable for harsh industrial environments.

Dimensionally compact with a length of 29mm, width of 12.7mm, and height of 15.7mm, it fits effectively into PCB layouts with solder terminal connections for secure mounting. The relay supports switching AC voltage of up to 400V AC and switching power up to 3kVA.

Compliant with industry standards including cULus and VDE, the RTB14024 relay is manufactured in Austria, ensuring premium build quality and reliability. Typical applications include automation systems, interface circuits, domestic electrical appliances, security lighting, and heating controls.

Designed for PCB mounting with solder terminals for secure connection. Coil power consumption is 400mW ensuring energy efficient operation. Operational ambient temperature range from -40°C to 85°C suits industrial environments.

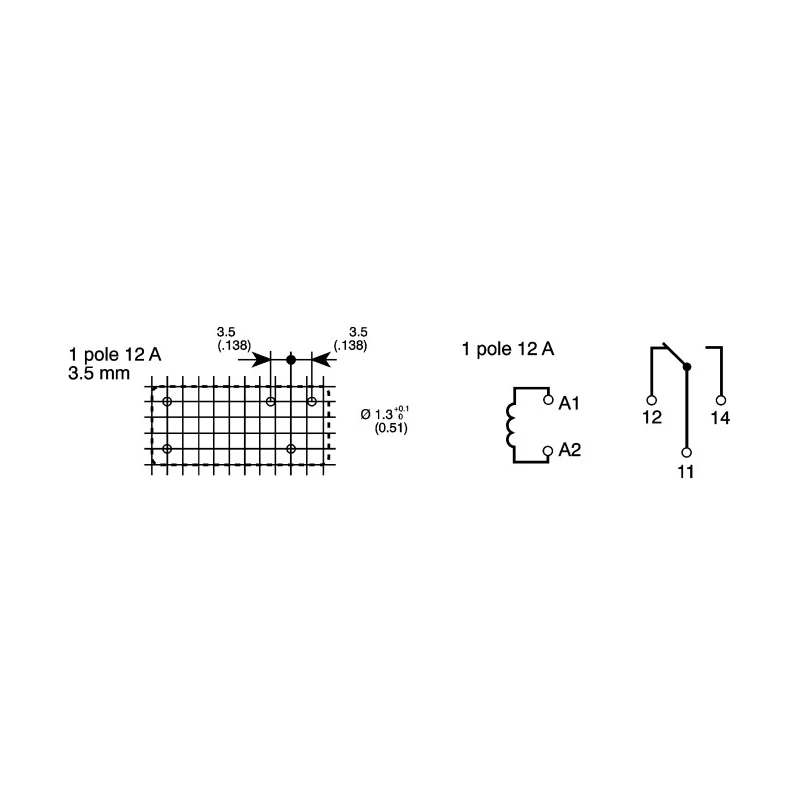

Robust silver nickel alloy contacts for durable performance. Compact size and pin configuration suitable for integration in PCBs. Supports switching power up to 3kVA and 400V AC voltage. Compliant with cULus and VDE standards for safety and performance.

Manufactured in Austria maintaining high-quality standards. Ideal for automation, security lighting, heating systems, and interface applications. Explore the full range of Power Relays and components at EnvMart for your electrical and industrial automation requirements.
