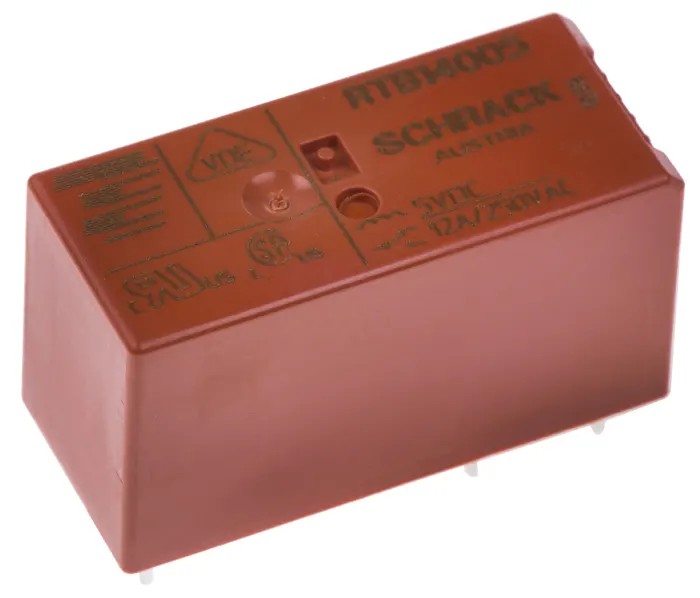

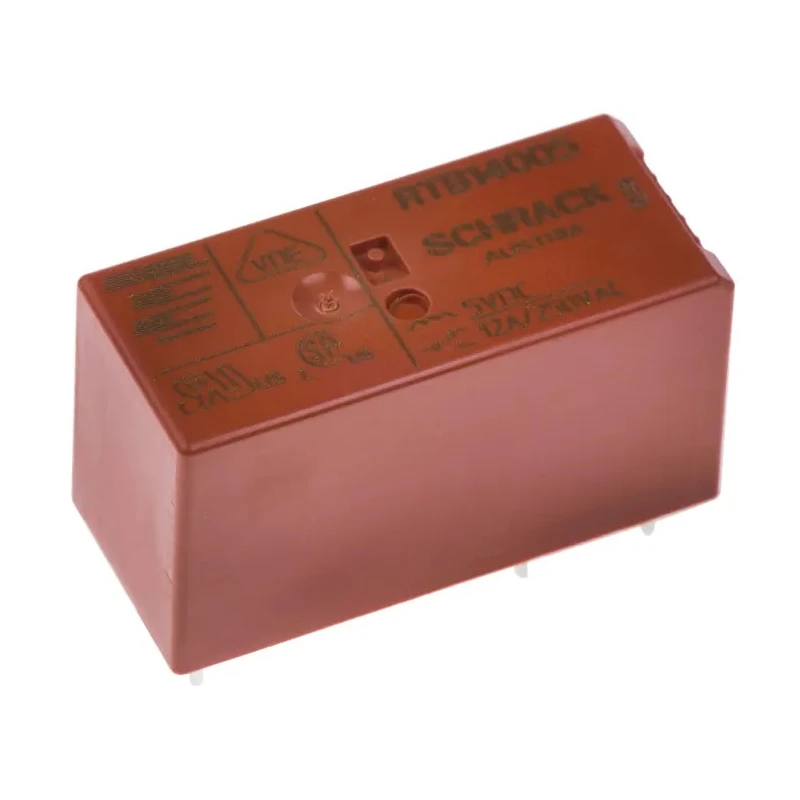

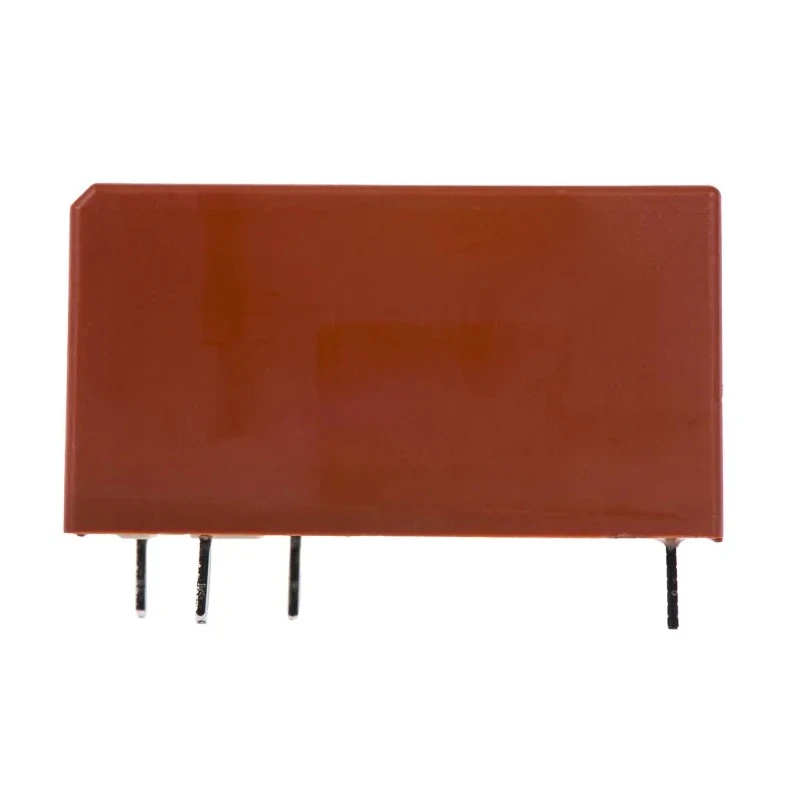

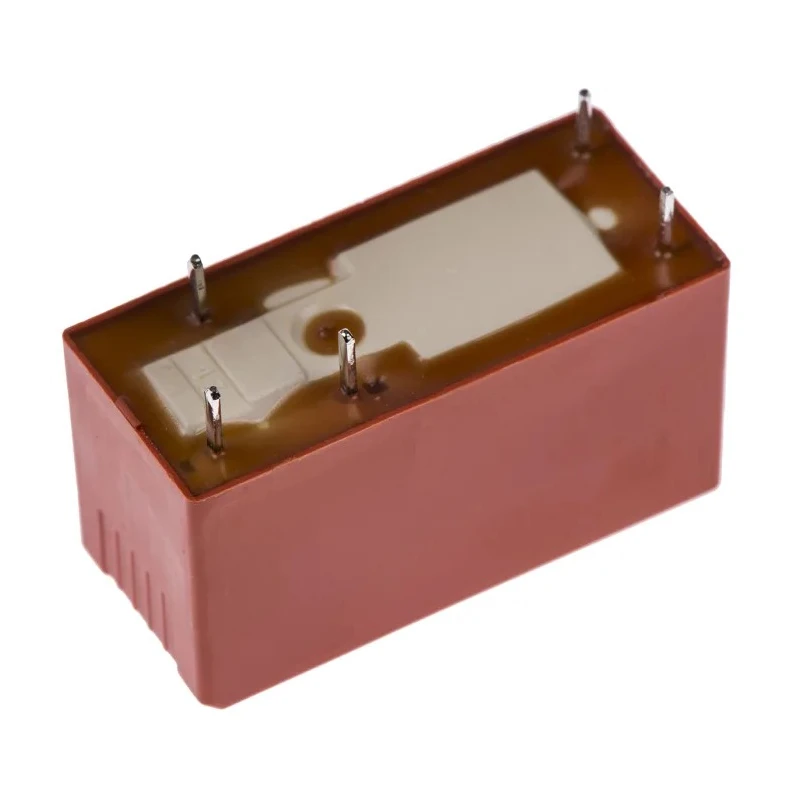

TE Connectivity PCB Power Relay, 5V DC Coil, 12A Switching Current, SPDT RTB14005
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTB14005 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Solder |
| Standards/Approvals | RoHS, IEC 61810 |
| Coil Resistance | 62Ω |
| Coil Voltage | 5V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 500mW |
Key Features
- Designed for PCB mounting with solder terminals for reliable connection.
- Operates within -40°C to 85°C temperature range ensuring durability.
- Switching power rating up to 3kVA and AC voltage of 400V.
- Constructed with silver nickel alloy contacts for high conductivity.
- Coil resistance measures 62Ω with coil power of 500mW for efficiency.
- Meets RoHS and IEC 61810 standards for safety and compliance.
- Manufactured in Austria to high quality standards.
Product Description
TE Connectivity RTB14005 PCB Power Relay is a high-quality industrial component designed for reliable switching in electrical and automation systems. Featuring a 5V DC coil and a switching capacity of 12A, this relay supports SPDT contact configuration suitable for diverse PCB mounting applications.
The relay dimensions of 29mm length, 12.7mm width, and 15.7mm height make it compact and convenient for dense PCB layouts. It operates effectively under temperatures ranging from -40°C to 85°C, ensuring stable performance in harsh environments.
The contact material is silver nickel alloy, contributing to excellent electrical conductivity and durability. With a switching power of 3kVA and switching AC voltage support up to 400V, it is ideal for interface, automation, security lighting, and heating systems. The coil resistance of 62Ω and coil power of 500mW ensures efficiency and low power consumption.

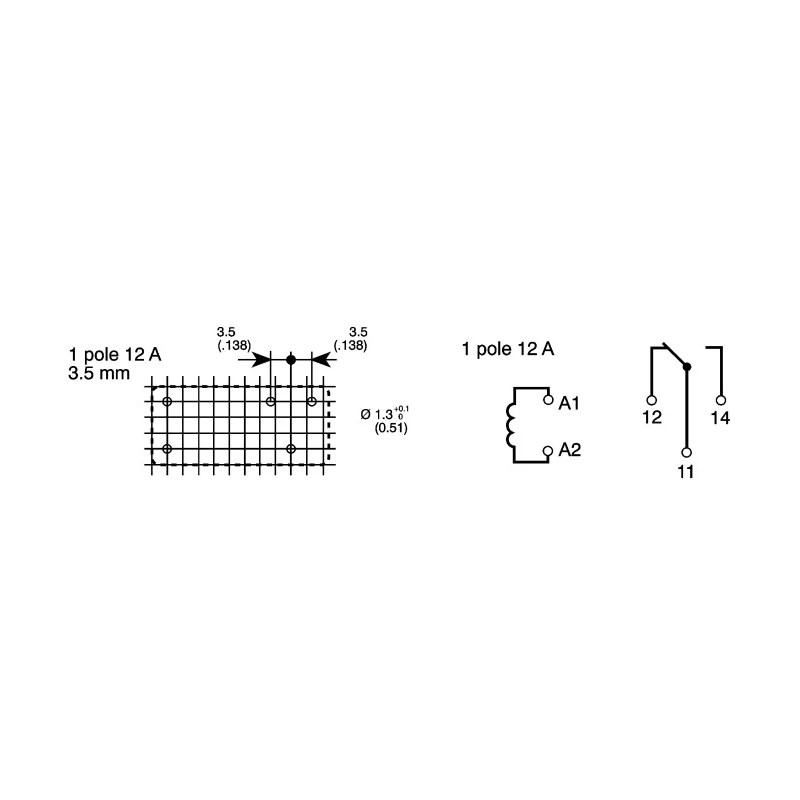

This RTB14005 model belongs to the RT1 series, known for its 3.5mm pinning and wash tight construction that protects against environmental factors. The relay meets key industry standards including RoHS and IEC 61810, making it compliant with modern safety requirements.
Manufactured in Austria, this product assures quality and reliability for industrial, commercial, and domestic power relay needs. Designed for reliable PCB mounting in automation and electrical systems. Compact size suitable for space-constrained applications.
Wide operating temperature range for various environments. Silver nickel alloy contacts provide superior electrical performance. Conforms to international safety and environmental standards. Energy efficient coil requiring only 500mW power.
High switching current and voltage for versatile applications. Robust and durable construction to suit industrial uses.
This TE Connectivity RTB14005 relay is an excellent choice for engineers and designers seeking dependable power relays for their PCB-based projects. Explore more Power Relays and connectivity solutions in our Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RTB14005 relay has a switching current capacity of 12A.
This model operates with a coil voltage of 5V DC.
The dimensions of this relay are 29mm in length, 12.7mm in width, and 15.7mm in height.
The maximum operating temperature for the RTB14005 is 85°C.
It features a Single Pole Double Throw (SPDT) contact configuration.
The relay has a switching power rating of up to 3kVA.
The contacts are constructed from silver nickel alloy, which provides high conductivity.
This relay meets RoHS and IEC 61810 standards for safety and compliance.
The coil resistance measures 62Ω.
The RTB14005 is designed for PCB mounting with solder terminals.
The minimum operating temperature is -40°C.
This relay is manufactured in Austria.
