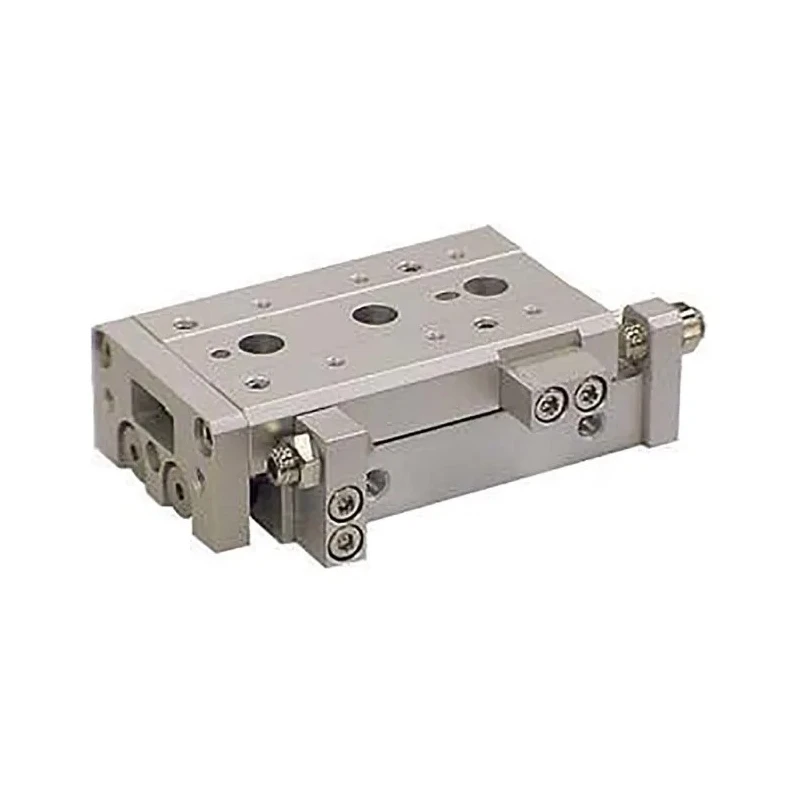

SMC Pneumatic Guided Cylinder 6mm Bore Double Acting Through Hole Mount Aluminium Alloy Body MXSL Series MXS6L-10

SMC MXS6L-10 pneumatic guided cylinder is a precision pneumatic actuator featuring a compact 6mm bore diameter and 10mm stroke length. The double acting cylinder is constructed with a robust aluminium alloy body and utilizes a slide bearing guide to ensure smooth piston movement and exact positioning. Its through hole mount type allows secure and flexible installation in industrial equipment.

With a maximum operating pressure of 0.7 Mpa and rubber bumpers providing effective cushioning, this cylinder is designed for reliable performance under various demanding industrial conditions. It offers operational temperature range between -10°C and 60°C for broad applicability.

The compact dimensions of 48mm length, 32mm width, and 20mm height along with a light gross weight of 80 grams make it suitable for installation in tight spaces without sacrificing durability. The product also supports stroke adjustment for customizing the exact piston extension and retraction.

The MXSL series accommodates a variety of bore sizes from 6mm up to 25mm and stroke lengths from 5mm to 150mm depending on bore size, enabling versatility for different pneumatic tasks. Optional buffers and axial piping enhance performance and integration options.

This guided cylinder is ideal for use in industrial automation, manufacturing lines, laboratory equipment, and pneumatic mechanisms demanding accurate and controlled linear motion.

The cylinder mounts via through hole, providing stable installation during operations. It operates under a maximum pressure of 0.7 Mpa, suitable for precise pneumatic control. Rubber bumpers provide cushioning to reduce impact during piston movements.

The slide bearing guide ensures smooth, accurate piston operation. Designed to work between -10°C to 60°C, supporting various industrial environments. Compact dimensions include 48mm length, 32mm width, and 20mm height, with a lightweight design of 80 grams.

Options available include buffer and axial piping for enhanced customization. Compatible with multiple bore sizes ranging from 6mm to 25mm and strokes from 5mm to 150mm depending on bore size. Manufactured in Japan to ensure high quality and reliability.

Explore our extensive pneumatic component range at EnvMart for precision Pneumatic Guided Cylinders and actuators by SMC.
