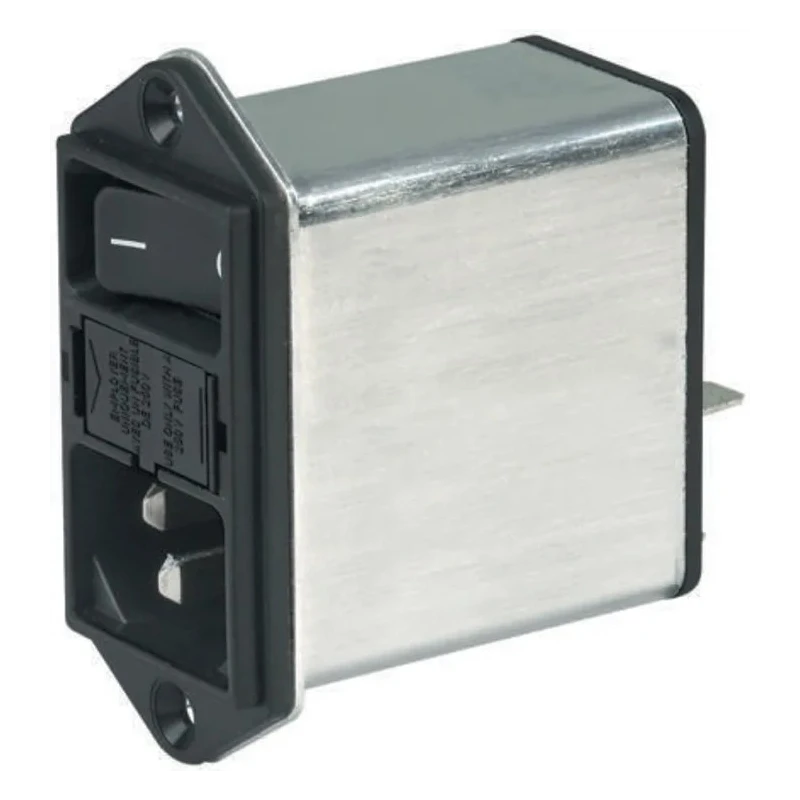

Schurter 250V ac 1A Panel Mount IEC Connector Male 2 Pole 2 Fuse Quick Connect DD12.1121.111

Free Delivery in India | Lowest Global Shipping Charges

Schurter 250V ac 1A Panel Mount IEC Connector Male 2 Pole 2 Fuse Quick Connect DD12.1121.111

Name: Schurter 250V ac 1A Panel Mount IEC Connector Male 2 Pole 2 Fuse Quick Connect DD12.1121.111
Brand: Schurter
SKU: 161560
Price: 44.64 USD
Availability: InStock



Category IEC Connector Brand Schurter Condition New

Specifications

Country of Origin	India
Voltage	250V ac
Brand	Schurter
Current	1A

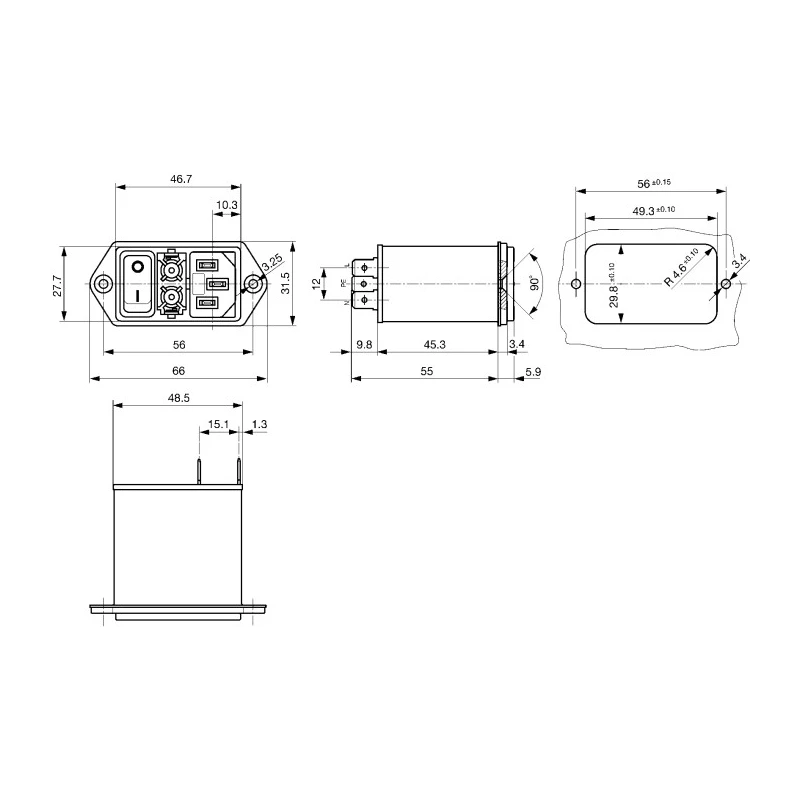

Height	31.5mm
Model	DD12.1121.111
Filter Type	Line
Depth	60.9mm
Width	66mm
Mount Type	Panel Mount
Operating Frequency	60Hz
Switch Type	2 Pole
Termination Type	Quick Connect
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Panel Mount	Screw on from front side
Contact Gender	Male
Connector Gender	Male
Fuse Size	5 x 20 mm
Number of Fuses	2
IEC Connector Type	C14

Key Features

The connector features a compact aluminum case for excellent shielding.

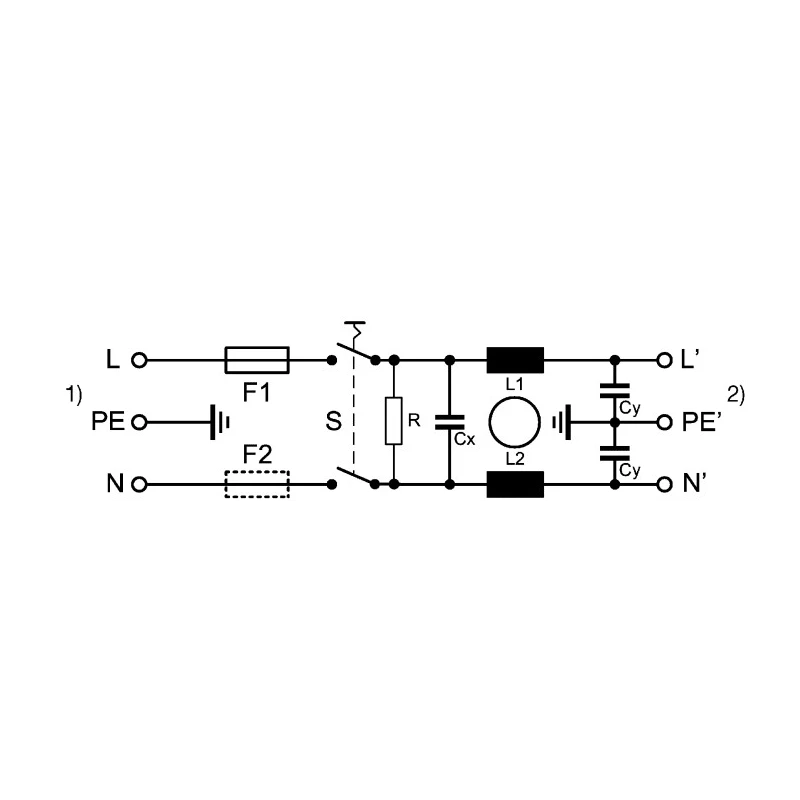

It supports a 2 pole switch type designed for line filter applications.
The fuse size is 5 x 20 mm with a capacity for two fuses (not included).
The IEC connector type is C14, suitable for panel mount installation from the front side.
Operating frequency is 60Hz with temperature tolerance from -25°C to 85°C.
Quick connect terminals measure 6.3 x 0.8 mm providing easy wiring.
Its ultra-compact design meets medical IEC/EN 60601-1 standards for high transient load applications.
Recommended for use in standard and medical equipment environments.

Product Description

Schurter DD12.1121.111 IEC Connector is a high-quality, 250V ac rated male panel mount connector featuring a 1A current rating and two fuse slots designed for robust line filter applications. Its ultra-compact aluminum case provides strong electromagnetic shielding, making it ideal for use in demanding industrial and medical environments.

The connector employs a 2 pole switch type with quick connect terminations sized at 6.3 x 0.8 mm, offering reliable and simple wiring solutions. Designed specifically for panel mounting, it can be easily attached via screws from the front side, facilitating accessible installation and maintenance.

Fuse slots support 5 x 20 mm fuses (sold separately), which are compliant with medical standard IEC/EN 60601-1, ensuring operational safety and compliance in sensitive applications. This connector is rated for an operating frequency of 60Hz, withstanding temperature ranges from -25°C to 85°C, providing dependable performance across diverse industrial conditions.

Applications include medical devices, industrial machinery, and commercial equipment requiring secure and efficient power connections with EMI shielding. The design qualified to IEC/EN 60950 standards underlines its suitability for technical and medical purposes, offering versatile use in electronics manufacturing, water treatment systems, and HVAC controls.

The connector features a compact aluminum case for excellent shielding. It supports a 2 pole switch type designed for line filter applications. The fuse size is 5 x 20 mm with a capacity for two fuses (not included). The IEC connector type is C14, suitable for panel mount installation from the front side.

Operating frequency is 60Hz with temperature tolerance from -25°C to 85°C. Quick connect terminals measure 6.3 x 0.8 mm providing easy wiring. Its ultra-compact design meets medical IEC/EN 60601-1 standards for high transient load applications.

Recommended for use in standard and medical equipment environments. Explore other IEC Connectors and power connectors within the Electronics & Electricals category on EnvMart for comprehensive industrial and electronic component needs.
