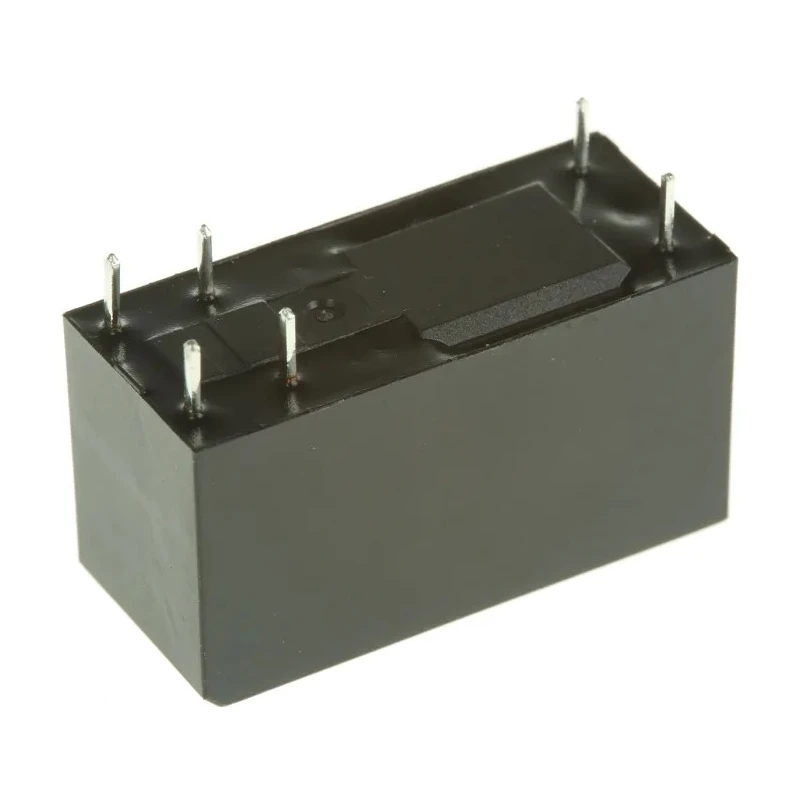

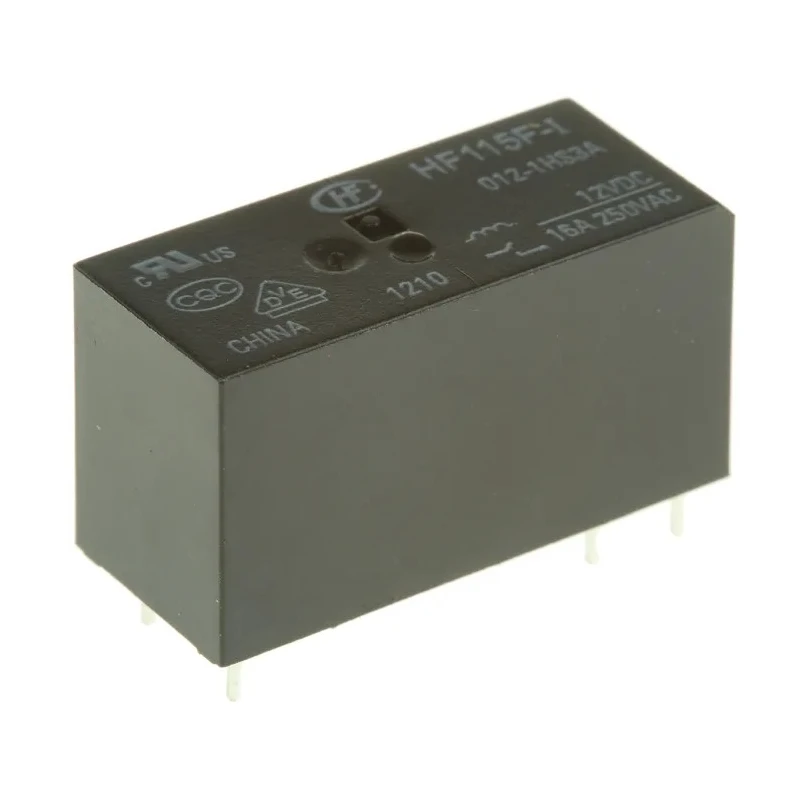

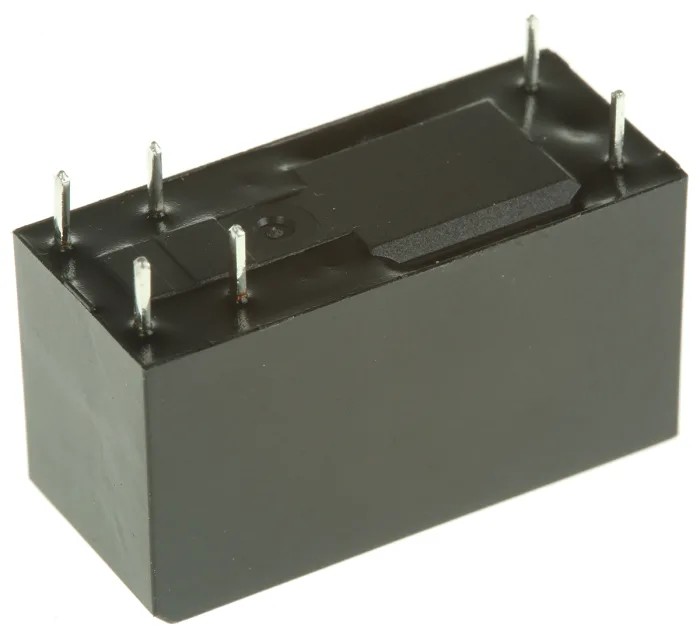

RS PRO PCB Power Relay 12V dc Coil 16A Switching Current SPST 400mW Coil Power 29mm x 15.7mm x 15.7mm 0476703P
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 15.7mm |
| Length | 29mm |
| Model | 0476703P |
| Width | 15.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 300V dc |
| Switching AC Voltage | 440V ac |
| Coil Power | 400mW |
| Standards and Approvals | IEC 60335-1, UL, CUL, CQC, VDE, RoHS compliant |
Key Features
- Features a Single Pole Single Throw (SPST) contact configuration.
- Supports a maximum switching DC voltage of 300V and AC voltage of 440V.
- Coil power consumption is low at 400mW with coil resistance of 360Ω.
- Offers excellent moisture resistance with a plastic sealed and flux proofed design.
- Compact size of 29mm length, 15.7mm width, and 15.7mm height is ideal for space-constrained PCBs.
- Contact material of silver alloy ensures durability and low resistance of 100mΩ.
- Capable of withstanding vibration frequencies between 10Hz and 150Hz.
- Suitable for industrial, electrical automation, and control applications.
Product Description
RS PRO 0476703P PCB Power Relay is a miniature, non-latching signal relay featuring a 12V dc coil and capable of switching currents up to 16A. Designed with a Single Pole Single Throw (SPST) contact configuration, this relay is optimized for PCB mounting where efficient space utilization is critical.
The relay supports a maximum switching DC voltage of 300V and AC voltage of 440V, making it suitable for a broad range of electrical and automation applications. Its coil power consumption is only 400mW with a coil resistance of 360Ω, promoting energy-efficient operation.
Constructed with a plastic sealed and flux proofed body, the relay offers excellent resistance to moisture, enhancing reliability in varied environmental conditions. The contact material is silver alloy, providing low contact resistance of 100mΩ for superior electrical connectivity.

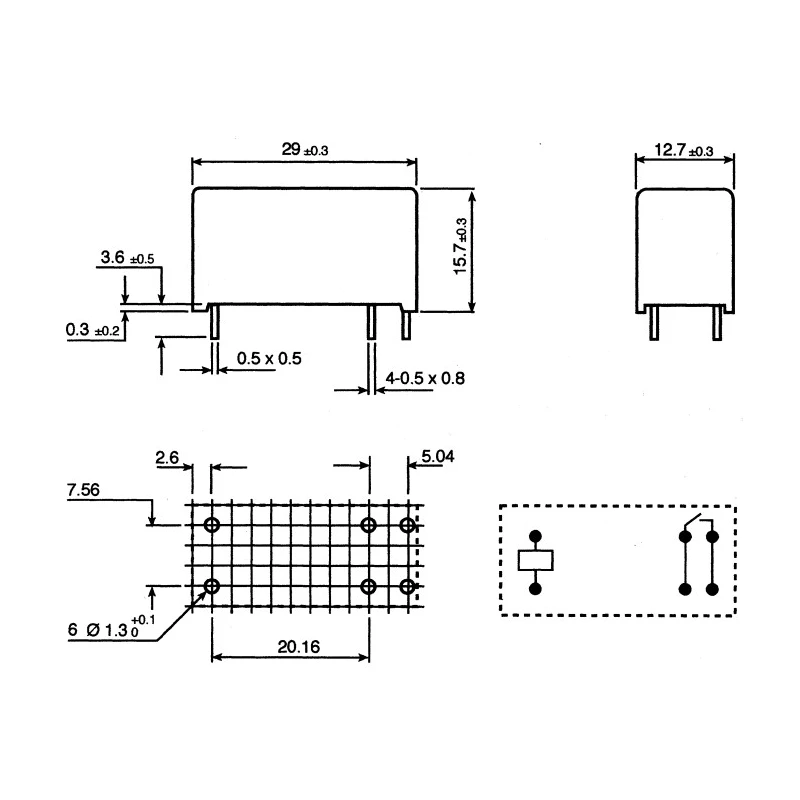

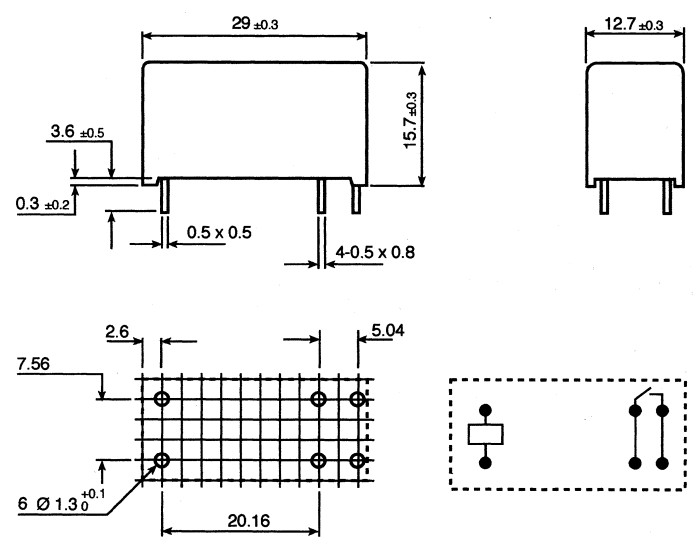

With dimensions of 29mm length, 15.7mm width, and 15.7mm height, this compact relay is ideal for applications where board space is limited. It also features high inrush capability and vibration resistance within the range of 10Hz to 150Hz.
This relay complies with standards IEC 60335-1, UL, CUL, CQC, VDE, and RoHS, ensuring it meets rigorous international quality and safety requirements. Single Pole Single Throw (SPST) contact configuration. 12V dc coil voltage with 400mW coil power consumption.
Switching current up to 16A and switching voltages of 300V dc / 440V ac. Compact size ideal for PCB mounting: 29 x 15.7 x 15.7 mm. Plastic sealed and flux proofed for moisture resistance. Silver alloy contacts with low contact resistance of 100mΩ.
Vibration resistance from 10Hz to 150Hz. Compliant with IEC 60335-1, UL, CUL, CQC, VDE, RoHS standards.
This power relay is well-suited for industrial automation, electrical signal conditioning, manufacturing equipment, and control systems requiring reliable switching capabilities. It provides efficient and stable relay operation in demanding PCB environments.
Explore more Power Relays and related electrical components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This power relay can switch currents up to 16A.
It operates with a coil voltage of 12V dc and has a coil power consumption of 400mW.
This relay features a Single Pole Single Throw (SPST) contact configuration.
The maximum switching DC voltage is 300V, while the maximum switching AC voltage is 440V.
The contact material is silver alloy, which ensures low contact resistance of 100mΩ.
The coil resistance is 360Ω.
The relay operates within a temperature range of -40°C to 85°C.
It features a plastic sealed and flux proofed design, providing excellent moisture resistance.
This relay complies with IEC 60335-1, UL, CUL, CQC, VDE, and RoHS standards.
The relay uses solder type terminals for connection.
It is suitable for industrial automation, electrical signal conditioning, manufacturing equipment, and control systems.
