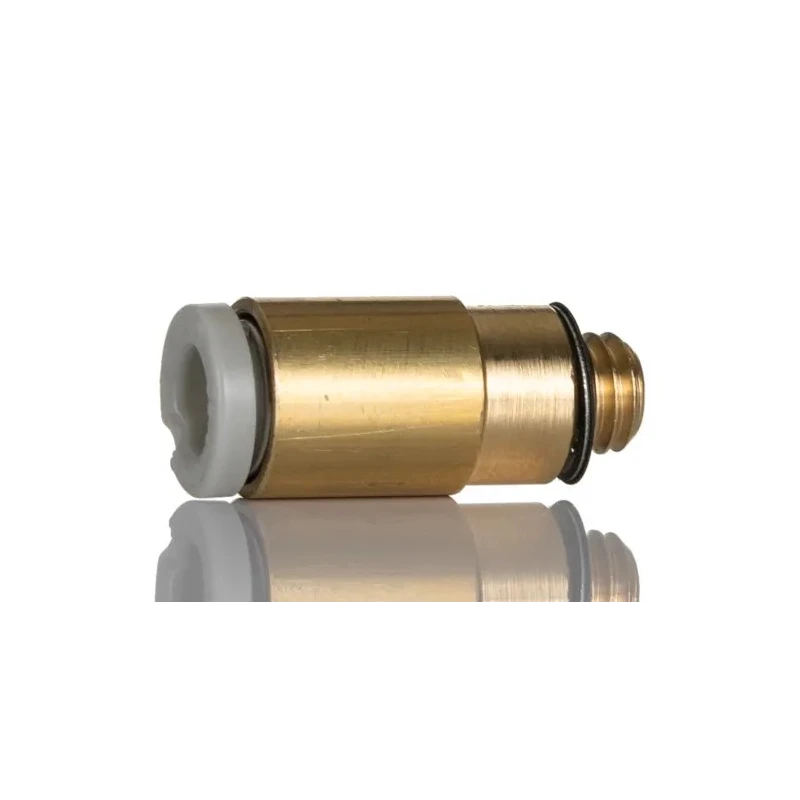

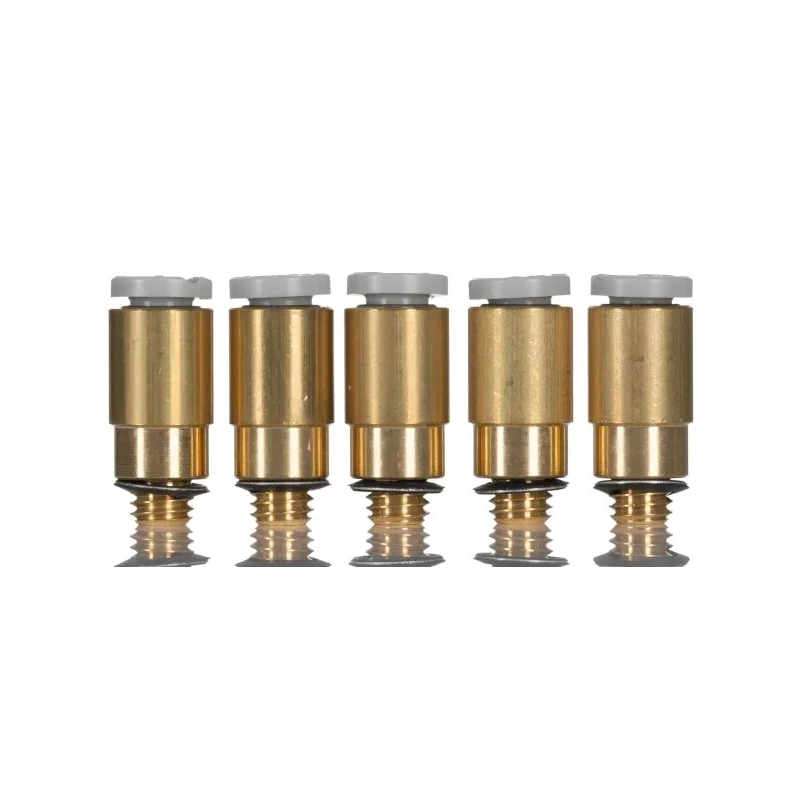

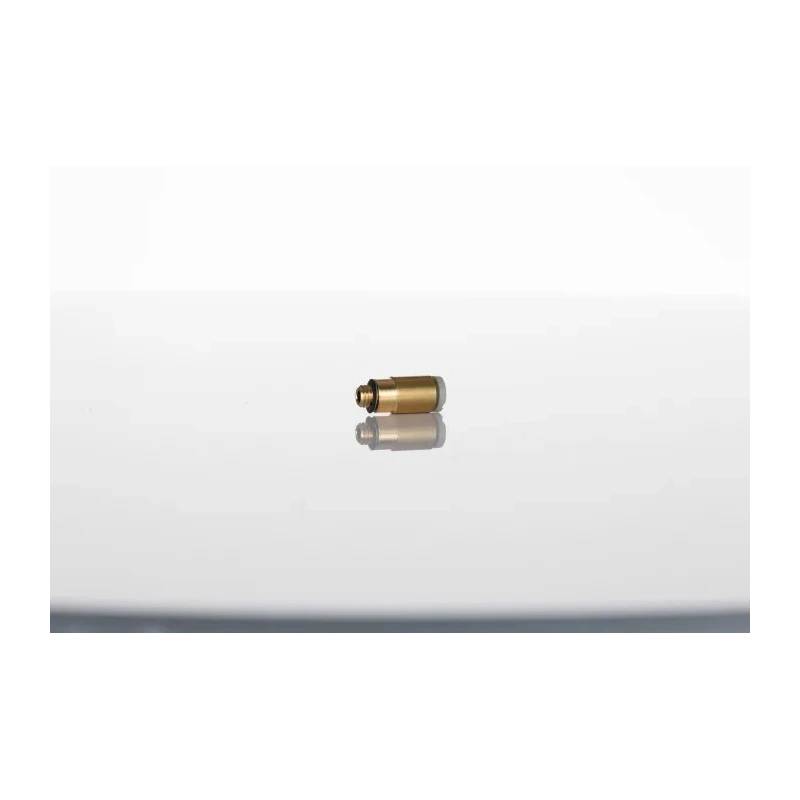

SMC Pneumatic Fitting 4mm Push-in Male M5 x 0.8 Thread JIS B0203 B0205 Electroless Nickel Plated Brass KQ2S04-M5A
Specifications
| Country of Origin | Singapore |
|---|---|
| Brand | SMC |
| Material | Brass |
| Maximum Operating Pressure | 10 bar |
| Model | KQ2S04-M5A |
| Connection Type | Threaded-to-Tube |
| Finish | Electroless Nickel Plated Brass |
| Series | KQ2 |
| Maximum Operating Temperature | 60°C |
| Standards/Approvals | RoHS |
| Connection Size A | M5 Male |
| Connection Thread Standard | JIS B0203, JIS B0205 |
| Connection Thread Size | M5 x 0.8 |
| Connection Gender | Male |
| Connection Size B | Push In 4 mm |
| Tube Connection Type | Push-in |
| Tube Connection Size | 4mm |
| SMC KQ Series, M5 x 0.8 Male, Threaded-to-Tube Connection StyleBrand | SMC |
Key Features
- Constructed from brass with electroless nickel plating for corrosion resistance.
- Designed for industrial pneumatic systems requiring reliable tube-to-thread connections.
- Supports maximum operating pressure of 10 bar and temperature up to 60°C.
- Push-in connection mechanism ensures secure fit and vibration resistance.
- Compliant with RoHS for restricted substance requirements.
- Ideal for use in automation, pneumatic control lines, and electrical cabinet applications.
- Manufactured in Singapore to high-quality standards.
Product Description
SMC KQ2S04-M5A pneumatic fitting is a highly durable connector designed to join a 4mm pneumatic tube to a male M5 x 0.8 threaded port, conforming to JIS B0203 and B0205 standards. The electroless nickel-plated brass body provides enhanced corrosion resistance suitable for typical industrial environments with continuous operation temperatures up to 60°C and maximum pressures of 10 bar.
This compact pneumatic fitting features a push-in tube connection that facilitates rapid assembly and secure tube retention against axial pull and vibration, making it ideal for pneumatic circuits in automation, electrical, and mechanical installations.
Its brass construction ensures mechanical durability while the electroless nickel finish enhances longevity in humid or mildly corrosive conditions. The fitting is RoHS compliant, supporting environmentally responsible production and usage.
Applications include pneumatic control lines in automated production equipment, actuator supply tubing on electronic test rigs, compact manifolds in electrical cabinets, and small-bore instrument air distribution in workshops. The male thread mates precisely with JIS thread standards common to many Japanese and compatible metric ports, ensuring compatibility in diverse industrial setups.
Brass material with electroless nickel finish for durability and corrosion resistance. Push-in 4mm tube connection for ease of installation and secure fitting retention. Male M5 x 0.8 thread adhering to JIS B0203 and B0205 standards for compatibility.
Maximum operating pressure of 10 bar and temperature rating of 60°C. RoHS compliant supporting restricted substance conformity. Manufactured in Singapore under strict quality controls. Explore further Pneumatic Fittings and components from SMC to enhance your pneumatic systems with quality and reliability on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure for this fitting is 10 bar.
This model has a maximum operating temperature of 60°C.
It is constructed from brass with an electroless nickel plating for enhanced corrosion resistance.
The fitting is compliant with RoHS and adheres to JIS B0203 and B0205 standards for the threaded connection.
It features a push-in connection for a 4mm tube and a male M5 x 0.8 threaded connection.
This fitting is manufactured in Singapore under strict quality controls.
It is ideal for use in automation, pneumatic control lines, and electrical cabinet applications.
The tube connection size is 4mm.
The connection gender for the threaded side is male.
The push-in mechanism allows for rapid assembly and secure retention of the tube against axial pull and vibration.
The electroless nickel finish enhances the fitting's longevity in humid or mildly corrosive environments.
The connection thread size is M5 x 0.8.
