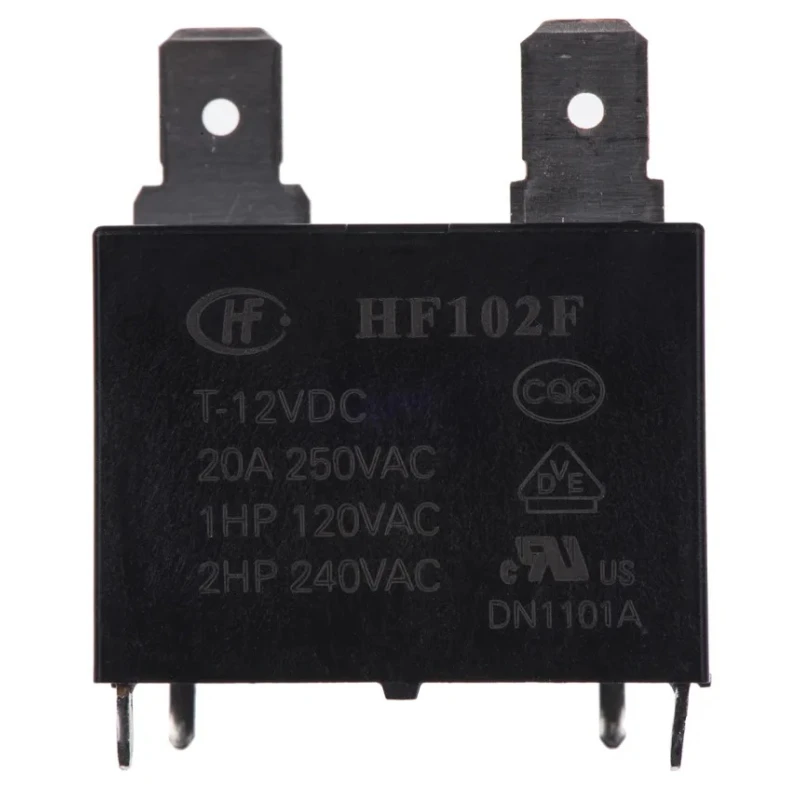

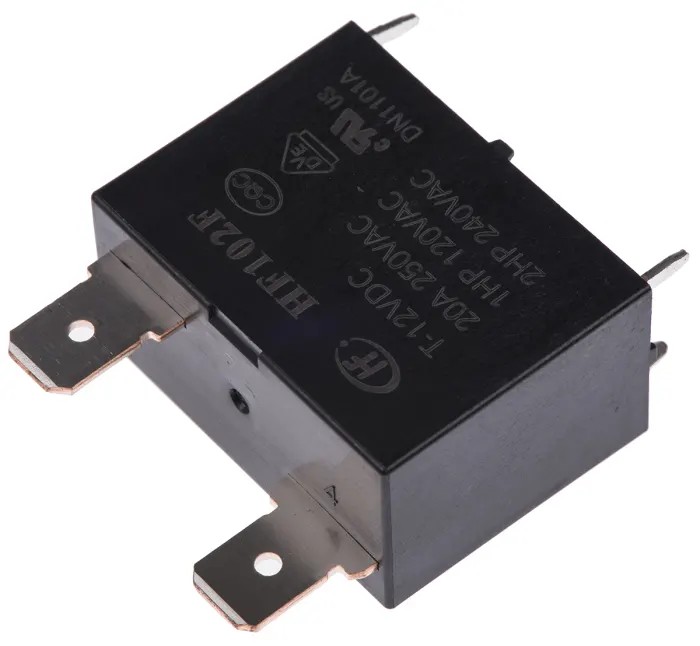

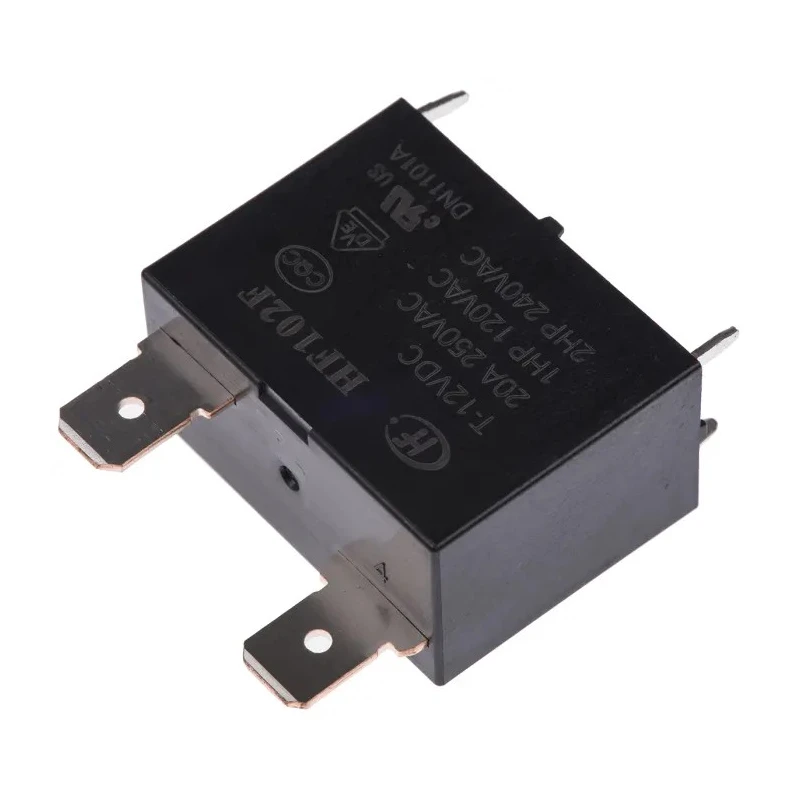

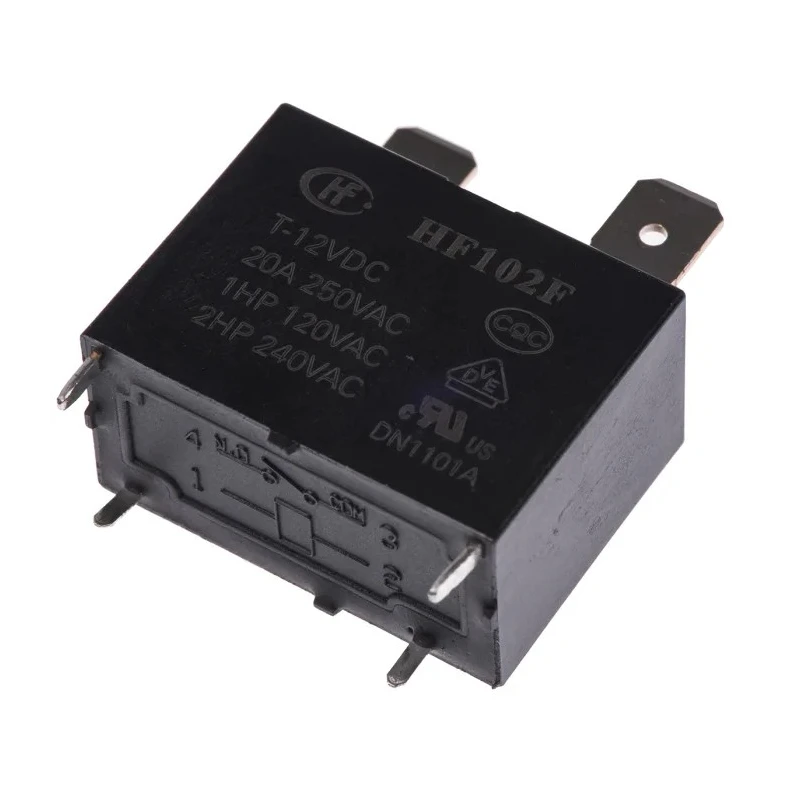

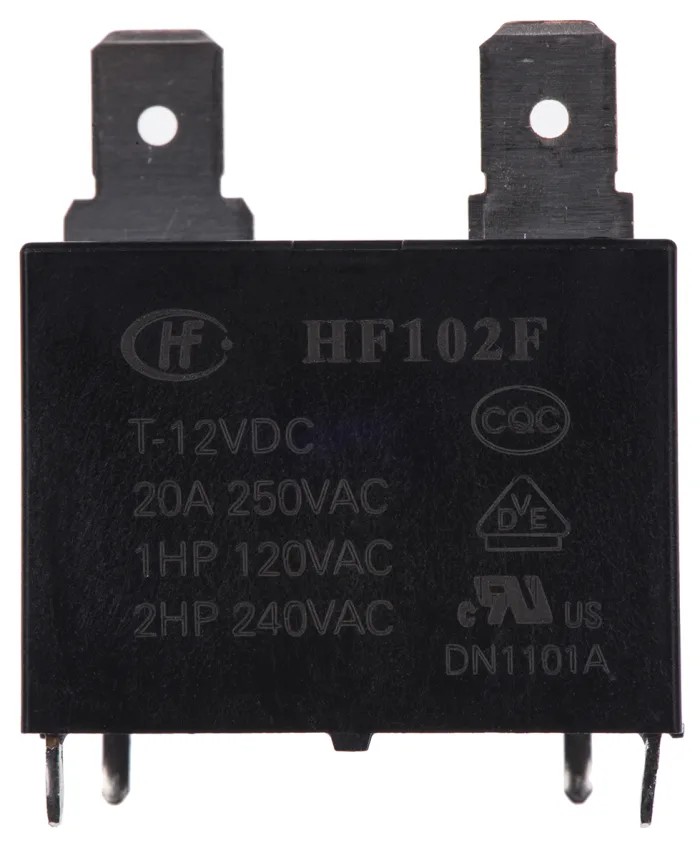

RS PRO PCB Power Relay, 12V dc Coil, 25A Switching Current, SPST 0476561P

RS PRO 0476561P PCB Power Relay is a high-performance relay featuring a 12V dc coil and 25A switching current with an SPST (Single Pole Single Throw) contact configuration. Designed for PCB mounting, this relay employs solder terminal connections ideal for secure integration into electrical and electronic systems.

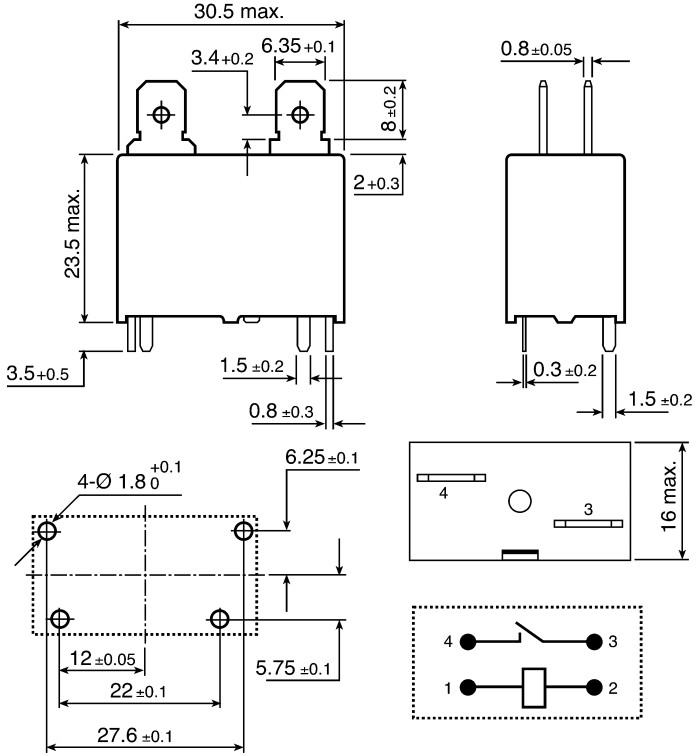

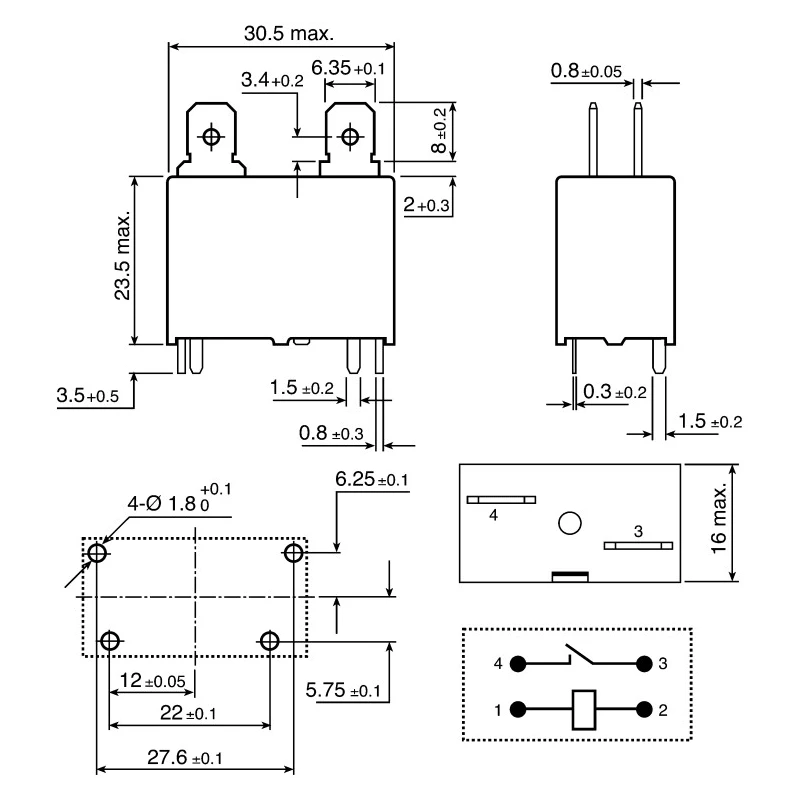

With a coil resistance of 160 ohms and coil power rating of 900mW, it offers reliable energizing performance while maintaining efficiency. The relay’s compact size of 30.5mm length, 16mm width, and 33.5mm height makes it suitable for tight installation spaces.

Functioning within a wide operating temperature range from -25°C to 85°C, this relay is appropriate for varied industrial environments. Its silver alloy contact material ensures excellent conductivity and long service life, suitable for switching loads up to 6.25kVA at 250V ac.

Engineered to withstand high inrush currents up to 80A, it is well suited for heavy load tasks such as motor switching. The relay also provides a dielectric strength of 4.5kV between coil and contacts for enhanced insulation and safety.

Its construction is flux proof, adding durability and reliability for industrial applications. RS PRO 0476561P complies with RoHS environmental standards and holds certifications including UL (File no. E134517), CQC (File no. CQC02001001955), and VDE, assuring quality and safety adherence.

This relay supports a switching power capacity of 6.25kVA for demanding electrical loads. It is designed for PCB mounting and features solder terminal types for secure installation. Coil resistance is 160 ohms with a coil power of 900mW, ensuring efficient operation.

Operating temperature range extends from -25°C to 85°C for versatile environmental performance. Constructed with silver alloy contacts for reliable conductivity and durability. Offers a compact form factor with dimensions of 30.5mm length, 16mm width, and 33.5mm height.

Withstands inrush current up to 80A, ideal for motor switching and heavy load applications. Provides high dielectric strength of 4.5kV between coil and contacts for electrical safety. The relay is flux proof and compliant with RoHS standards, meeting environmental regulations.

Certified with UL, CQC, and VDE approvals ensuring quality and safety compliance.

This RS PRO PCB Power Relay is ideal for industrial, automation, electrical distribution, and manufacturing applications requiring reliable high-power switching capabilities on PCB-mounted equipment. Browse EnvMart categories for power Relays and related components to find compatible products and accessories.
