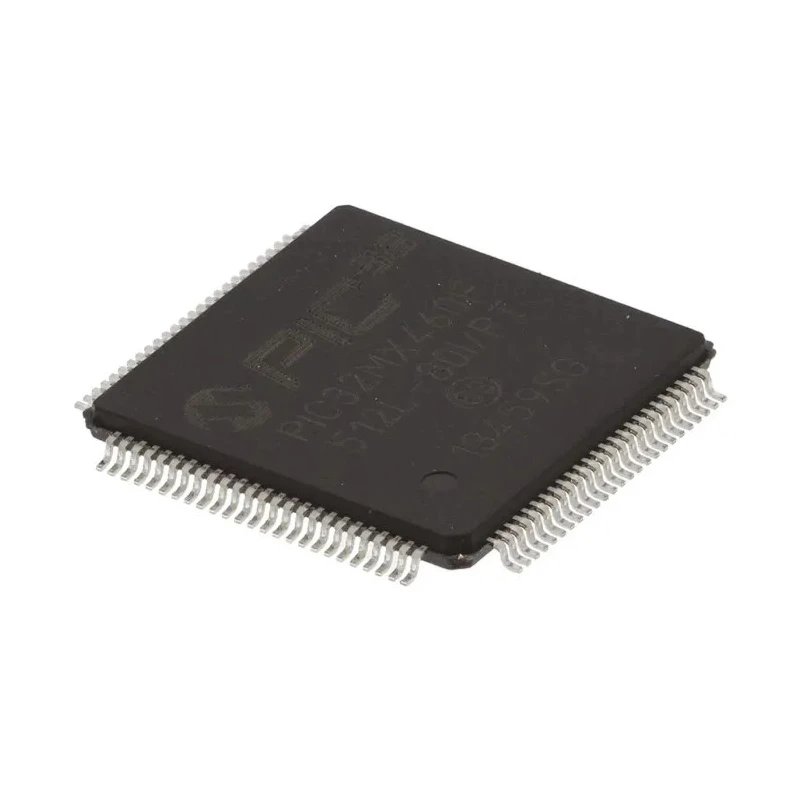

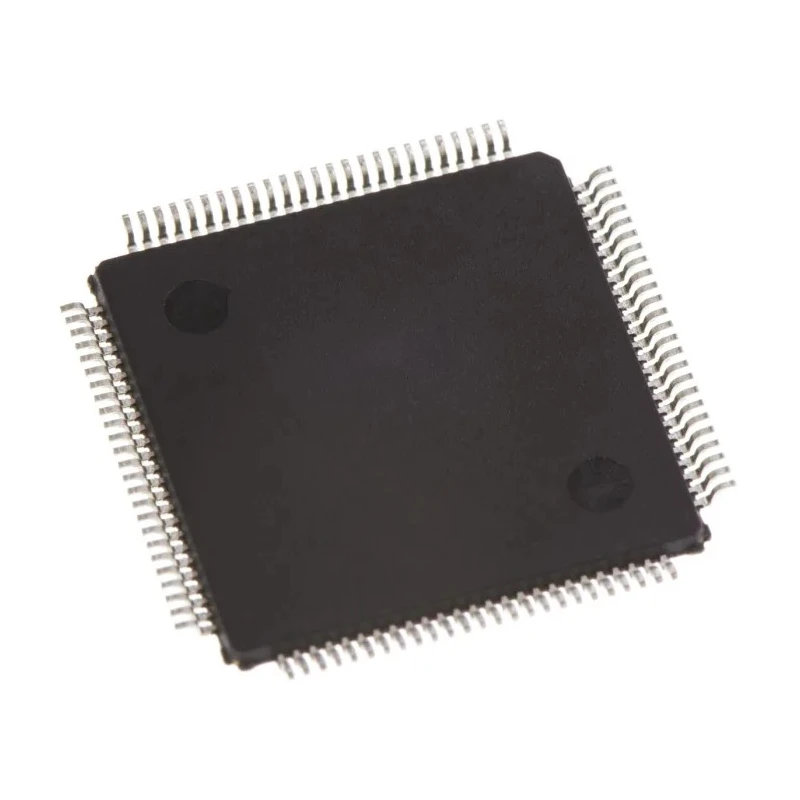

Microchip 32-bit PIC Microcontroller PIC32MX460F512L-80I/PT, 80 MHz, 12 KB RAM, 512 KB Flash, 100-Pin TQFP

Microchip PIC32MX460F512L-80I/PT is a high-performance 32-bit PIC microcontroller based on the powerful MIPS32 M4K core architecture. Operating at a maximum clock frequency of 80 MHz, this microcontroller provides efficient processing power combined with a 5-stage pipeline and 1.56 DMIPS/MHz performance at zero wait state Flash access.

This device integrates 512 KB of high-speed Flash memory paired with 12 KB of RAM, suitable for demanding embedded applications requiring significant code and data storage. The package type is a 100-pin Thin Quad Flat Package (TQFP) designed for surface mounting, measuring 12 mm by 12 mm with a height of 1.05 mm.

Designed for a wide range of industrial and automotive applications, it supports operating voltages from 2.3 V minimum up to 3.6 V maximum. The operating temperature range from -40°C to 85°C meets stringent requirements for harsh environments. The device is compliant with automotive standard AEC-Q100, assuring reliability and robustness.

The microcontroller includes versatile integrated peripherals such as 16 channels of 10-bit ADCs, multiple timers and PWM outputs, hardware DMA controllers, USB 2.0 full-speed device with On-The-Go capability, two I2C, SPI, and UART communication modules, and a hardware Real-Time Clock and Calendar (RTCC).

Additional features include atomic register operations, configurable open-drain outputs, and configurable watchdog timers. High-current I/O pins capable of 18 mA sink/source enhance compatibility with various peripherals.

Its design targets applications requiring high impact graphics, user interface control, Ethernet/USB/CAN connectivity, multitasking embedded control, and high-performance audio processing. This versatility makes it well suited for a broad range of industrial, automotive, and consumer electronic applications.

High-performance 32-bit architecture with 5-stage pipeline. 512 KB of Flash memory with 12 KB of RAM capacity. Operates at maximum frequency of 80 MHz for efficient processing. Comes in a 100-pin Thin Quad Flat Package (TQFP) suitable for surface mounting.

Supports multiple integrated peripherals including USB 2.0 and multiple communication interfaces. Wide operating voltage range from 2.3 V to 3.6 V ensuring flexibility. Operates reliably between -40°C and 85°C for industrial applications.

Includes 16 channels of 10-bit Analog-to-Digital Converters (ADCs) for precision analog inputs. Designed with automotive standard AEC-Q100 compliance for quality assurance. Robust timer, PWM, DMA, and interrupt features enabling multitasking embedded control.

Ideal for high impact graphics, user interfaces, Ethernet/USB/CAN connectivity, and high-performance audio. Explore more high-quality Microcontrollers and components in the Semiconductor category at EnvMart for industrial, automotive, and embedded system design needs.
