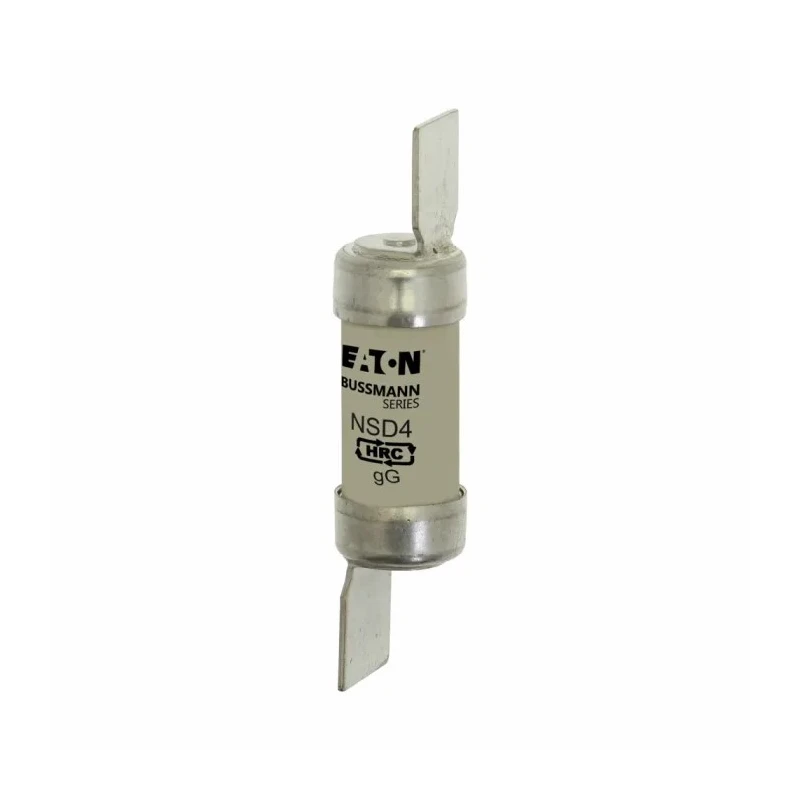

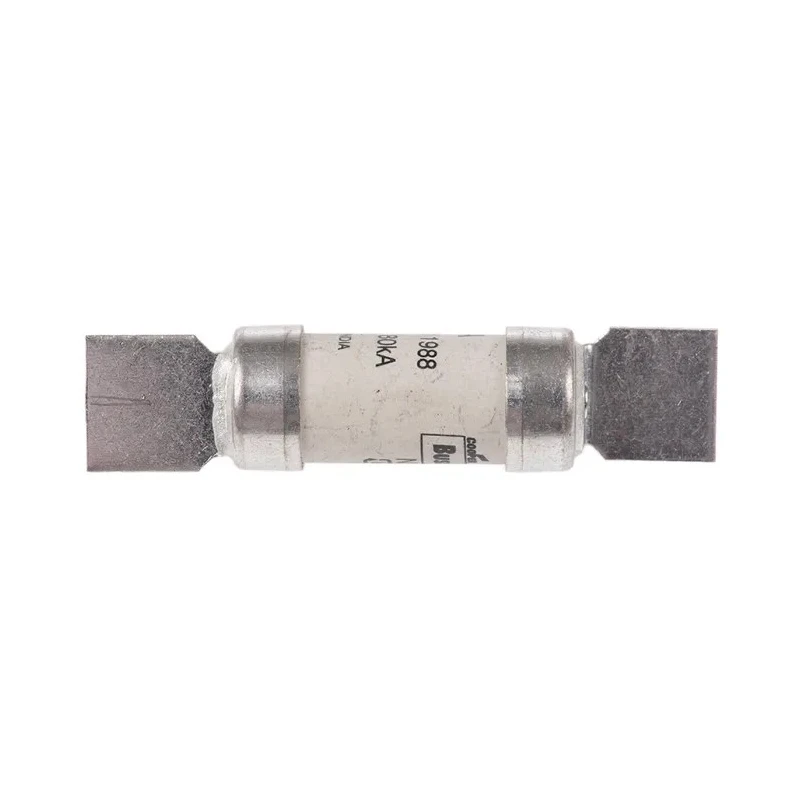

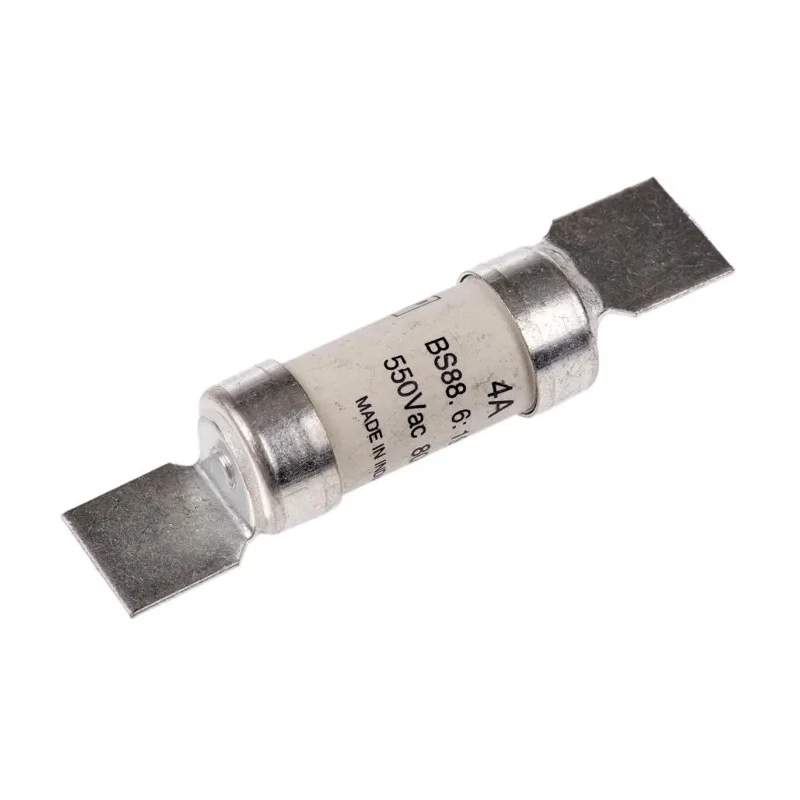

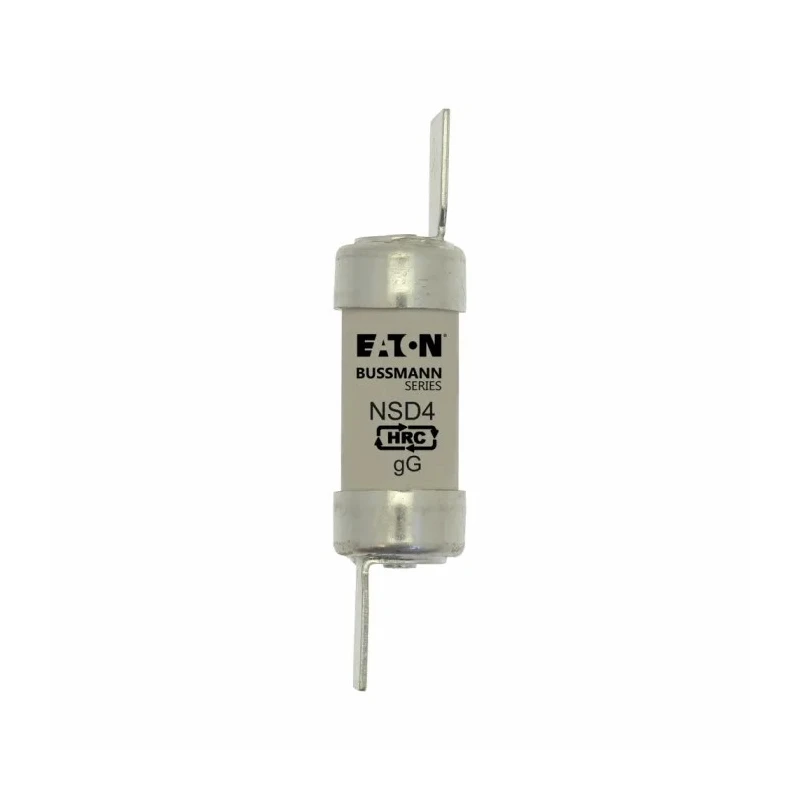

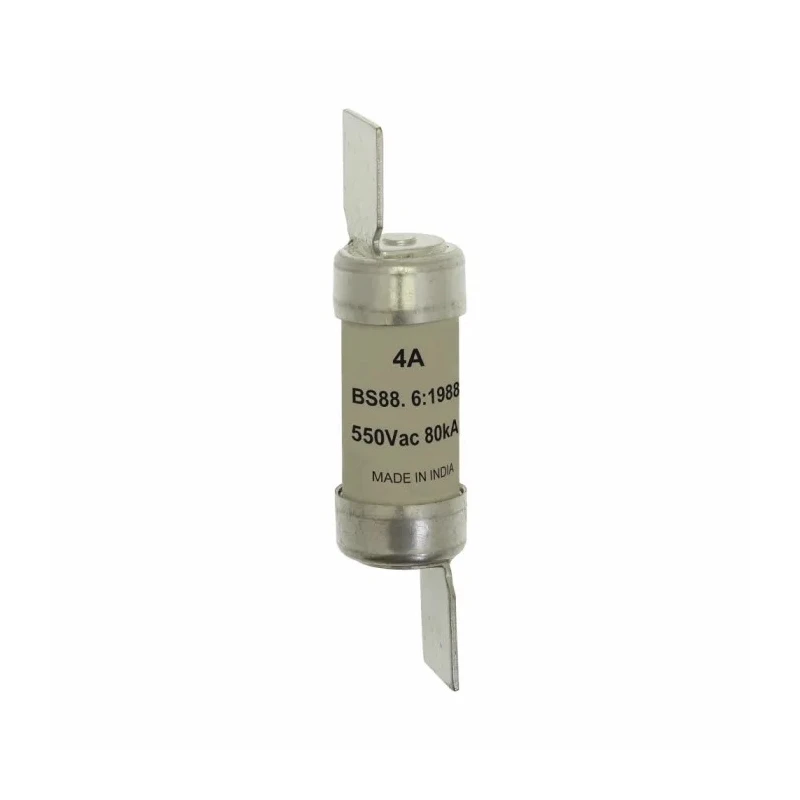

Eaton British Standard Fuse 4A 550V AC HRC Fuse Type F1 NSD4

Eaton NSD4 British Standard Fuse 4A 550V AC HRC Fuse Type F1 is designed to provide reliable protection in general industrial electrical applications. The fuse is intended to interrupt fault currents safely to protect electrical equipment such as distribution panels and power feeders. Its compact form factor of 58.5 mm length, 34.6 mm height, and 13.8 mm depth minimizes the required mounting space, making it ideal for high-density panel installations without the hazard of excessive heat buildup.

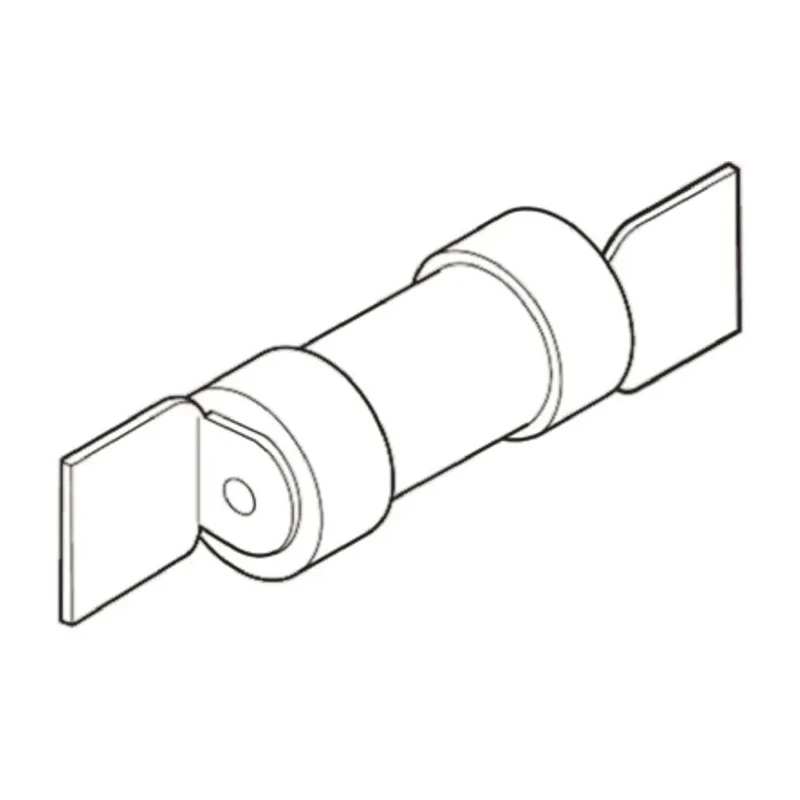

The fuse features a high rupture capacity (HRC) construction, enabling it to safely break both excessively high and low current faults. The blade-type slotted tags at each end of the fuse simplify installation and enable quick replacement in case of fuse activation. Eaton's design offers immunity to ageing and delivers efficient performance with low power loss, typically 20% lower than BS 88 standards demands. The fuse is characterized by gM and gG ratings, indicating its versatility for general-purpose circuit protection in industrial environments.

This British Standard Fuse is specifically built for alternating current (AC) applications, exhibiting enhanced resistance to electric arcs during fuse blowing and handling voltages up to 550V AC. Eaton's NSD series, to which this F1 size fuse belongs, is widely used in diverse applications such as industrial switchgear, motor protection, and power distribution systems.

The fuse conforms to industry standards and is suitable for three-phase and type 2 coordinated protection as per IEC 947-4 definitions. Its robust yet compact construction makes it a trusted choice in electrical safety and circuit protection for commercial and industrial installations.

High rupture capacity fuse type suitable for protecting electrical circuits. Compact size enables installation in crowded panel assemblies. Blade tags facilitate easy mounting and secure connections. Suitable for alternating current circuits, providing reliable operation.

Low temperature rise reduces risk of overheating in applications. Fuse characteristics gM and gG allow for efficient circuit protection. Designed for long service life with minimal maintenance requirements. Ideal for general industrial, commercial, and switchgear applications.
