Eaton British Standard Tag Fuse B2 160A 415V AC High Rupture Capacity Offset Slotted Tags DD160

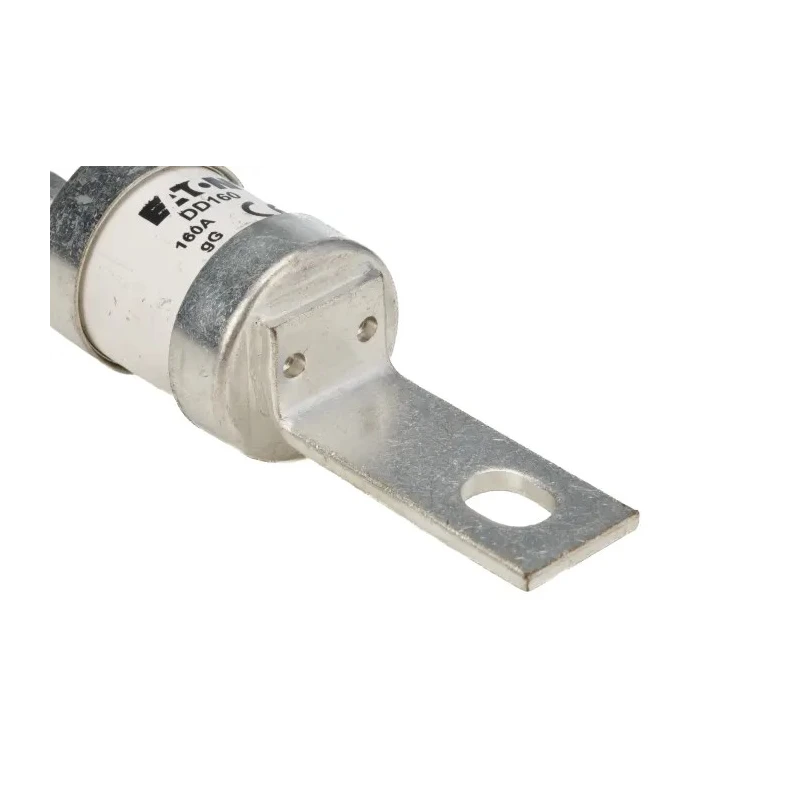

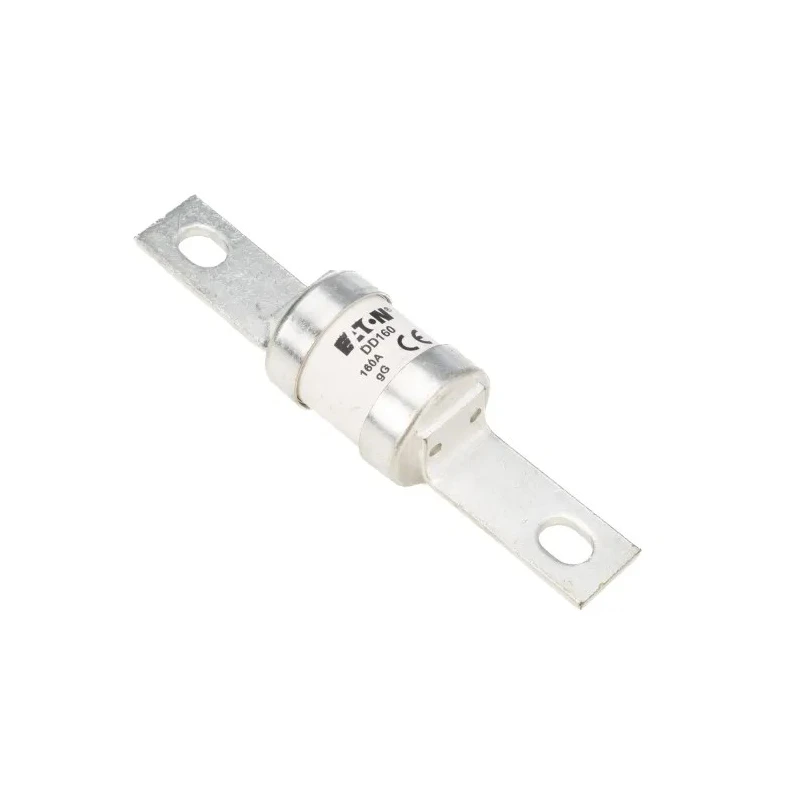

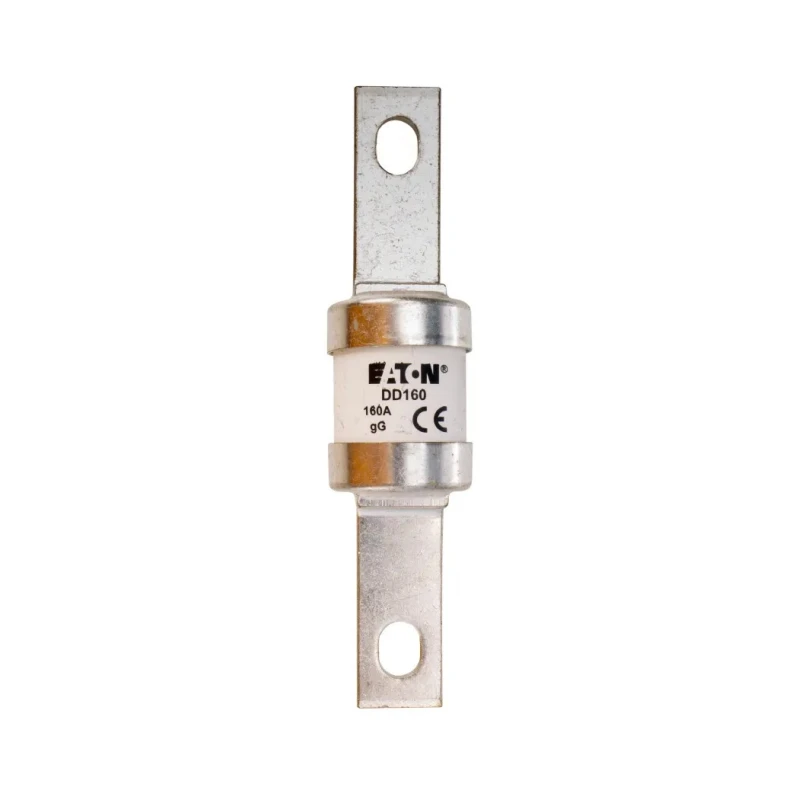

Eaton DD160 British Standard Tag Fuse B2 size is rated at 160A and 415V AC, specifically designed for reliable protection of low-voltage electrical equipment and wiring systems in industrial, manufacturing, and switchgear applications. This bolted tag fuse is fitted with offset slotted metal tags to bolt securely onto fuse holders or busbars, including compatibility with 200DF fuse blocks.

The fuse complies with IEC 60269-2 standards and carries RoHS and CE approvals, denoting its conformance with international safety and environmental regulations. Its high rupture capacity rating enables it to withstand short circuit surges up to 80 kA at 690 V AC without fuse damage, making it suitable for harsh industrial environments.

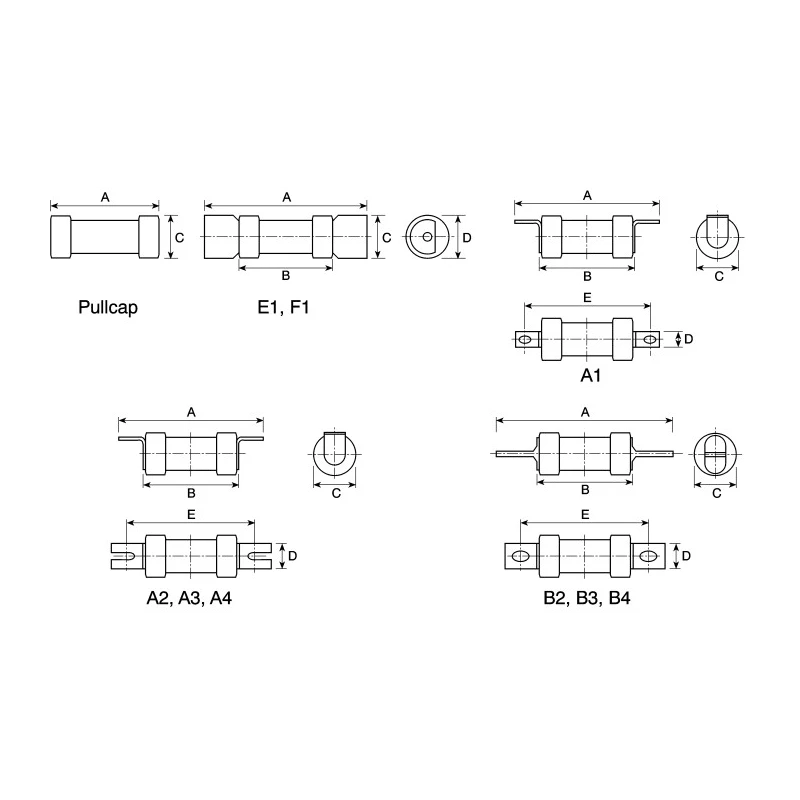

The B2 fuse size features dimensions of 47mm body height, 31mm diameter, and 136mm overall length, with fixing centres spaced 111 mm apart for standard mounting. The centered tags with 19 mm width provide reliable mechanical and electrical connection.

Designed for three-phase systems, it delivers typical power loss approximately 20% lower than BS 88 standards, reducing system heat buildup and enhancing efficiency.

This fuse is classified as a gG-type for general-purpose use and suitable for IEC type-2 coordination defined in IEC 947-4, allowing the circuit starter to remain operational after a fuse interruption from a short circuit.

Its low temperature rise and robust Eaton DD series construction make it ideal for high-density mounting within electrical panels utilized in industrial automation, manufacturing plants, and electrical distribution systems. Eaton Bussmann's HRC (High Rupture Capacity) technology ensures superior safety performance.

Offset slotted bolted tag design for secure mounting and installation. Conforms to IEC 60269-2, RoHS, and CE standards for compliance and reliability. 160A rated current at 415V AC, suited for industrial circuit protection.

High rupture capacity up to 80 kA enabling protection against short circuit damage. B2 fuse size with precise dimensions supports standard fuse holder compatibility. Low power loss reduces overheating, improving system longevity.

Type-2 coordination enables system reusability post-fault clearing. Robust Eaton DD series construction for durable industrial use.

For a broad range of industrial applications requiring dependable fuse protection including industrial wiring systems, switchgear, and electrical equipment, the Eaton DD160 provides a trusted solution featured in EnvMart circuits breakers and fuse category.
