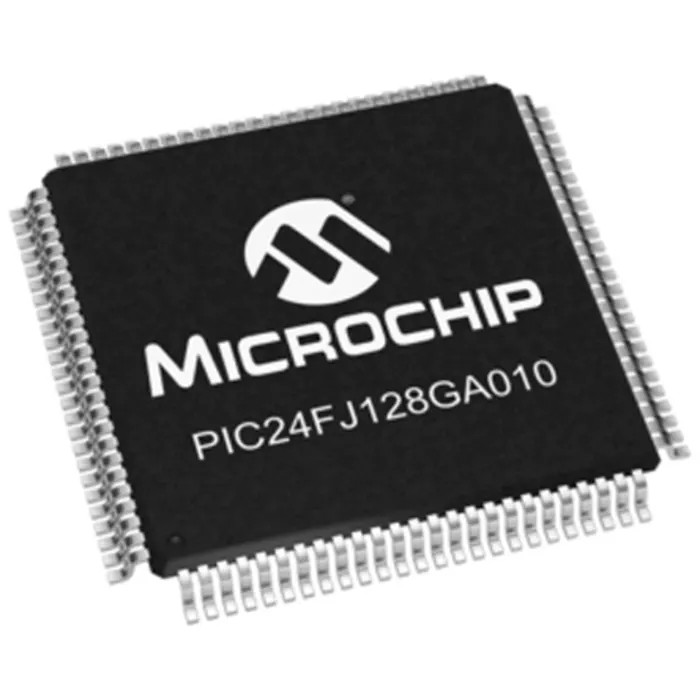

Microchip 16 Bit PIC PIC24FJ Microcontroller 32 MHz 128kB FLASH 100-Pin TQFP PIC24FJ128GA010-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 12mm |
| Model | PIC24FJ128GA010-I/PT |
| Width | 12mm |
| Mount Type | Surface |
| Series | PIC24FJ |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 8kB |
| Pin Count | 100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 32MHz |
| Analogue Comparators | 2 |
| Number of Timers | 5 |
| Instruction Set Architecture | Modified Harvard |
| ADCs | 16 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Compact 100-Pin TQFP package with surface mount technology.
- Operates over a voltage range from 2V to 3.6V ensuring flexible power management.
- Equipped with 16-bit Modified Harvard architecture and 5 timers for precise control.
- Includes 16 ADC channels with 10-bit resolution for accurate analog signal processing.
- Features 2 analogue comparators enhancing sensor interfacing capabilities.
- Wide operating temperature range from -40°C to 85°C suitable for harsh environments.
- Program memory utilizes FLASH type allowing for fast and efficient firmware updates.
- Low profile with package height of 1.05mm, length and width of 12mm each.
Product Description
Microchip PIC24FJ128GA010-I/PT is a 16-bit PIC microcontroller designed for efficient embedded system applications requiring moderate processing power and memory capacity.
This microcontroller operates at a maximum clock frequency of 32 MHz and features 128kB of FLASH program memory and 8kB RAM, making it suitable for complex control algorithms and data buffering.
The device is housed in a 100-pin TQFP package with surface mount technology, facilitating integration in modern PCBs with space constraints.
Its extensive peripherals include 16 ADC channels with 10-bit resolution and 2 analogue comparators, ideal for precise data acquisition in industrial, automotive, and consumer electronics.
The microcontroller supports a wide supply voltage range from 2V minimum to 3.6V maximum, with an operating temperature range of -40°C to +85°C, allowing robust performance in diverse environmental conditions.
The 5 timer modules enable precise event timing and scheduling necessary in automation and control tasks. The instruction set is based on a modified Harvard architecture, optimizing data throughput and instruction execution efficiency.
Compact 100-Pin TQFP surface mount packaging. 32 MHz maximum clock frequency for responsive processing. 16-channel 10-bit ADCs with 2 analogue comparators. Robust operating voltage from 2V to 3.6V and temperature range from -40°C to 85°C.
128kB FLASH program memory with 8kB RAM capacity. Five timer modules for versatile control applications. Modified Harvard architecture instruction set for optimized execution. Low profile package dimensions of 12mm x 12mm x 1.05mm.
This microcontroller is widely used in industrial automation, automotive systems, embedded computing, and consumer electronics where reliable and efficient processing is required. Explore more Microchip Microcontrollers at EnvMart for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the PIC24FJ128GA010-I/PT is 32 MHz.
It features 128kB of FLASH program memory, allowing for efficient firmware updates.
This model includes 16 ADC channels with 10-bit resolution for accurate analog signal processing.
The operating voltage range is from 2V to 3.6V, providing flexibility for power management.
It is housed in a 100-pin TQFP package with dimensions of 12mm x 12mm x 1.05mm.
The operating temperature range is from -40°C to +85°C, suitable for harsh environments.
There are 5 timer modules included, allowing for precise event timing and scheduling.
It utilizes a modified Harvard architecture instruction set, optimizing data throughput and execution efficiency.
This microcontroller has 8kB of RAM capacity for data buffering and processing tasks.
Yes, it includes 2 analogue comparators which enhance sensor interfacing capabilities.
It is widely used in industrial automation, automotive systems, embedded computing, and consumer electronics.
The country of origin for this microcontroller is India.
