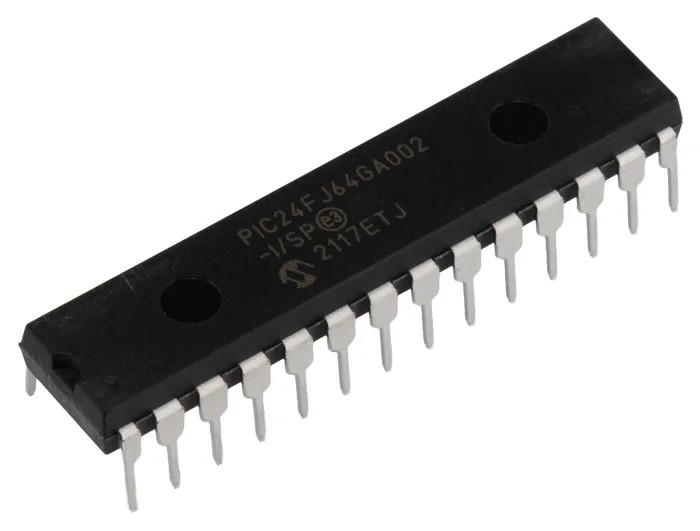

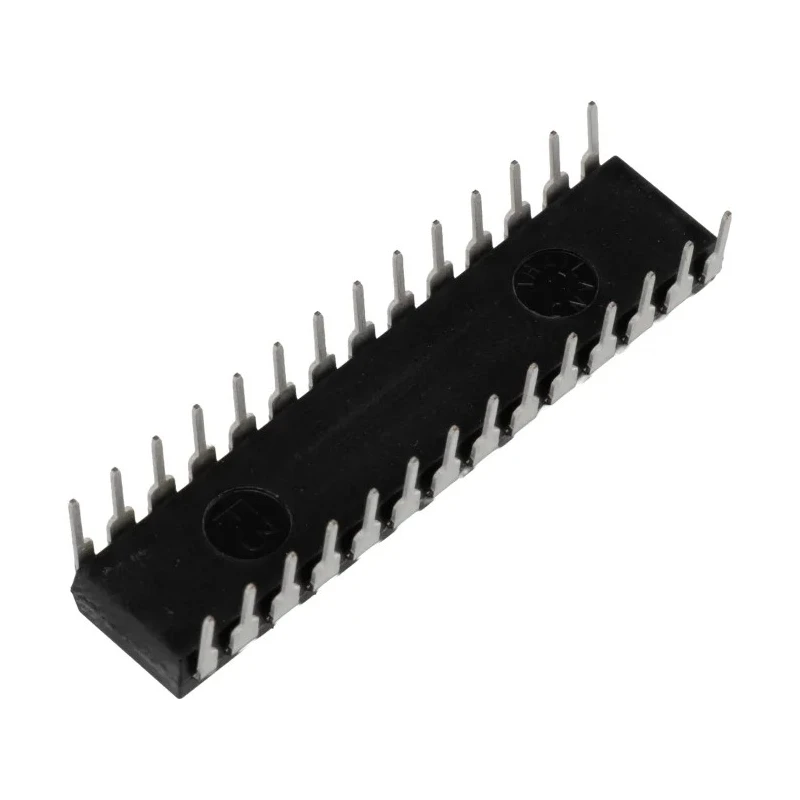

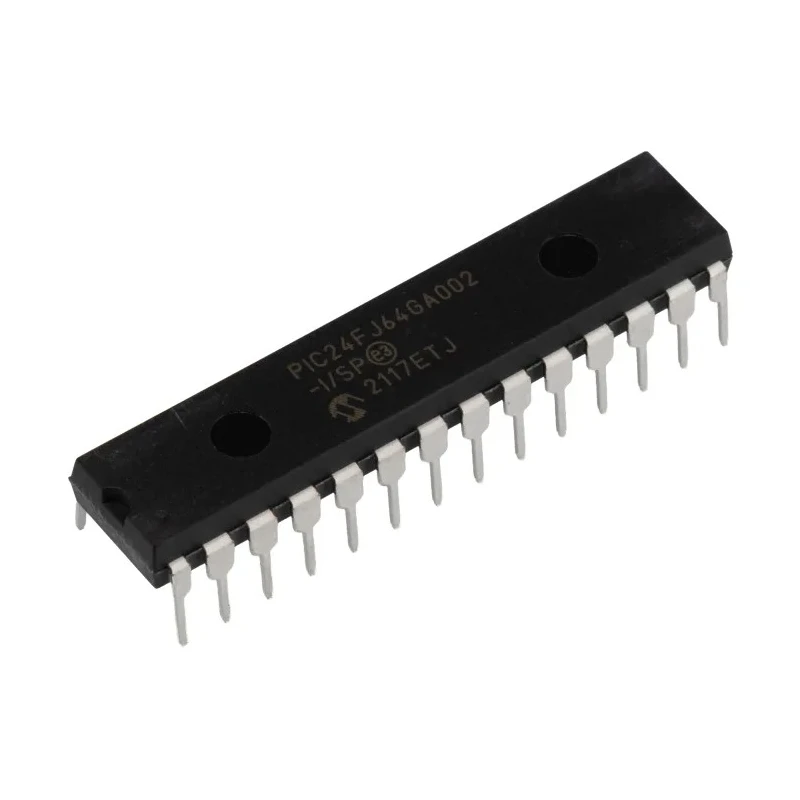

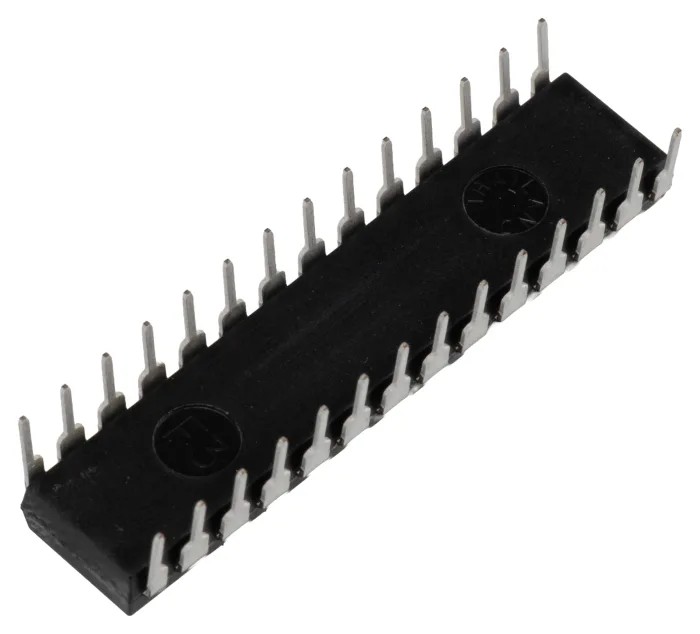

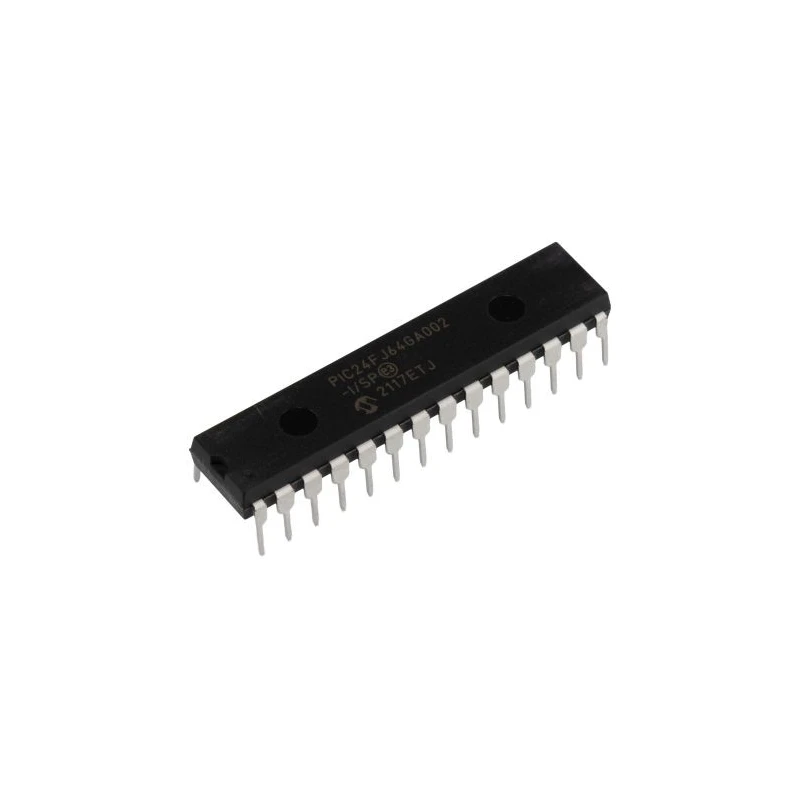

Microchip PIC24FJ64GA002-I/SP 16 bit PIC Microcontroller 32 MHz 64kB FLASH 28-Pin SPDIP PIC24FJ64GA002-I/SP

Microchip PIC24FJ64GA002-I/SP is a high-performance 16 bit PIC microcontroller designed for versatile electronic control systems requiring reliable and efficient embedded processing. Operating at a clock frequency of 32 MHz, this microcontroller integrates 64kB FLASH program memory and 8kB RAM memory, ensuring ample capacity for complex firmware implementations.

The device adopts a modified Harvard instruction set architecture, optimizing separate memory for instructions and data that enhances processing speed and efficiency. It is packaged in a 28-Pin SPDIP form factor suitable for through-hole mounting applications common in prototyping and industrial equipment manufacturing.

Supporting a wide supply voltage range from 2V to a maximum of 3.6V, the PIC24FJ64GA002-I/SP can operate reliably across varying power conditions. Its operating temperature range from -40°C to 85°C makes it suitable for harsh industrial environments.

The microcontroller features 10 channels of 10-bit ADCs (Analog to Digital Converters) and 3 analogue comparators, enabling precise monitoring and control of analog signals such as sensors and actuators. It also includes 5 timers to enable fine timing and scheduling functionalities critical in embedded control tasks.

With compact dimensions of 35.56 mm in length, 3.81 mm height, and 0.295 inches width, it is designed for applications needing small footprint embedded control solutions. Operates with 32 MHz clock frequency for responsive processing.

16 bit data bus for balanced performance and memory usage. 64kB FLASH program memory and 8kB RAM for extensive firmware storage and runtime data handling. 10 x 10 Bit ADC channels plus 3 analogue comparators for advanced sensor interface.

Wide operating voltage range 2V to 3.6V for flexible power designs. Operating temperature range from -40°C to 85°C for industrial use. 28-Pin SPDIP package with through-hole mount compatibility. 5 integrated timers supporting timing and scheduling operations.

This Microchip PIC24FJ64GA002-I/SP microcontroller is ideal for industrial automation, embedded system development, consumer electronics, and automotive electronics where robustness, moderate processing power, and analog interfacing capability are required. It suits applications involving measurement, control, and communication modules that operate under varying environmental and power conditions.
