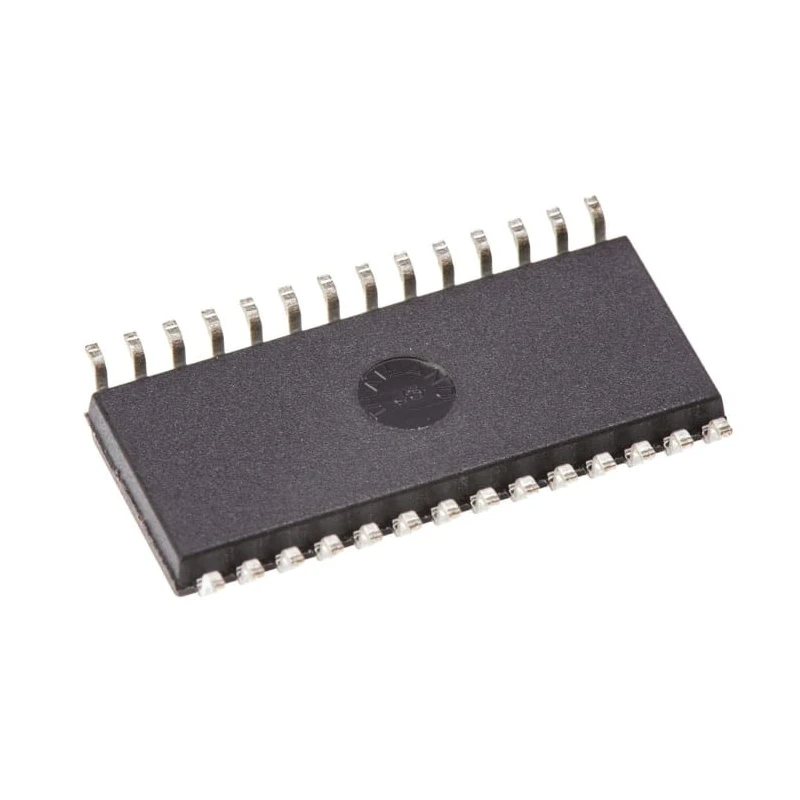

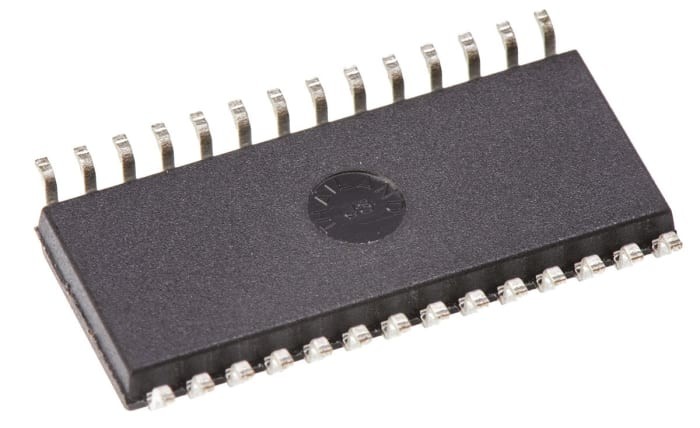

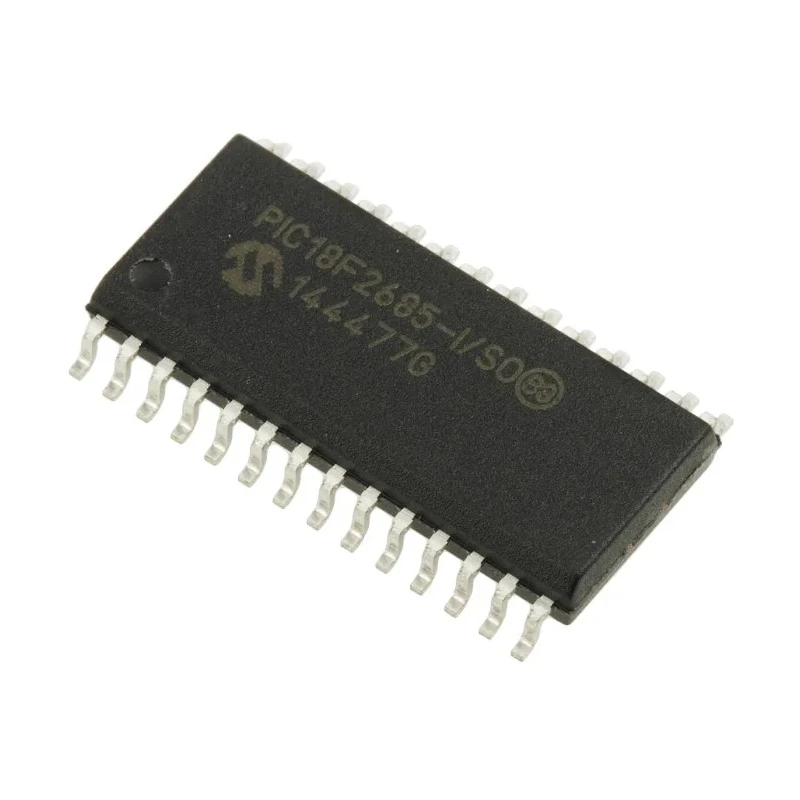

Microchip PIC18F 8-bit PIC Microcontroller, 96kB FLASH, 33 I/Os, 40 MHz, 28-Pin SOIC PIC18F2685-I/SO
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2.35mm |
| Length | 17.9mm |
| Model | PIC18F2685-I/SO |
| Width | 7.5mm |
| Mount Type | Surface |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 3.33kB |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 96kB |
| Maximum Clock Frequency | 40MHz |
| Number of Programmable I/Os | 33 |
| Analogue Comparators | 2 |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 8 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Features 33 programmable input/output pins for flexible interfacing.
- Operates at a maximum clock frequency of 40 MHz for efficient processing.
- Built with RISC architecture supporting 8-bit data bus width.
- Embedded 3.33kB RAM for data storage and 96kB FLASH program memory.
- Supports 8 channels of 10-bit ADC for accurate analog to digital conversion.
- Equipped with 4 timers and 2 analogue comparators to support diverse applications.
- Compact SOIC surface mount package measuring 17.9mm by 7.5mm by 2.35mm.
- Wide operating temperature range from -40°C to 85°C suitable for harsh environments.
Product Description
Microchip PIC18F2685-I/SO is a high-performance 8-bit PIC microcontroller featuring 96kB of FLASH memory and operating at up to 40 MHz clock frequency. The device integrates 33 programmable I/O pins and sophisticated peripherals including 8 channels of 10-bit ADC, 4 timers, and 2 analogue comparators, making it well-suited for a wide range of industrial, commercial, and embedded system applications.
Manufactured in a compact 28-pin SOIC package with surface mount technology, this microcontroller offers flexibility in PCB design and space-constrained environments. The robust operating range from -40°C to 85°C ensures reliable performance in demanding temperature conditions.
Its RISC instruction set architecture and 8-bit data bus width deliver efficient processing for control, signal processing, and real-time tasks. With operating voltages from 2V to 5.5V along with a maximum power dissipation of 1 watt, it supports low power embedded designs without sacrifice in capability.
This microcontroller is widely utilized in automation systems, industrial controls, instrumentation, consumer electronics, and other electronic component solutions requiring precise and reliable microcontroller functionality.
Features 33 programmable input/output pins for flexible interfacing. Operates at a maximum clock frequency of 40 MHz for efficient processing. Built with RISC architecture supporting 8-bit data bus width. Embedded 3.33kB RAM for data storage and 96kB FLASH program memory.
Supports 8 channels of 10-bit ADC for accurate analog to digital conversion. Equipped with 4 timers and 2 analogue comparators to support diverse applications. Compact SOIC surface mount package measuring 17.9mm by 7.5mm by 2.35mm.
Wide operating temperature range from -40°C to 85°C suitable for harsh environments. Designed for low power consumption with supply voltage between 2V and 5.5V and maximum power dissipation of 1W. Ideal for embedded system design, industrial controls, and electronic applications.
Set consists of a single Microchip PIC18F2685-I/SO 8-bit microcontroller. Explore more Microcontroller and semiconductor products in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 40 MHz, allowing for efficient processing capabilities.
This model features 96kB of FLASH program memory for storing application code.
The operating temperature range for this microcontroller is from -40°C to 85°C, making it suitable for harsh environments.
It has 33 programmable input/output pins, providing flexible interfacing options for various applications.
The PIC18F2685-I/SO supports 8 channels of 10-bit ADC for accurate analog to digital conversion.
This microcontroller comes in a compact SOIC package measuring 17.9mm in length, 7.5mm in width, and 2.35mm in height.
It is equipped with 3.33kB of RAM for data storage needs during operation.
This microcontroller includes 4 timers to support various timing applications.
The supply voltage range for this model is from 2V to 5.5V, allowing for low power consumption designs.
It features 2 analogue comparators that can be utilized in various applications requiring signal comparison.
This microcontroller is built on a RISC architecture, which supports an 8-bit data bus width for efficient processing.
The maximum power dissipation for this microcontroller is 1 watt, supporting its low power design.
