Microchip 8 bit PIC Microcontroller 20 MHz 256B FLASH 20-Pin SOIC PIC16HV

Microchip PIC16HV785-I/SO is an 8 bit PIC microcontroller designed for versatile embedded applications requiring reliable processing within a compact 20-pin SOIC package. Operating at a maximum clock frequency of 20 MHz, it offers efficient computation with a RISC instruction set architecture and features 256 bytes of FLASH program memory along with 128 bits of RAM.

This microcontroller supports a SPI interface type facilitating serial communications and includes 33 programmable I/O pins allowing extensive connectivity options for peripherals. It operates with a supply voltage ranging between 2 volts minimum and 5.5 volts maximum, making it suitable for various power scenarios with a power dissipation limit of 800 milliwatts.

The device is engineered to withstand environmental extremes with a wide operating temperature range from -40 degrees Celsius to +85 degrees Celsius. It incorporates 14 10-bit analog-to-digital converters providing precise conversion for analog inputs and bolsters functionality via 2 analog comparators and 3 timers, enabling accurate timing and control in embedded system designs.

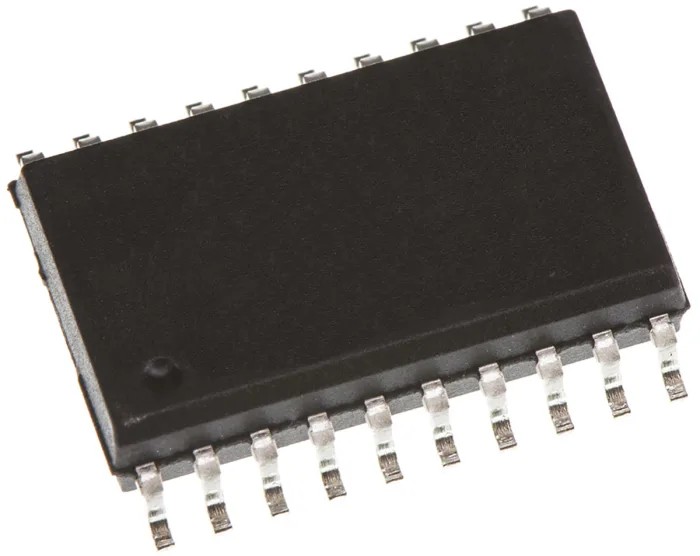

Physically, the microcontroller measures 12.8 mm in length, 7.5 mm wide, and 2.35 mm in height, fitting standard SOIC footprints for surface-mount technology assembly. It is ideal for industrial, automation, communications, and consumer electronics applications where compact size and efficient performance are critical.

Offers 8-bit data bus width and 256 bytes program memory size. Equipped with SPI interface for serial communication. Wide operating voltage range from 2V to 5.5V with 800mW max power dissipation. Operates over -40°C to 85°C temperature range.

Includes 33 programmable I/Os and 3 timers. Includes 14 10-bit ADCs and 2 analog comparators. Compact 20-pin SOIC surface mount package.

Choose Microchip PIC16HV785-I/SO for reliable and efficient microcontroller solutions in embedded systems. Explore our range of Microchip Microcontrollers and components for industrial and commercial electronics projects at EnvMart.
