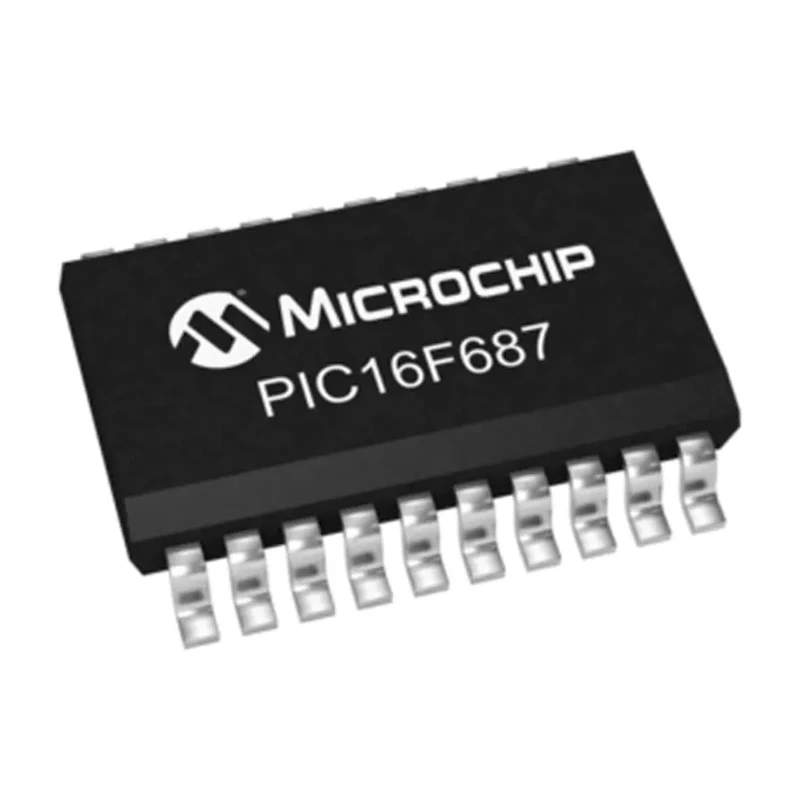

Microchip 8 bit PIC Microcontroller PIC16F687-I/SO, 20 MHz Clock, 3.5kB FLASH Memory, 20-Pin SOIC Package
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2.35mm |
| Length | 12.8mm |
| Model | PIC16F687-I/SO |
| Width | 7.5mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 128bit |
| Standards/Approvals | RoHS |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 3.5kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 36 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 8bit |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 12 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
| Microchip, 8 bit PIC, PIC16F Microcontroller, 20 MHz FLASH, 20-Pin SOICBrand | Microchip |
Key Features
- Operates up to 20 MHz with efficient 8-bit PIC architecture.
- 3.5kB programmable FLASH memory offers robust storage for embedded applications.
- Includes 36 programmable I/O pins suitable for flexible interfacing.
- Provides 12 channels of 10-bit ADC for precise analog input processing.
- Stable operation over a wide temperature range from -40°C to 85°C.
- Two analogue comparators and one 5-bit DAC included onboard.
- Supports Power-On Reset, Brown-Out Reset and Watchdog Timer for reliability.
- Compact dimensions of 12.8 mm length, 7.5 mm width, and 2.35 mm height.
Product Description
Microchip PIC16F687-I/SO is an 8 bit PIC microcontroller featuring a maximum clock frequency of 20 MHz and a program memory size of 3.5kB FLASH. Designed to operate between -40°C and 85°C, it is suitable for a wide range of industrial, laboratory, and commercial embedded applications requiring reliable and flexible control.
This microcontroller is housed in a 20-pin SOIC surface-mount package, making it suitable for space-conscious PCB designs. It incorporates Microchip's RISC architecture with an 8-level deep hardware stack supporting 35 instruction sets to deliver efficient performance up to 5 MIPS.
The device offers 36 programmable input/output pins allowing extensive interfacing options. Integrated peripherals include 12 channels of 10-bit analog-to-digital converters (ADC) for precise input signal measurement, two analogue comparators, and one 5-bit digital-to-analog converter (DAC), which enhance its versatility for measurement and control tasks.
Additional features include Power-On Reset (POR), Brown-Out Reset (BOR), Watchdog Timer (WDT), and In-Circuit Serial Programming (ICSP) to facilitate development and enhance reliability in challenging operational environments. The device supports a supply voltage range from 1.8V to 5.5V with a maximum power dissipation of 800mW, making it energy efficient for embedded system designs.
This microcontroller complies with RoHS directives, ensuring reduced hazardous substances and environmental impact. Typical application areas include industrial automation, consumer electronics, automotive control systems, and general embedded development projects.
Operates up to 20 MHz with 8-bit RISC architecture. 3.5kB program memory with FLASH type storage. 36 programmable I/Os for flexible interfacing options. 12-channel 10-bit ADCs ideal for analog input conversions. Onboard peripherals enhance control and measurement capabilities.
Robust operating temperature range from -40 to 85 degrees Celsius. Compact SOIC 20-pin packaging for efficient PCB layouts. Low power consumption with up to 800mW max power dissipation. Compliant with RoHS environmental standards.
Explore the comprehensive range of Microchip PIC Microcontrollers at EnvMart, perfect for your next electronics project or industrial control system.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz.
It features a program memory size of 3.5kB FLASH.
The operating temperature range is from -40°C to 85°C.
This microcontroller includes 36 programmable I/O pins.
It is housed in a 20-pin SOIC surface-mount package.
The PIC16F687-I/SO has 12 channels of 10-bit ADC for precise analog input processing.
The maximum power dissipation is 800mW.
It supports a supply voltage range from 1.8V to 5.5V.
It includes two analogue comparators and one 5-bit DAC onboard.
The dimensions are 2.35 mm in height, 12.8 mm in length, and 7.5 mm in width.
This microcontroller complies with RoHS directives, ensuring reduced hazardous substances.
It is suitable for applications in industrial automation, consumer electronics, automotive control systems, and general embedded development projects.
