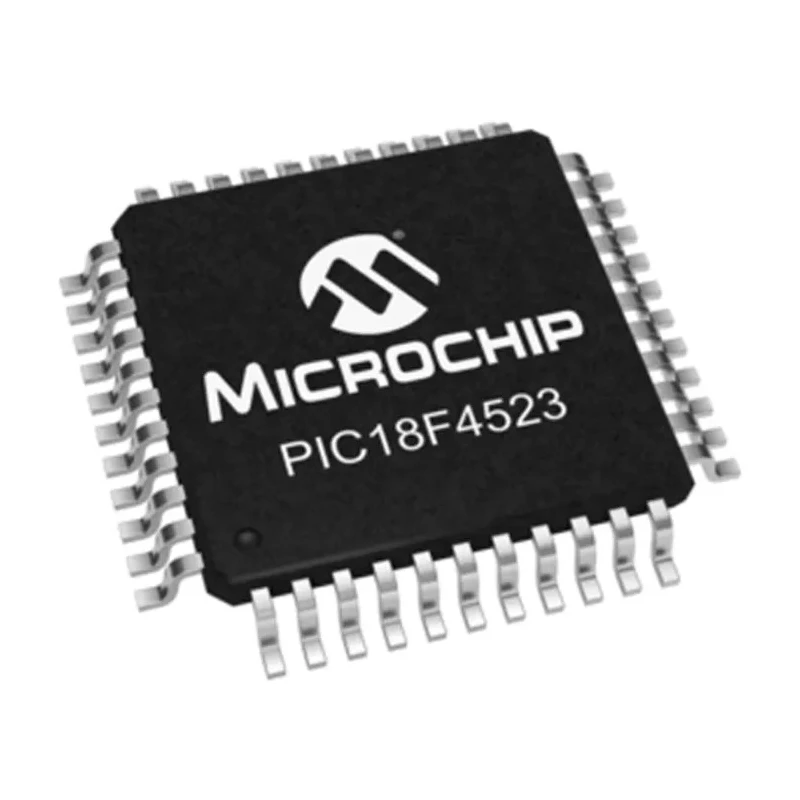

Microchip 8 bit PIC Microcontroller 40 MHz, 32 kB Program Memory, 256B FLASH, 44-Pin TQFP PIC18F4523-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | PIC18F4523-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 1.54kB |
| Pin Count | 44 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 32, 256kB |
| Maximum Clock Frequency | 40MHz |
| Number of Programmable I/Os | 36 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 32kB |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 13 x 12 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates at a maximum speed of 40 MHz.
- Features 32 kB of program memory and 1.54 kB RAM.
- Includes 36 programmable input/output pins for versatile interfacing.
- Equipped with 13 channels of 12-bit ADC for analog signal processing.
- Low power consumption with nanoWatt technology.
- Operating voltage ranges from 2V to 5.5V ensuring flexibility.
- Compact 44-pin TQFP package with 10 mm x 10 mm dimensions.
- Functions within an operating temperature range of -40°C to 85°C.
Product Description
Microchip PIC18F4523-I/PT is a high-performance 8-bit PIC microcontroller offering a maximum clock speed of 40 MHz and 32 kB of FLASH program memory. It comes in a compact 44-pin TQFP surface mount package measuring 10 mm in length and width with a height of 1.05 mm, making it suitable for various embedded system applications.
This MCU integrates 36 programmable I/O pins and 13 channels of 12-bit analog-to-digital converters, imperative for accurate sensor interfacing in industrial, automotive, and consumer electronics sectors. Featuring nanoWatt technology, it ensures low power consumption, ideal for battery-powered designs.
The PIC18F4523-I/PT supports a voltage supply range from 2V to 5.5V, ensuring compatibility with diverse power sources. It offers advanced functionality such as In-Circuit Serial Programming (ICSP) and debugging to streamline development cycles.
Additional peripherals include multiple timers (one 8-bit and three 16-bit), master synchronous serial port supporting SPI and I2C protocols, enhanced USART communication, and two analog comparators enhancing its versatility in signal control and processing.
Designed for robust performance, this microcontroller operates reliably within temperature extremes of -40°C to 85°C and offers a maximum power dissipation of 1W. It is based on the RISC architecture with a 31-level hardware stack and supports 75 instructions (83 with extended set enabled), enabling efficient software execution.
This device is especially suited for industrial control, automotive electronics, water treatment systems, laboratory equipment, and communication interfaces. Operates at 40 MHz for high-speed processing. 32 kB flash memory with 1.54 kB RAM.
Wide supply voltage range: 2V to 5.5V. Low power nanoWatt technology for efficient energy use. 44-pin TQFP package for easy surface mounting. Advanced timers and serial communication interfaces included. Operating temperature range from -40°C to 85°C for harsh environments.
Explore the Microcontroller category for more advanced and reliable embedded solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 40 MHz.
It features 32 kB of FLASH program memory.
This microcontroller includes 36 programmable input/output pins for versatile interfacing.
The operating voltage ranges from 2V to 5.5V, allowing compatibility with various power sources.
It operates reliably within a temperature range of -40°C to 85°C.
This model is housed in a compact 44-pin TQFP (Thin Quad Flat Package) package.
It is equipped with 13 channels of 12-bit analog-to-digital converters for analog signal processing.
This microcontroller has a RAM size of 1.54 kB.
It supports master synchronous serial port communication using SPI and I2C protocols, along with enhanced USART communication.
The maximum power dissipation for this model is 1W.
This microcontroller includes four timers: one 8-bit and three 16-bit timers.
It is based on the RISC (Reduced Instruction Set Computing) architecture.
