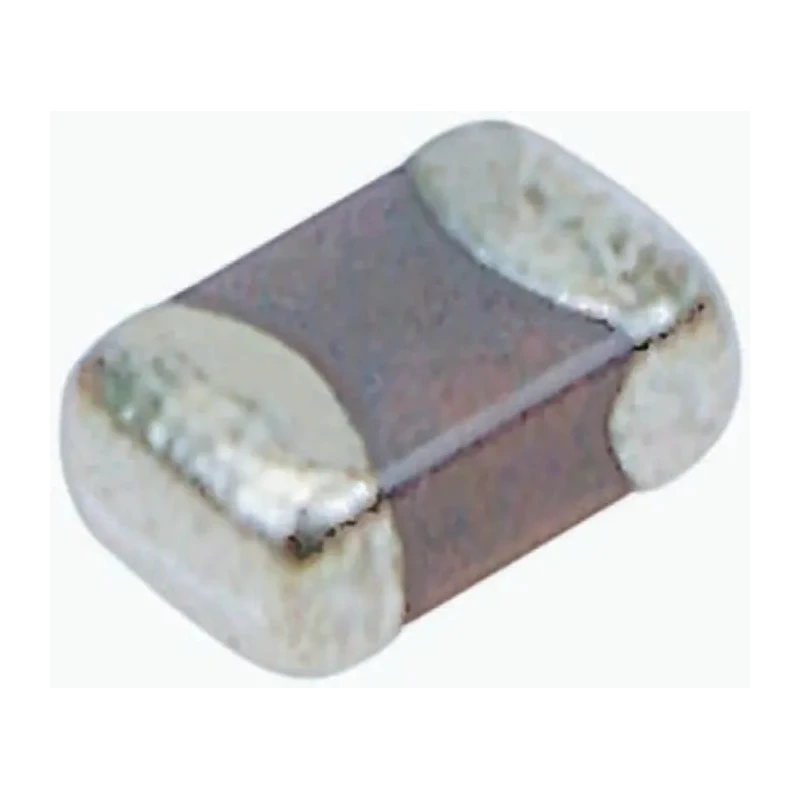

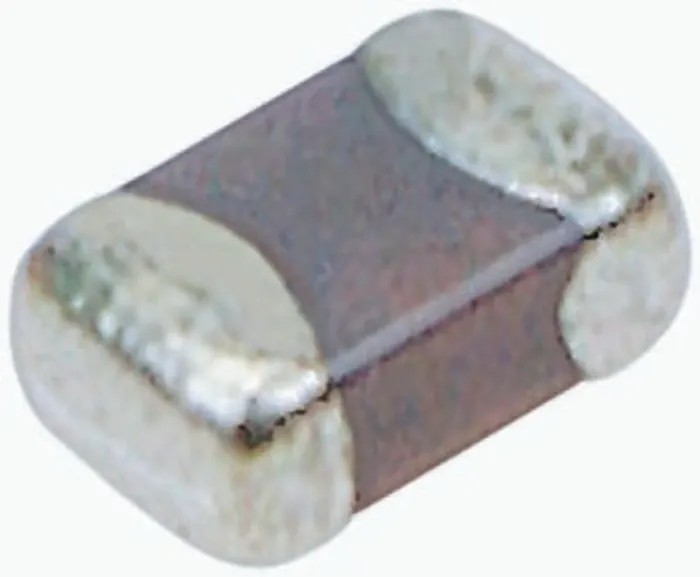

KYOCERA AVX 1 nF Multilayer Ceramic Capacitor 100V dc Surface Mount X7R Dielectric ±10 % Tolerance 0805 08051C102KAT2A

Free Delivery in India | Lowest Global Shipping Charges

KYOCERA AVX 1 nF Multilayer Ceramic Capacitor 100V dc Surface Mount X7R Dielectric ±10 % Tolerance 0805 08051C102KAT2A

Name: KYOCERA AVX 1 nF Multilayer Ceramic Capacitor 100V dc Surface Mount X7R Dielectric ±10 % Tolerance 0805 08051C102KAT2A
Brand: KYOCERA AVX
SKU: 159482



Category Multilayer Ceramic Capacitors Brand KYOCERA AVX Condition New

Specifications

Country of Origin	India
Voltage	100V dc
Brand	KYOCERA AVX
Height	0.94mm
Length	2.01mm
Model	08051C102KAT2A
Packaging	Reel
Width	1.25mm
Mount Type	Surface
Series	Standard
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±10 %
Capacitance	1nF
Minimum Operating Temperature	-55°C
Package/Case	0805
Dielectric	X7R

Key Features

This capacitor uses X7R dielectric material suitable for temperature stable applications.
Standard 0805 package size with dimensions of 2.01mm length, 1.25mm width, and 0.94mm height.
Operating temperature range from -55°C to 125°C ensures reliability in varying thermal conditions.
Package supplied on reel format optimized for automated assembly processes.
Termination is surface mount type with nickel barrier and plated tin coating for reliable soldering.
Commonly used in high frequency power converters, SMPS resonators, and high voltage coupling applications.
Capacitance change within ±15% across rated temperature range, characteristic of EIA Class II materials.

Product Description

KYOCERA AVX 08051C102KAT2A is a high-quality 1 nF multilayer ceramic capacitor designed for surface mount applications operating at up to 100V dc. It features X7R dielectric, providing stability within ±10 % tolerance and reliable performance across a broad temperature range from -55°C to 125°C. The 0805 (2.01mm x 1.25mm x 0.94mm) package is ideal for compact circuit designs.

This capacitor belongs to the AVX 0805 MLCC series and utilizes temperature stable X7R formulations, categorized as EIA Class II material, making it well-suited for applications requiring moderate capacitance stability. It also benefits from low equivalent series resistance (ESR), which is advantageous in high frequency environments.

The nickel barrier termination covered with plated tin ensures strong solder joints compliant with surface mount technology. Typical uses include snubbers in high frequency power converters, resonators in switched mode power supplies (SMPS), and high voltage coupling or DC blocking components.

The product is packaged on reels to facilitate efficient assembly line insertion, supporting modern automated manufacturing processes. This standard series component does not conform to specific automotive standards but offers robust performance for commercial and industrial electronic designs.

1 nF capacitance with ±10 % tolerance for precise charge storage. Rated for 100V dc with stable dielectric performance over temperature. Surface mount 0805 package compatible with automated assembly. X7R dielectric ensures temperature stability suitable for many industrial applications.

Low ESR beneficial for noise reduction and high-frequency operation. Operating temperature range from -55°C to 125°C for flexible usage conditions. Nickel barrier, plated tin terminations for strong solderability. Reel packaging designed for automated machinery integration.

This capacitive component serves a wide range of industries including electronics manufacturing, telecommunications, industrial controls, and power management systems. For more high-performance passive components, explore the MLCCs category at EnvMart.
