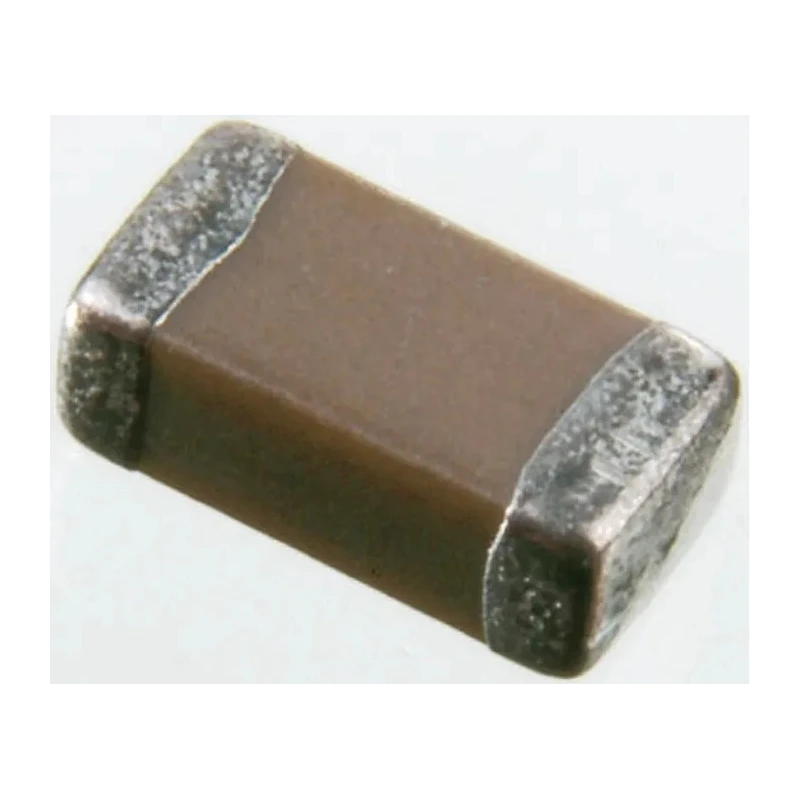

KYOCERA AVX 220 pF 500V dc ±5% Tolerance Surface Mount 1206 Multilayer Ceramic Capacitor 12067A221JAT2A

Free Delivery in India | Lowest Global Shipping Charges

KYOCERA AVX 220 pF 500V dc ±5% Tolerance Surface Mount 1206 Multilayer Ceramic Capacitor 12067A221JAT2A

Name: KYOCERA AVX 220 pF 500V dc ±5% Tolerance Surface Mount 1206 Multilayer Ceramic Capacitor 12067A221JAT2A
Brand: KYOCERA AVX
SKU: 159438



Category MLCCs - Multilayer Ceramic Capacitors Brand KYOCERA AVX Condition New

Specifications

Country of Origin	India
Voltage	500V dc
Brand	KYOCERA AVX
Height	1.27mm
Length	3.2mm
Model	12067A221JAT2A
Packaging	Reel
Width	1.6mm
Mount Type	Surface
Series	Standard
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±5 %
Capacitance	220pF
Minimum Operating Temperature	-55°C
Package/Case	1206
Dielectric	C0G

Key Features

Capacitance value is 220 pF with ±5% tolerance ensuring precise performance.
Rated for DC voltage up to 500 volts, suitable for high voltage applications.
Surface mount termination allows for automated PCB assembly processes.
Constructed with C0G dielectric for excellent thermal stability and low loss.
Compact 1206 package size with dimensions 3.2mm length, 1.6mm width, and 1.27mm height.
Operating temperature range from -55°C to 125°C makes it reliable under harsh conditions.
Standard series capacitor designed for general purpose applications in electronics.
Ideal for use in snubbers, high frequency power converters, and resonators in SMPS circuits.

Product Description

KYOCERA AVX 12067A221JAT2A is a high-quality multilayer ceramic capacitor with a capacitance of 220 pF and a DC voltage rating of 500 volts, designed for surface mount applications in electronics manufacturing.

Featuring a 1206 package size, this capacitor measures 3.2mm in length, 1.6mm in width, and 1.27mm in height, providing a compact footprint suitable for densely populated circuit boards.

The capacitor uses a C0G dielectric, known for its exceptional temperature stability and low losses, with a tolerance of ±5%, making it ideal for applications requiring precise capacitance over a wide temperature range from -55°C to 125°C.

This standard series MLCC is widely used in various industrial and commercial electronic applications including snubbers in high frequency power converters, resonators for switch mode power supplies (SMPS), and high voltage coupling or DC blocking circuits.

Capacitance: 220 pF with ±5% tolerance. Voltage rating: 500 V dc. Package: 1206 surface mount. Dielectric Type: C0G (NP0), temperature stable. Operating Temperature Range: -55°C to 125°C. Dimensions: 3.2mm length x 1.6mm width x 1.27mm height.

Termination: Surface Mount. Series Type: Standard.

This multilayer ceramic capacitor is suitable for electronics industries including industrial machinery, laboratory instruments, HVAC controls, telecommunications equipment, and consumer electronics.
