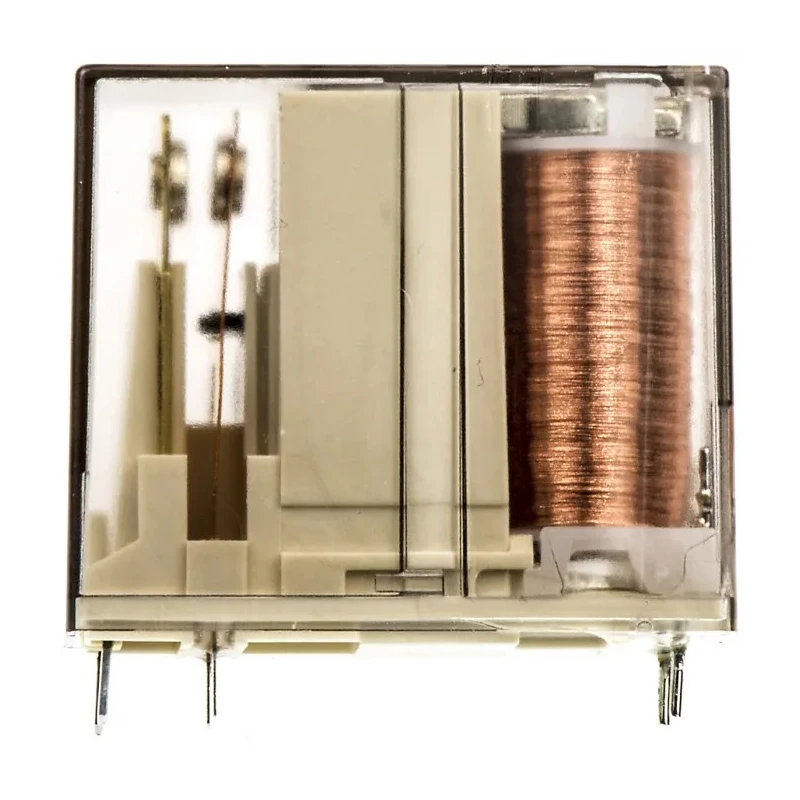

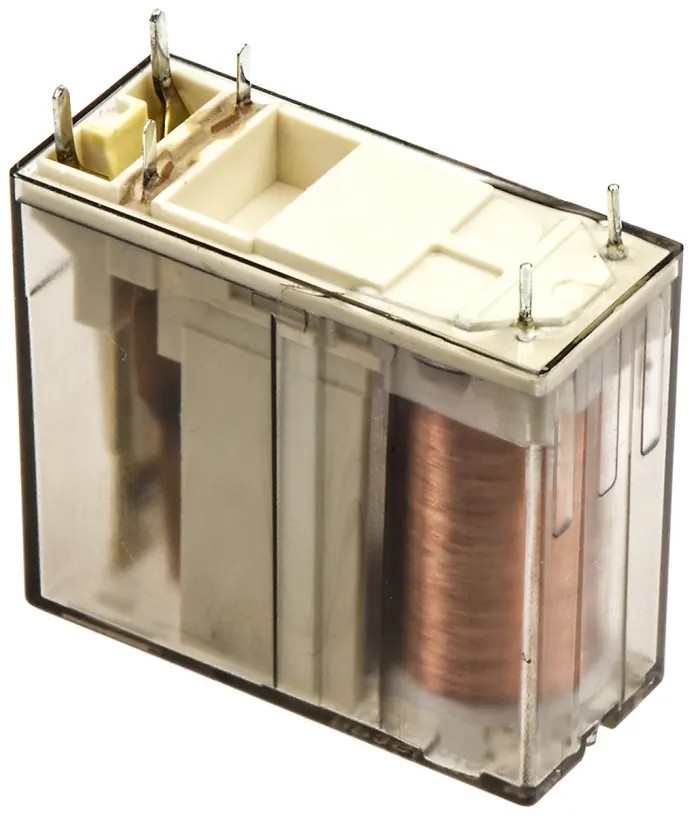

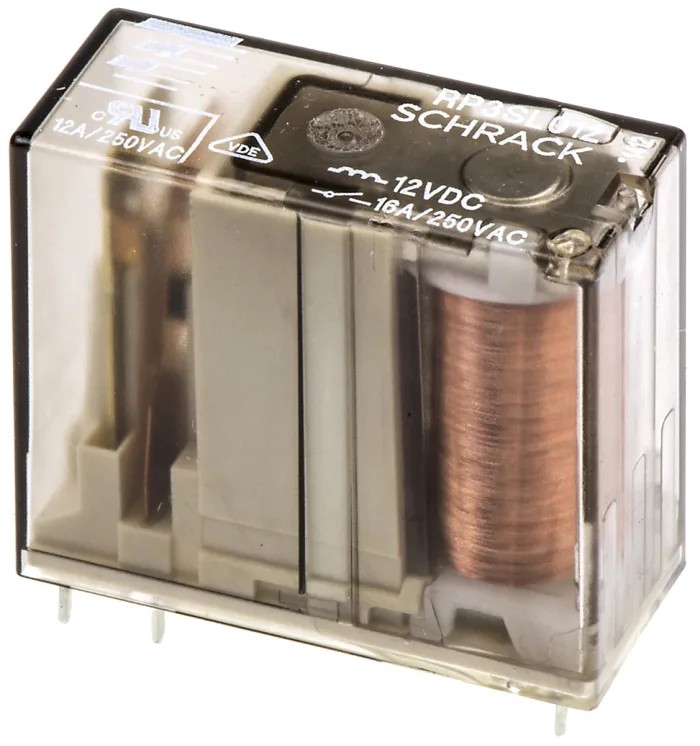

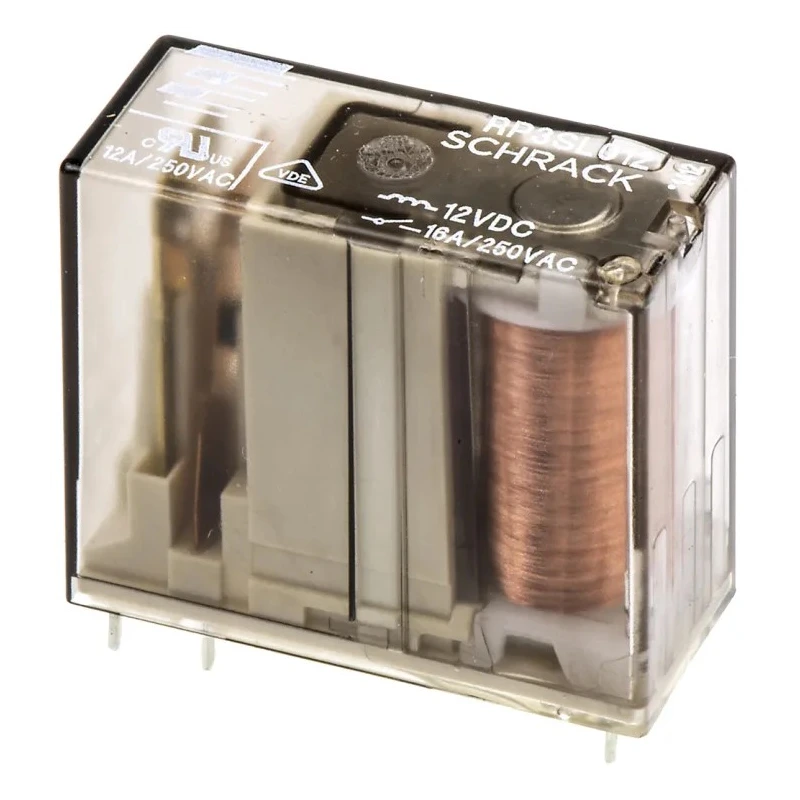

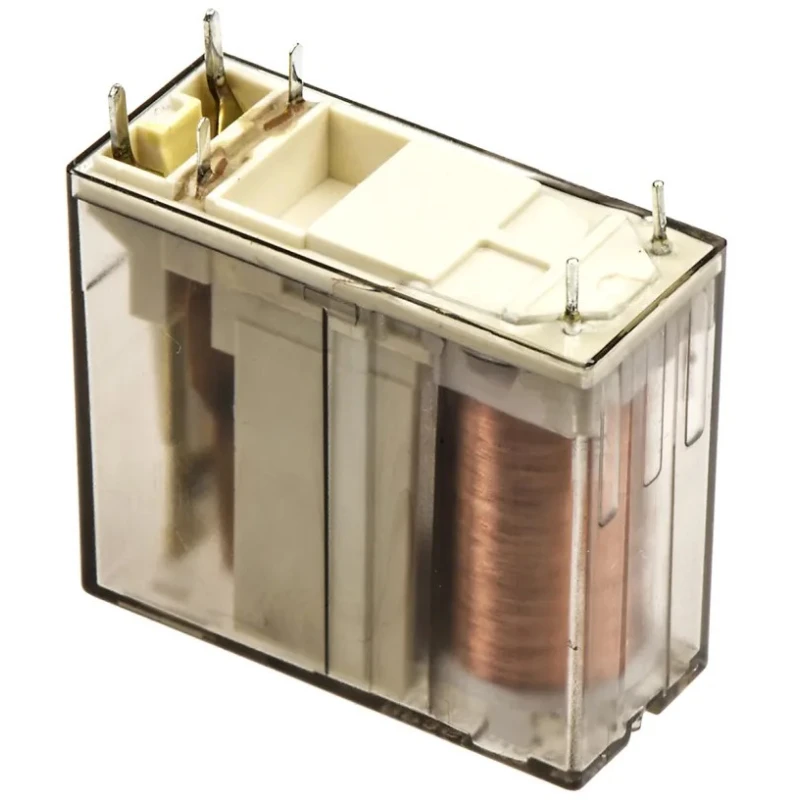

TE Connectivity PCB Non-Latching Relay 12V DC Coil, 16A Switching Current, SPST RP3SL012
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 25.5mm |
| Operating Temperature Range | -40 to +70°C |
| Length | 29mm |
| Model | RP3SL012 |
| Width | 12.6mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RP3SL |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | IEC 61810, RoHS |
| Coil Resistance | 270Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 500mW |
| Isolation Coil To Contact | 4000Vac |
| Creepage & clearance | 8 mm |
Key Features
- Designed for PCB mounting with solder terminal type.
- Supports switching AC voltage up to 400V AC.
- Operates within a temperature range of -40 to +70 degrees Celsius.
- Coil power consumption is 500 mW with coil resistance of 270 Ohms.
- Constructed with silver alloy contact material ensuring durability.
- Conforms to IEC 61810 standards and RoHS compliant.
- Offers isolation voltage of 4000 VAC between coil and contact.
- Applications include lighting control, timers, motor control, and home automation.
Product Description
TE Connectivity RP3SL012 PCB Non-Latching Relay features a 12V DC coil designed for precise and reliable switching in electrical and automation applications. This SPST relay supports a high switching current of 16A and can handle up to 400V AC switching voltage, making it suitable for various industrial and commercial circuits.
The relay's coil power is 500 milliwatts with a coil resistance of 270 ohms, optimized for low power consumption. It operates effectively within ambient temperatures ranging from -40°C to 70°C, ensuring performance stability in harsh environments.
Constructed with high-quality silver alloy contacts and a compact form factor measuring 29 mm in length, 12.6 mm in width, and 25.5 mm in height, this relay is ideal for PCB mounting with solder terminals. It includes an isolation voltage rating of 4000 VAC between coil and contacts to ensure safety and reduce interference.
Meeting IEC 61810 standards and RoHS compliance, the RP3SL012 relay guarantees environmental friendliness and adherence to international quality benchmarks. Its robust design supports applications such as lighting control systems, timers, motor drives, and home automation projects.
This relay series is known for a 120A, 20ms inrush current capability and 5 mm pin spacing for compatibility with DIN rail mounting sockets (sold separately). The product is manufactured in the Czech Republic and is designed to meet demanding industrial automation needs.
Designed for PCB mounting with solder terminal type. Supports switching AC voltage up to 400V AC. Operates within a temperature range of -40 to +70 degrees Celsius. Coil power consumption is 500 mW with coil resistance of 270 Ohms.
Constructed with silver alloy contact material ensuring durability. Compact relay size: length 29 mm, width 12.6 mm, height 25.5 mm. Conforms to IEC 61810 standards and RoHS compliant. Offers isolation voltage of 4000 VAC between coil and contact.
Applications include lighting control, timers, motor control, and home automation. Manufactured in Czech Republic ensuring quality and reliability. Browse the Electronics & Electricals category for more TE Connectivity relays and other related components for your industrial, laboratory, and automation applications on EnvMart.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a high switching current of 16A, making it suitable for various industrial and commercial applications.
The coil voltage for this relay is 12V DC, which is necessary for its operation.
It can handle switching AC voltage up to 400V AC, allowing it to be used in diverse electrical circuits.
The relay measures 29 mm in length, 12.6 mm in width, and 25.5 mm in height, making it compact for PCB mounting.
It operates effectively within a temperature range of -40°C to 70°C, ensuring performance stability in various environments.
The RP3SL012 features a Single Pole Single Throw (SPST) contact configuration, which is common for basic switching applications.
The coil power consumption is 500 mW, which helps optimize its low power requirements during operation.
It is constructed with silver alloy contact material, which contributes to its reliability and performance.
This relay conforms to IEC 61810 standards and is RoHS compliant, ensuring it meets international quality benchmarks.
The isolation voltage between the coil and contacts is rated at 4000 VAC, providing safety and reducing interference.
It is suitable for applications such as lighting control, timers, motor control, and home automation projects.
This model is designed for PCB mounting with solder terminals, making it easy to integrate into various electronic circuits.
