Carlo Gavazzi Threaded Barrel Inductive Proximity Sensor M30 x 1.5 PNP 36V AC/DC 22 mm Detection ICB30L50N22M1IO

Free Delivery in India | Lowest Global Shipping Charges

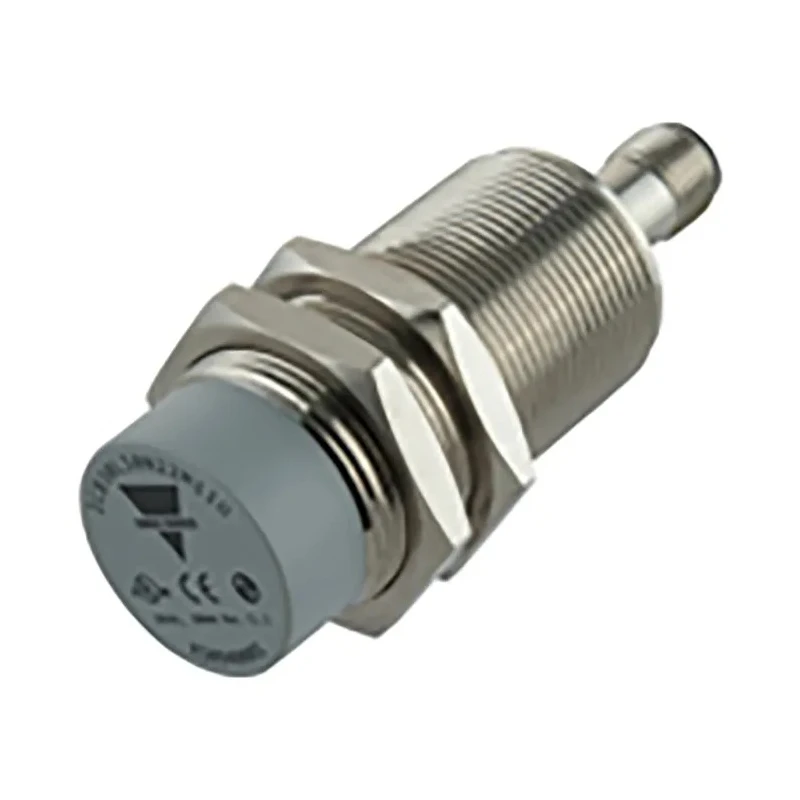

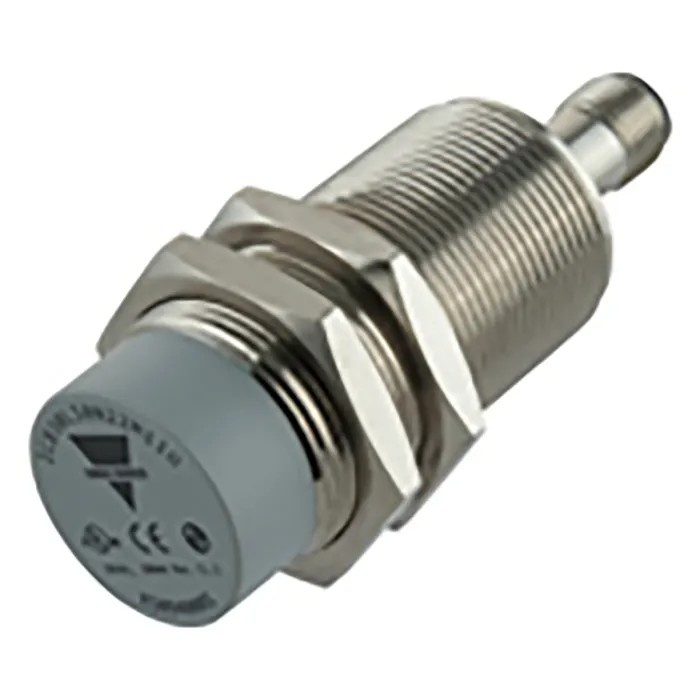

Carlo Gavazzi Threaded Barrel Inductive Proximity Sensor M30 x 1.5 PNP 36V AC/DC 22 mm Detection ICB30L50N22M1IO

Name: Carlo Gavazzi Threaded Barrel Inductive Proximity Sensor M30 x 1.5 PNP 36V AC/DC 22 mm Detection ICB30L50N22M1IO
Brand: Carlo Gavazzi
SKU: 158448
Price: 90.3 USD
Availability: InStock



Category Inductive Proximity Sensor Brand Carlo Gavazzi Condition New

Specifications

Country of Origin	Lithuania
Brand	Carlo Gavazzi
Length	87mm
Model	ICB30L50N22M1IO
IP Rating	IP67
Width	30mm
Mount Type	Non-Flush
Housing Material	Brass
Output type	PNP
Series	ICB
Maximum Operating Temperature	70°C
Thread Size	M30 x 1.5
Minimum Operating Temperature	-40°C
Switching Current	200mA
Terminal type	Connector
Body Style	Threaded Barrel
Maximum dc Voltage	36V dc
Shielding	Unshielded
Maximum Switching Frequency	1kHz
Standards/Approvals	RoHS, IEC, cULus, CSA, CE
Maximum Supply Voltage	36V ac
Maximum Detection	22mm
Temperature monitoring	over or under-run temperature alarms can be set
Adjustable sensing distance and hysteresis	sensing distance can be set to 33%, 50%, 75% or 100% of the maximum sensing distance

Key Features

Thread size of M30 x 1.5 offers standard industrial compatibility.
Robust brass housing with IP67 rating ensures suitability for harsh industrial environments.
Operates at supply voltage of up to 36V AC/DC with a max switching current of 200 mA.
Non-flush mount type suitable for flexible sensor placement in machines.
High switching frequency of 1 kHz supports fast detection in automation applications.
Adjustable sensing distance and hysteresis allow tailored sensing performance.
Features temperature monitoring with over and under run alarms.
Works effectively within operating temperature range from -40°C to 70°C.

Product Description

Carlo Gavazzi ICB30L50N22M1IO is a high-performance Threaded Barrel Inductive Proximity Sensor designed for industrial automation and control applications. Featuring a standard M30 x 1.5 thread size and a robust brass housing with IP67 protection, it ensures reliable operation even in challenging environmental conditions. The sensor’s PNP output and maximum detection distance of 22 mm make it ideal for metal object position-sensing and presence-detection tasks.

This sensor supports a maximum supply voltage of 36V AC or DC and can handle a switching current of up to 200 mA at a high switching frequency of 1 kHz, enabling precise and rapid detection in manufacturing or process control systems. The non-flush mount type provides versatile installation options.

Its configurable output via IO-Link technology (v1.1 compliant) allows operation in switching or IO-Link mode, with options for PNP/NPN or push-pull configurations, normally open or normally closed outputs, and timer functions like switch-on and switch-off delays. The sensing distance can be adjusted to 33%, 50%, 75%, or 100% of the maximum to suit specific application needs. Additionally, the sensor incorporates temperature monitoring capabilities, with alarms for over and under-run conditions, enhancing predictive maintenance opportunities.

Operating temperature ranges from -40°C to 70°C, suitable for diverse industrial settings. The unshielded sensor design is optimized for detecting metallic targets, making it particularly useful for rotational speed monitoring, positioning tasks, and object detection in automated production lines.

Manufactured in Lithuania, this sensor meets international standards including RoHS, IEC, cULus, CSA, and CE, ensuring compliance and quality assurance for industrial applications.

Thread size: M30 x 1.5. Body material: Brass with IP67 protection. Output: PNP, 200 mA switching current. Voltage: 36V AC/DC supply voltage. Maximum detection distance: 22 mm. Switching frequency: 1 kHz. Operating temperature: -40°C to 70°C.

Non-flush mount, unshielded design. Adjustable sensing distance and hysteresis. Temperature monitoring with alarm functions.

This Inductive Proximity Sensor is ideal for industrial, manufacturing, and automation sectors requiring robust and precise metal detection solutions. Explore more Carlo Gavazzi sensors in the EnvMart catalog for complementary automation products.
