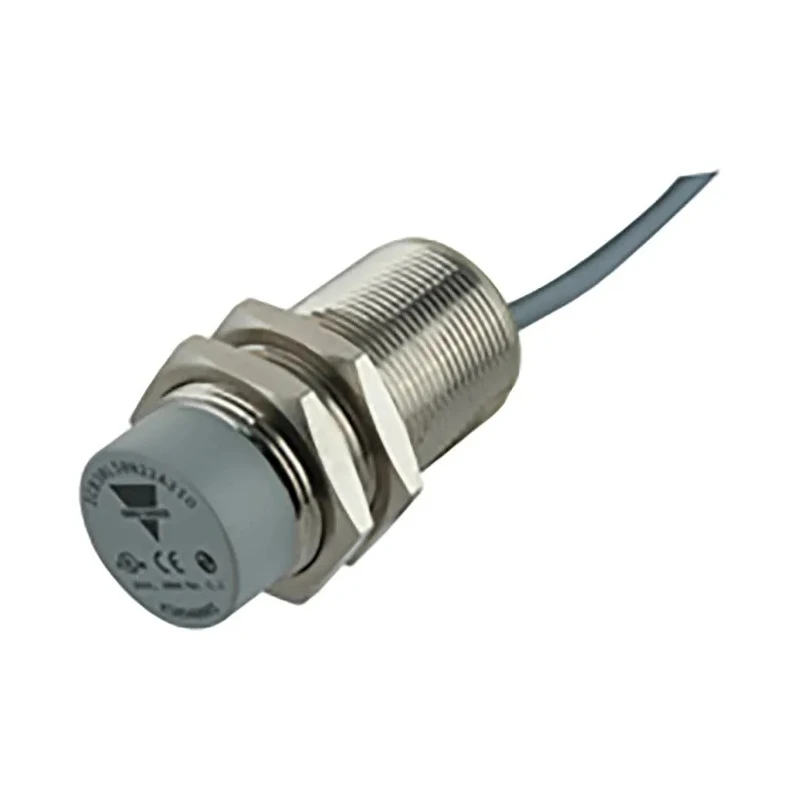

Carlo Gavazzi Threaded Barrel Inductive Proximity Sensor M30 x 1.5 PNP 36V AC/DC 200mA 22mm Detection ICB30L50N22A2IO

Free Delivery in India | Lowest Global Shipping Charges

Carlo Gavazzi Threaded Barrel Inductive Proximity Sensor M30 x 1.5 PNP 36V AC/DC 200mA 22mm Detection ICB30L50N22A2IO

Name: Carlo Gavazzi Threaded Barrel Inductive Proximity Sensor M30 x 1.5 PNP 36V AC/DC 200mA 22mm Detection ICB30L50N22A2IO
Brand: Carlo Gavazzi
SKU: 158447
Price: 90.62 USD
Availability: InStock



Category Inductive Proximity Sensor Brand Carlo Gavazzi Condition New

Specifications

Country of Origin	Lithuania
Brand	Carlo Gavazzi
Length	64mm
Model	ICB30L50N22A2IO
IP Rating	IP67
Width	30mm
Mount Type	Non-Flush
Housing Material	Brass
Output type	PNP
Series	ICB
Maximum Operating Temperature	70°C
Thread Size	M30 x 1.5
Minimum Operating Temperature	-25°C
Switching Current	200mA
Terminal type	Cable
Body Style	Threaded Barrel
Maximum dc Voltage	36V dc
Shielding	Unshielded
Maximum Switching Frequency	1kHz
Standards/Approvals	cULus, CE, CSA, IEC, RoHS
Maximum Supply Voltage	36V ac
Maximum Detection	22mm
Temperature monitoring	over or under-run temperature alarms can be set
Adjustable sensing distance and hysteresis	sensing distance can be set to 33%, 50%, 75% or 100% of the maximum sensing distance

Key Features

This sensor features a threaded barrel body style with M30 x 1.5 thread size for secure mounting.
It has an IP67 rating for protection against dust and water ingress.
The device is configurable via IO-Link v1.1 allowing output type and timer function adjustments.
Constructed with brass housing, it withstands operating temperatures from -25°C to 70°C.
The maximum switching frequency is 1 kHz and switching current is 200 mA.
Unshielded design supports non-contact metal object detection in industrial automation.
Suitable for position sensing, presence detection, and rotational speed monitoring.
With adjustable sensing distance and hysteresis, it can be set to 33%, 50%, 75%, or 100% of maximum sensing distance.

Product Description

Carlo Gavazzi ICB30L50N22A2IO is a threaded barrel inductive proximity sensor designed for industrial automation and control applications. It features an M30 x 1.5 thread size and a threaded barrel body style, providing easy and secure mounting options.

Operating at a maximum supply voltage of 36V AC and DC, this sensor supports PNP output and has a maximum switching current of 200 mA. The sensor can be fully configured via IO-Link v1.1, allowing users to select output types including PNP, NPN, or push-pull, and configure timer functions such as switch-on and switch-off delays. The sensing distance is adjustable to 33%, 50%, 75%, or 100% of the maximum 22 mm detection range, and hysteresis can also be set for stable sensing performance.

Constructed with a durable brass housing, it is built to operate reliably in harsh environments with an IP67 ingress protection rating. The sensor supports operating temperatures from -25°C to 70°C, making it suitable for diverse industrial conditions.

This model operates at a maximum switching frequency of 1 kHz and includes a temperature monitoring feature that triggers temperature alarms for over or under-run conditions, enhancing system safety and reliability.

Its unshielded design allows it to perform non-contact detection of metal objects, enabling position-sensing and presence-sensing tasks in automated manufacturing, water treatment, HVAC, and other commercial industrial environments. Particularly, its high operating frequency makes it ideal for rotational speed monitoring in machinery.

This sensor features a threaded barrel design with M30 x 1.5 thread size. It supports PNP output type configurable via IO-Link v1.1. The device is rated IP67 for dust and water protection suitable for industrial use. Adjustable sensing distance and hysteresis improve detection precision.

Durable brass housing ensures long-term operational reliability. Operating temperature range from -25°C to 70°C covers typical industrial environments. Maximum switching frequency of 1 kHz enables fast response in automation tasks.

Temperature monitoring alarms guard against thermal failures.
