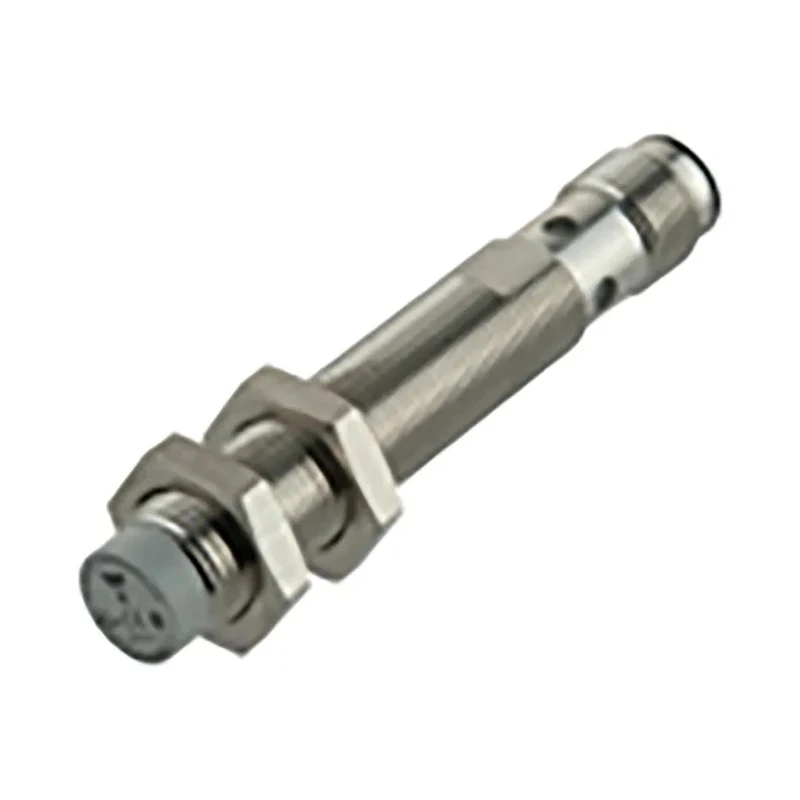

Carlo Gavazzi Threaded Barrel Inductive Proximity Sensor M12 x 1 PNP 36V AC/DC 8mm Detection ICB12L50N08M1IO

Carlo Gavazzi ICB12L50N08M1IO is a robust Threaded Barrel Inductive Proximity Sensor featuring an M12 x 1 thread size and 8 mm sensing distance. It supports PNP output type and operates at a maximum voltage of 36V AC/DC, handling switching currents up to 200mA.

This sensor features a brass housing with IP67 protection rating, ensuring excellent durability and resistance against dust and water ingress. The non-flush mount type with unshielded sensor face allows for precise detection in varied applications.

With a maximum switching frequency of 2kHz, this sensor is suitable for high-speed industrial automation tasks. Its configurable IO-Link v1.1 interface permits switching output modes to PNP, NPN, or push-pull, along with configurable timer functions like switch-on and switch-off delays.

The adjustable sensing distance and hysteresis can be set to 33%, 50%, 75%, or 100% of the maximum sensing range, allowing tailored sensing performance. It also includes temperature monitoring features, capable of setting alarms for over or under-run temperature conditions to ensure process safety.

Typical applications include non-contact detection of metal objects, presence sensing for manufacturing and process automation, and rotational speed monitoring thanks to its high-frequency switching capability.

This Inductive Proximity Sensor is an essential component for industries requiring reliable and accurate metal object sensing in challenging industrial environments, such as factory automation, robotics, material handling, and process control.

Explore more sensors and automation control products at EnvMart for optimized industrial solutions. The sensor features a threaded barrel body style with M12 x 1 thread size for secure mounting. It operates at a maximum supply voltage of 36V AC and 36V DC with a switching current of 200mA.

Equipped with an IP67 rated brass housing for dust and water resistance. Offers a maximum switching frequency of 2kHz, suitable for high-speed detection tasks. Features an unshielded sensor face and non-flush mounting type for versatile applications.

Operating temperature range from -40°C to 70°C to withstand harsh industrial environments. Output can be configured via IO-Link v1.1, allowing flexible PNP/NPN/push-pull modes and timer functions. Adjustable sensing distance and hysteresis improve detection accuracy and reliability.

The sensor includes temperature monitoring alarms for over or underrun conditions. Applications include non-contact metal object detection, position sensing, and rotational speed monitoring in manufacturing and automation.
