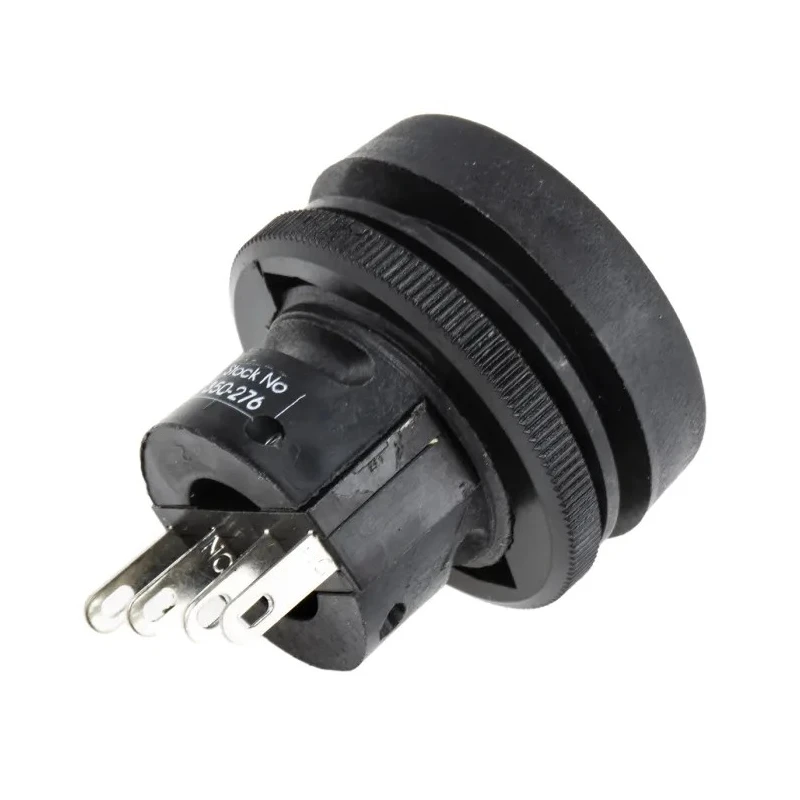

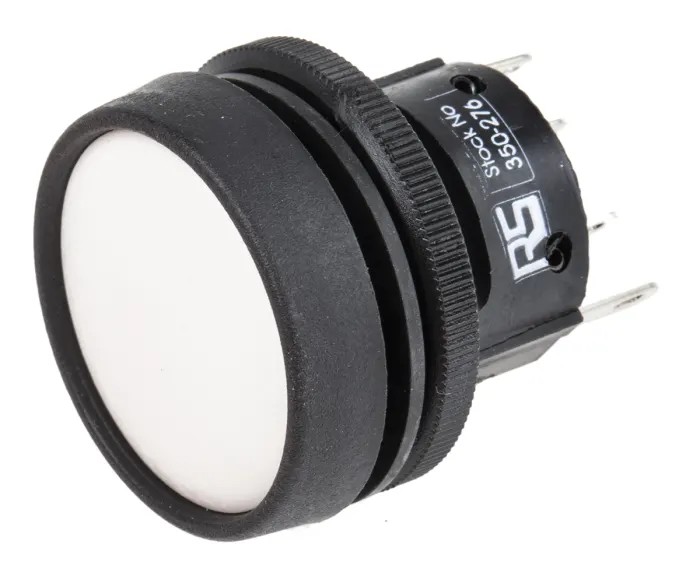

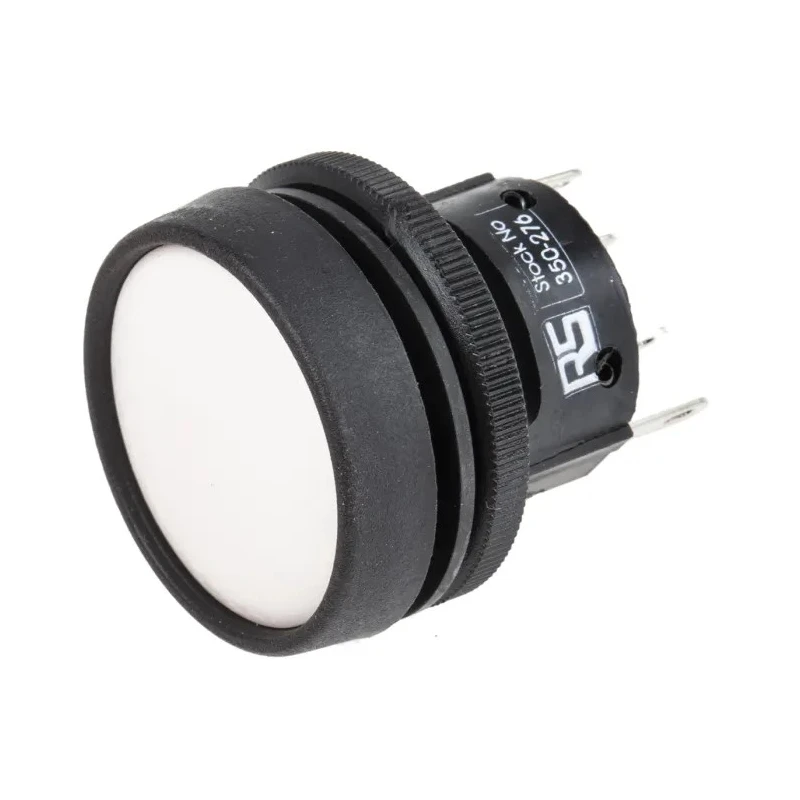

ITW Switches 76-91 Series Push Button Switch Momentary Panel Mount SPDT Clear LED IP67 22.5 mm Cutout 250 V 76-9111/439088

The ITW Switches 76-9111/439088 is a high-quality momentary push button switch designed for panel mounting applications requiring reliable on-off SPDT functionality. Rated for 250 V AC and DC with a contact current of 10 A, this switch supports demanding electrical environments.

The actuator is white and round, providing a clear visual indication. Its 22.5 mm panel cutout size enables easy flush mounting while maintaining an IP67 ingress protection rating, making it waterproof and dust tight according to BS5420 (IEC144) standards.

The durable body is constructed from flame retardant material meeting UL94-VO safety requirements. Operation temperature ranges from -40°C to 80°C, allowing use in harsh industrial, field equipment, dairy, mining, hydraulic vehicles, marine instrumentation, security call points, and car wash machinery environments.

This push button switch includes a locknut and sealing washer for secure and sealed installation. It meets CSA and UL approvals, ensuring compliance with recognized safety standards.

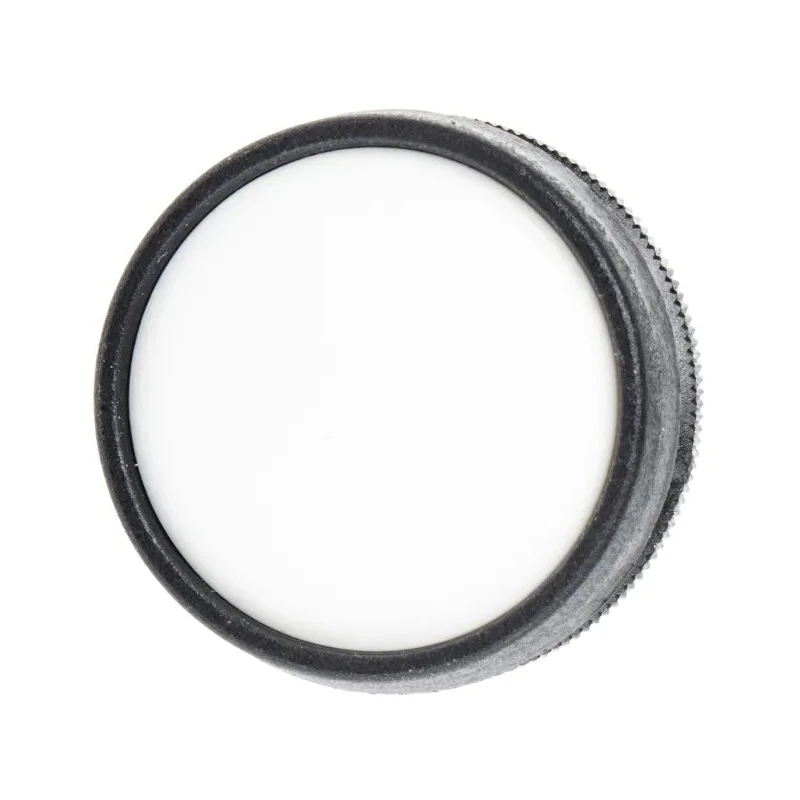

The switch features a white actuator color with a round style. It operates momentarily, making contact only while pressed. The panel cutout size is 22.5 mm for flush mounting. Rated for 250 V AC and DC voltage with a contact current of 10 A.

IP67 waterproof sealing ensures protection against dust and water. Designed for maximum operating temperature of 80°C and minimum of -40°C. The body is flame retardant to UL94-VO standard for safety. Includes locknut and sealing washer for secure installation.

Compliant with CSA and UL safety standards.

This momentary push button switch is ideal for industrial, electrical, automation, HVAC, and manufacturing applications requiring panel-mounted durable, waterproof switching technology.
