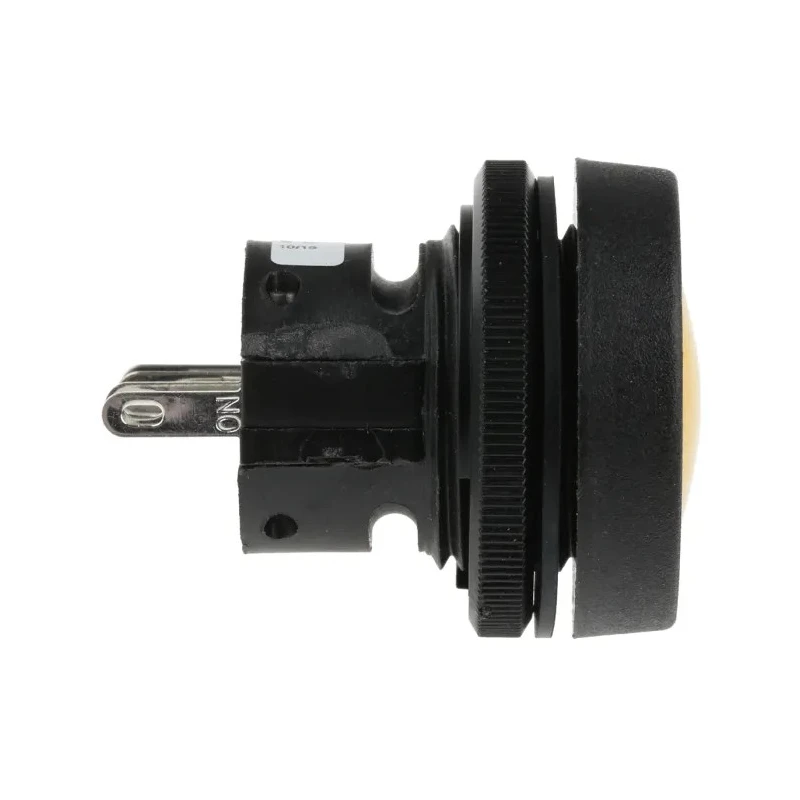

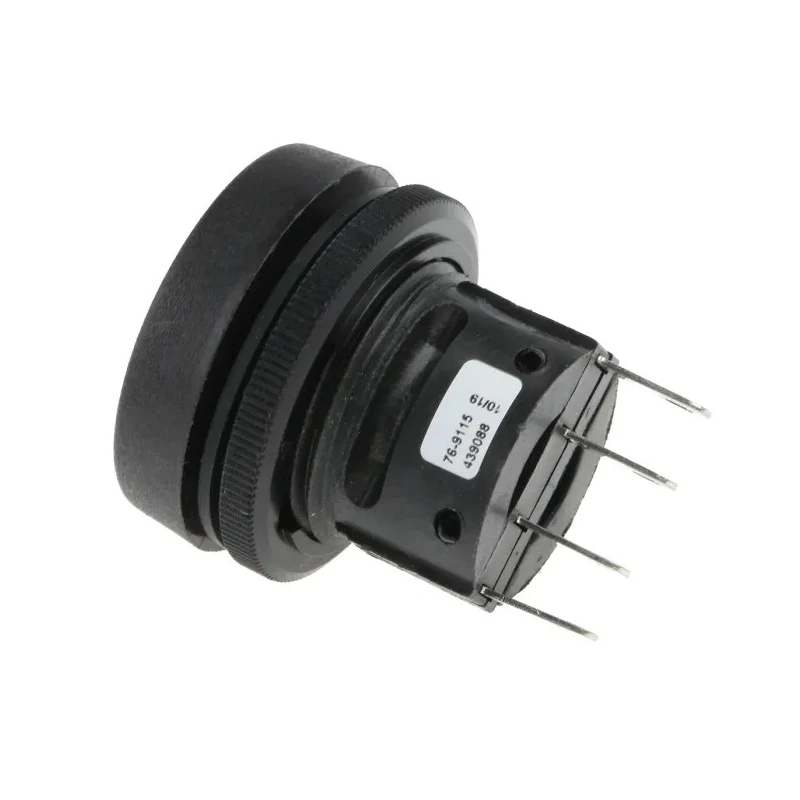

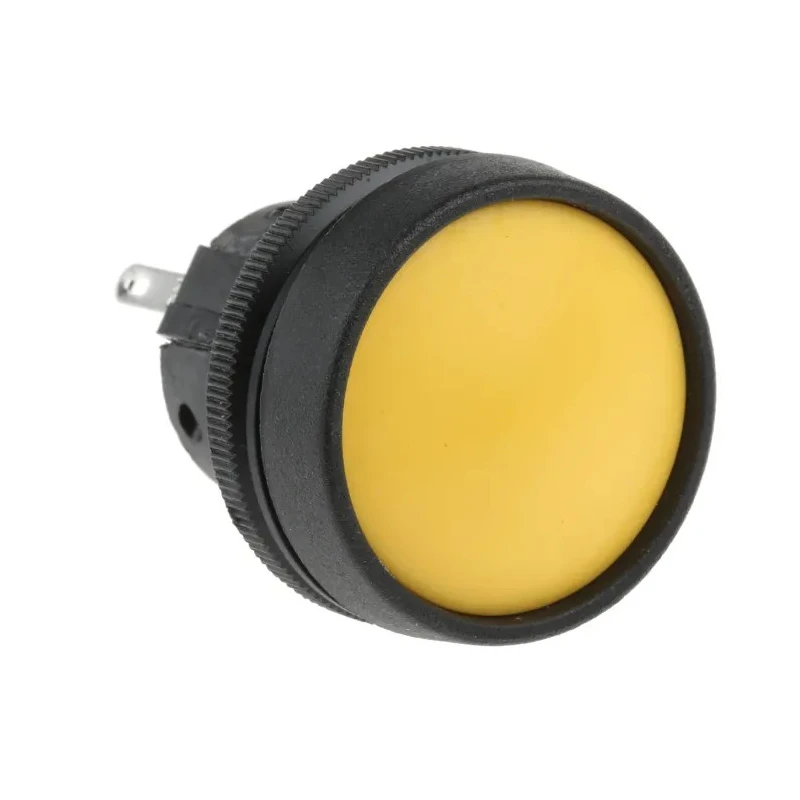

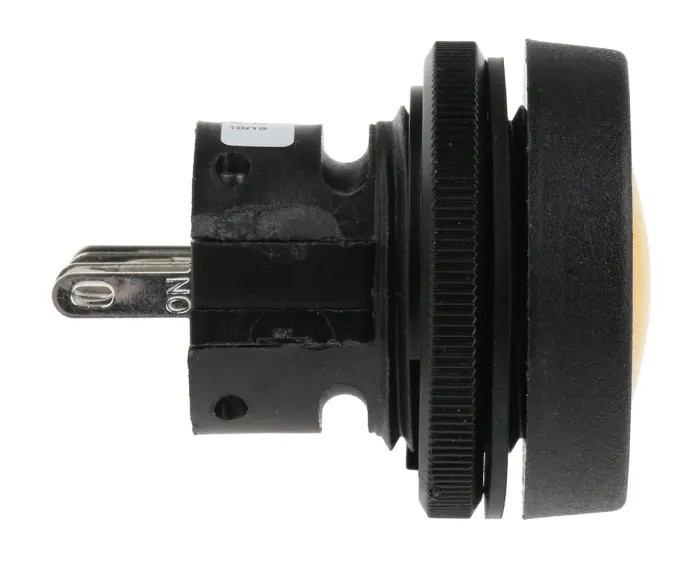

ITW Switches 76-91 Series Momentary Panel Mount Push Button Switch, Yellow Actuator, 22.5 mm Cutout, SPDT 76-9115/439088
Specifications
| Country of Origin | Belize |
|---|---|
| Brand | ITW Switches |
| Model | 76-9115/439088 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | 76-91 |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-Off |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 22.5 mm |
| Terminal type | Solder |
| Standards/Approvals | CSA, UL |
| Switch Operation | Momentary |
| Actuator Colour | Yellow |
| Contact DC Voltage | 250V |
| Actuator Style | Round |
| Switch Contact Current | 10A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch operates momentarily, making electrical contact only while pressed.
- It has a single pole double throw (SPDT) contact configuration.
- Equipped with a clear LED and features IP67 waterproof sealing.
- Rated for operation between -40°C and 80°C for harsh environments.
- Capable of handling 10A contact current at 250 V AC and 250 V DC.
- Constructed with solder terminal type designed for panel mounting.
- Complies with CSA and UL standards ensuring safety and reliability.
- Robust flame retardant body with IP67 rating approved to BS5420 (IEC144).
Product Description
ITW Switches 76-9115/439088 is a momentary push button switch from the 76-91 series designed for panel mounting with a 22.5 mm cutout. Featuring a yellow round actuator, this push button switch operates only while the button is pressed, returning to the off position upon release. It has a single pole double throw (SPDT) contact configuration and is equipped with a clear LED for indication.
This push button switch is engineered for demanding industrial and harsh environmental applications, with an IP67 waterproof rating that protects against water ingress to BS5420 (IEC144) standards. The body is flame retardant to UL94-VO, providing enhanced safety.
The switch is suitable for use across a wide temperature range from -40°C to 80°C and supports a contact current of 10A at 250 V AC and 250 V DC ratings, ensuring robust electrical performance. The solder-type terminals enable secure electrical connection and reliable mounting on panels with a maximum thickness of 4 mm.
Common industrial applications include field equipment, dairy processing, mining operations, hydraulic vehicles, marine instrumentation, exterior security call points, and car wash machinery. The robust construction and environmental sealing make it ideal for such harsh and demanding environments.
The switch features waterproof panel sealing to IP67 standards. The flexible design suits demanding environmental and industrial uses. Six actuator colors are available in the 76-91 series with this product featuring yellow.
Maximum panel thickness compatibility of 4 mm ensures versatile installation options. It is supplied with a locknut and sealing washer for secure mounting.
ITW Switches 76-9115/439088 complies with UL and CSA standards, confirming its quality and safety for electrical applications. This push button switch is a reliable component suited for industrial, manufacturing, HVAC, marine, agricultural, and commercial control applications.
