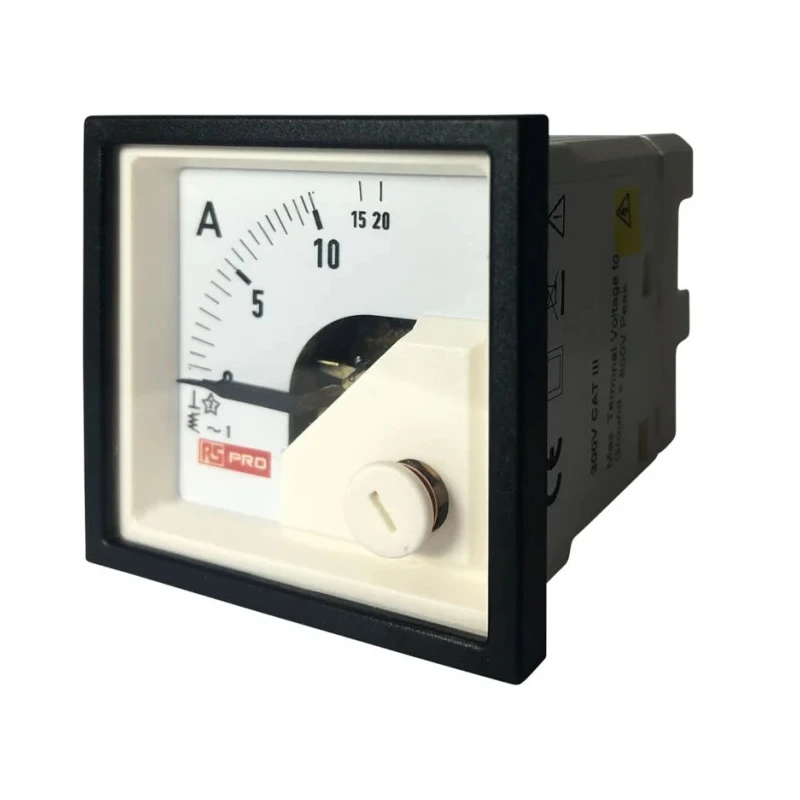

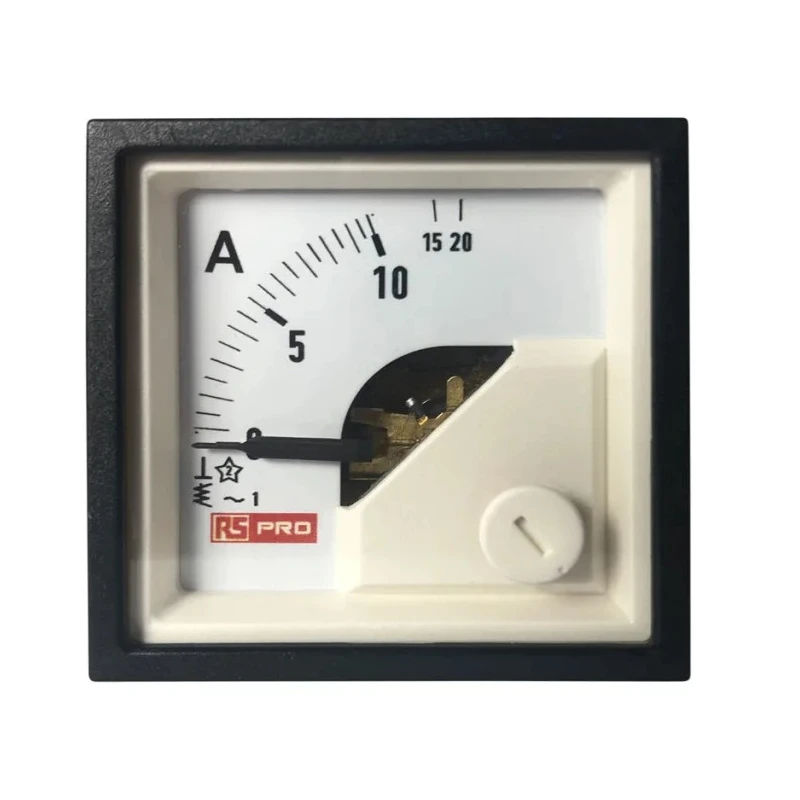

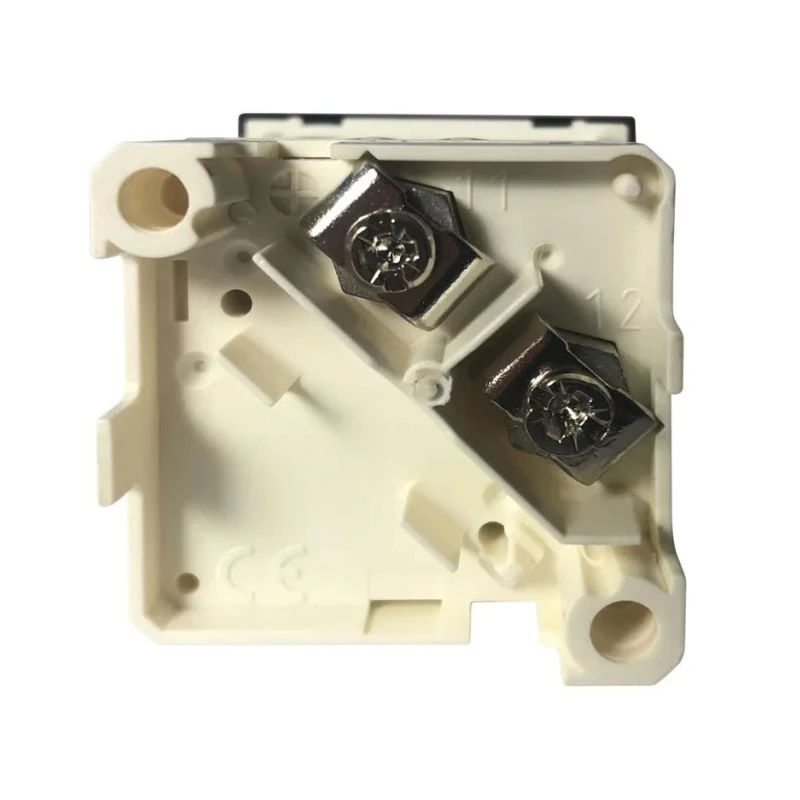

RS PRO Analogue Panel Ammeter 20 A AC, 45 mm x 45 mm, 1 % Meter Accuracy, Moving Iron 186-2422
Specifications
| Country of Origin | India |
|---|---|
| Relative Humidity | Less than 75% annual average (noncondensing) |
| Brand | RS PRO |
| Model | 186-2422 |
| Depth | 54mm |
| Series | RS PRO |
| Maximum Operating Temperature | 65°C |
| Current Type | AC |
| Pointer | Knife-edge type |
| Meter Accuracy | 1 % |
| Minimum Operating Temperature | -10°C |
| Shock Resistance | 15g for pulse duration of 11 milliseconds |
| Overload | 2 times nominal current (continuous) |
| Standards/Approvals | EN 61010, DIN IEC 61554, VDE 0100-410:2018-10, DIN 43802, DIN 43701, UL 94 V-0, 2014/30/EC, DIN 43807, 93/68/EEC, IEC51/DINEN60051, VDE / VDI 3540, DIN 43718, ISO 20653:2006-08, IEC 61010, DIN 46200/46282, 2014/35/EC, IEC 529 |
| Cutout Height | 45mm |
| Cutout Width | 45mm |
| Maximum Measurement | 600 V, 1000 A |
| Moving Element | Moving Iron |
| Maximum Ampere Value | 20 A |
| AC Ammeter nominal range | 100mA to 100A direct connection |
| Pointer deflection | 0° to 90° |
| VDE 0100-410 | 2018-10 approved |
| ISO 20653 | 2006-08 |
| Standards/ApprovalsEN 61010, DIN IEC 61554, VDE 0100-410 | 2018-10, DIN 43802, DIN 43701, UL 94 V-0, 2014/30/EC, DIN 43807, 93/68/EEC, IEC51/DINEN60051, VDE / VDI 3540, DIN 43718, ISO 20653:2006-08, IEC 61010, DIN 46200/46282, 2014/35/EC, IEC 529 |
Key Features
- The 45 mm x 45 mm square moulded polycarbonate case suits panel mounting in control and switchgear panels.
- Operating temperature range is -10°C to 65°C allowing use in industrial environments.
- Pointer is knife-edge type with 0° to 90° deflection for clear readings.
- Overload rating supports two times nominal current continuously for durability.
- Shock resistance withstands 15g pulses of 11 milliseconds for mechanical robustness.
- Suitable for AC current measurement from 100mA to 100A direct connection with scale calibrations down to 10%.
- Meters indicate true RMS values, substantially independent of waveform shape.
- Relative humidity tolerance is less than 75% annual average (noncondensing).
Product Description
RS PRO 186-2422 is a high-quality Analogue Panel Ammeter designed for accurate measurement of AC currents up to 20 A. It features a moving iron movement mechanism housed within a 45 mm x 45 mm moulded polycarbonate case, which is ideal for installation in control and switchgear panels within industrial machines and electrical automation systems.
The meter offers a 1 % accuracy rating with a knife-edge pointer that deflects from 0° to 90° for precise readings. It is designed to operate reliably across a temperature range from -10°C up to 65°C, catering to varied industrial environmental conditions.
This ammeter's scale is calibrated to measure current from 100 mA to 100 A and is capable of handling overloads up to two times the nominal current continuously, enhancing the device's durability. The moving iron element provides true RMS current measurement, ensuring reliable readings independent of waveform distortions.
Shock resistance of 15g for pulses of 11 milliseconds improves product resilience against mechanical stress. Additionally, the meter maintains proper operation under relative humidity levels below 75% (noncondensing), suitable for most industrial settings.
Certified against rigorous international standards such as EN 61010, DIN IEC 61554, UL 94 V-0, and CE marking, this ammeter meets both safety and electromagnetic compatibility regulations. It is rated IP52, providing protection against dust and dripping water.
This analogue panel meter supports frequencies between 15Hz and 400Hz, making it versatile for various AC measurement applications in industrial automation, electrical control panels, and process control systems.
The 45 mm x 45 mm cut-out panel size allows easy integration into standard DIN enclosures. The moulded polycarbonate casing ensures long-term durability and lightweight handling. Calibration scales support overloads up to X6 for motor inrush current measurement.
Ideal for industrial, manufacturing, HVAC, and electrical engineering applications where precise AC current monitoring is essential. Set contains the RS PRO Analogue Panel Ammeter 186-2422 unit as specified. Explore the extensive range of RS PRO Industrial Automation Systems and Control Devices for reliable and precise panel instrumentation solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ammeter can measure AC currents up to a maximum of 20 A.
It has a meter accuracy of 1 % for reliable readings.
The operating temperature range is from -10°C to 65°C, suitable for various industrial environments.
It supports overloads up to two times the nominal current continuously, enhancing durability.
It features a knife-edge type pointer that deflects from 0° to 90° for clear readings.
The cutout dimensions required for installation are 45 mm x 45 mm.
It has a shock resistance rating of 15g for pulse durations of 11 milliseconds.
It is certified against several standards, including EN 61010, DIN IEC 61554, and UL 94 V-0.
The relative humidity tolerance is less than 75% annual average (noncondensing).
The maximum voltage rating for this ammeter is 600 V.
It is suitable for applications in industrial automation, electrical control panels, and process control systems.
